Copyright © ViT rox All Rights Reserved . Algorithm Editor Interface 165
Copyright © ViTrox All Rights Reserved.
Status of Device Type
When the user click Fix Parameter, the A.I Technology will automatically fix the algorithm parameter,
and the status of parameter will show the amendment result after fix.
164
Note: User can click fix parameter in Status of Device type to amend the failure. It depends on the database of the algorithm

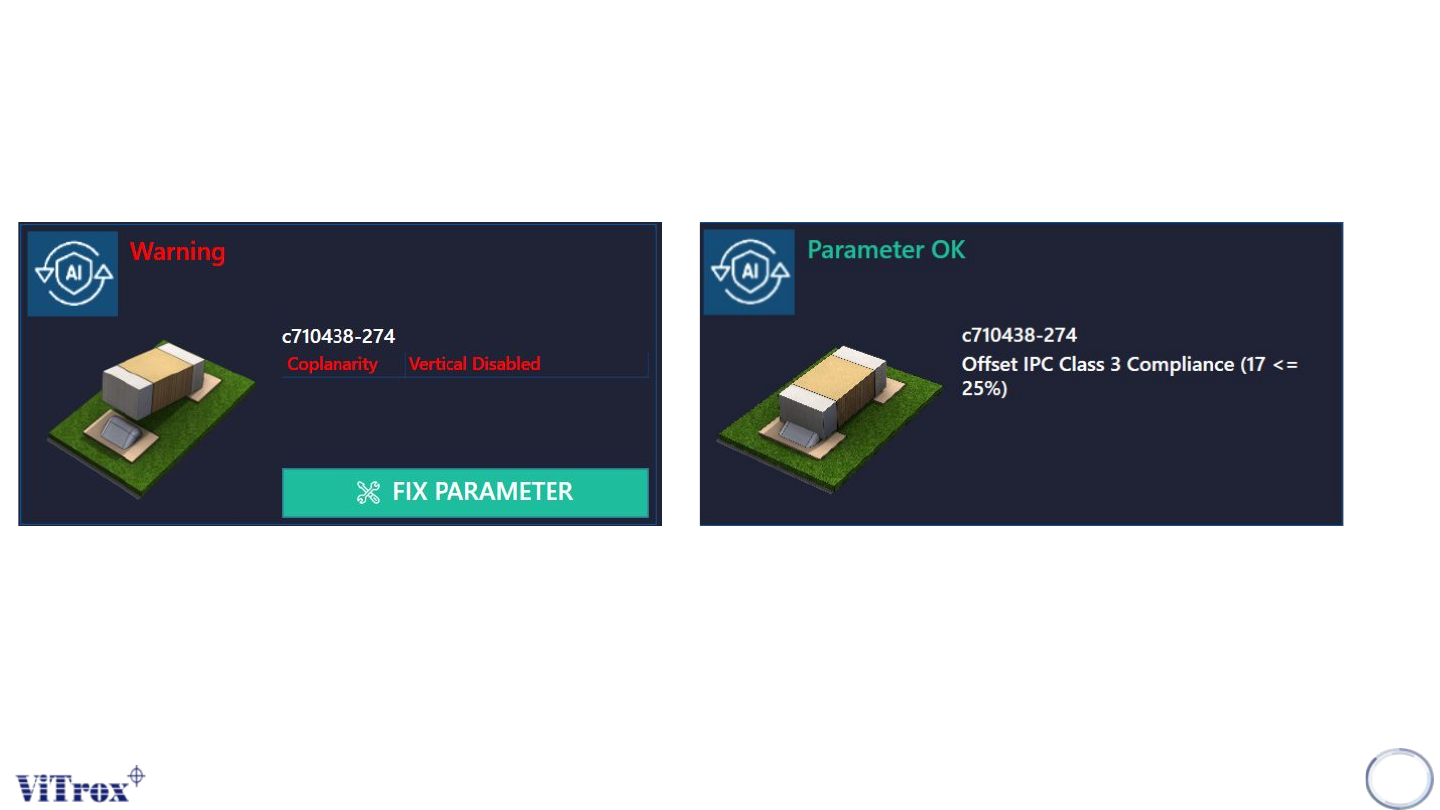

Figure 154: Status device type need to fix
Copyright © ViTrox All Rights Reserved.
Algorithm Editor Interface
165
Copyright © ViTrox All Rights Reserved.
Algorithm Editor Interface
166
Figure 155: Algorithm Editor Interface
Component Tree View
Display View
Editor Tool
Inspection Result
Display Result
A.I Technology Status
Algorithm Parameter Fine Tuning
View Mode
Program Name
Detail of Ref. Des.
