General Setting (Engineer Setting)

Engineer setting in general setting is used to set up the engineer inspection result which includes:

● Disable confirmation dialogues

● Disable operator dismiss board if fid fail

● Enable warning if defect packager off

● Turn on sampling inspection

Figure 17: Engineer Setting

General Setting (Engineer Setting)

Disable Configuration Dialogues

Disable confirmation dialogues is to stop

prompting the confirmation window. It skips the

confirmation popup. Error messages that

require to perform action such as fiducial fail,

Barcode0 warning.

Figure 18: Engineer Settings

General Setting (Engineer Setting)

Disable Operator Dismiss Board if Fid Fail

This feature is used to disallow the

operator to unload boards from machine

during fiducial fail in operator mode.

After turning on Auto Inspect and Release

in engineer or operator mode, a board

remains clamped and an error message

appears for a user to select manual find

only once fiducial failed. It forces the user

to go back to fiducial editor to perform

fiducial fine-tuning. Figures below show

the fiducial error message before and

after turning on this feature.

Note: This feature is available in engineer

and operator mode.

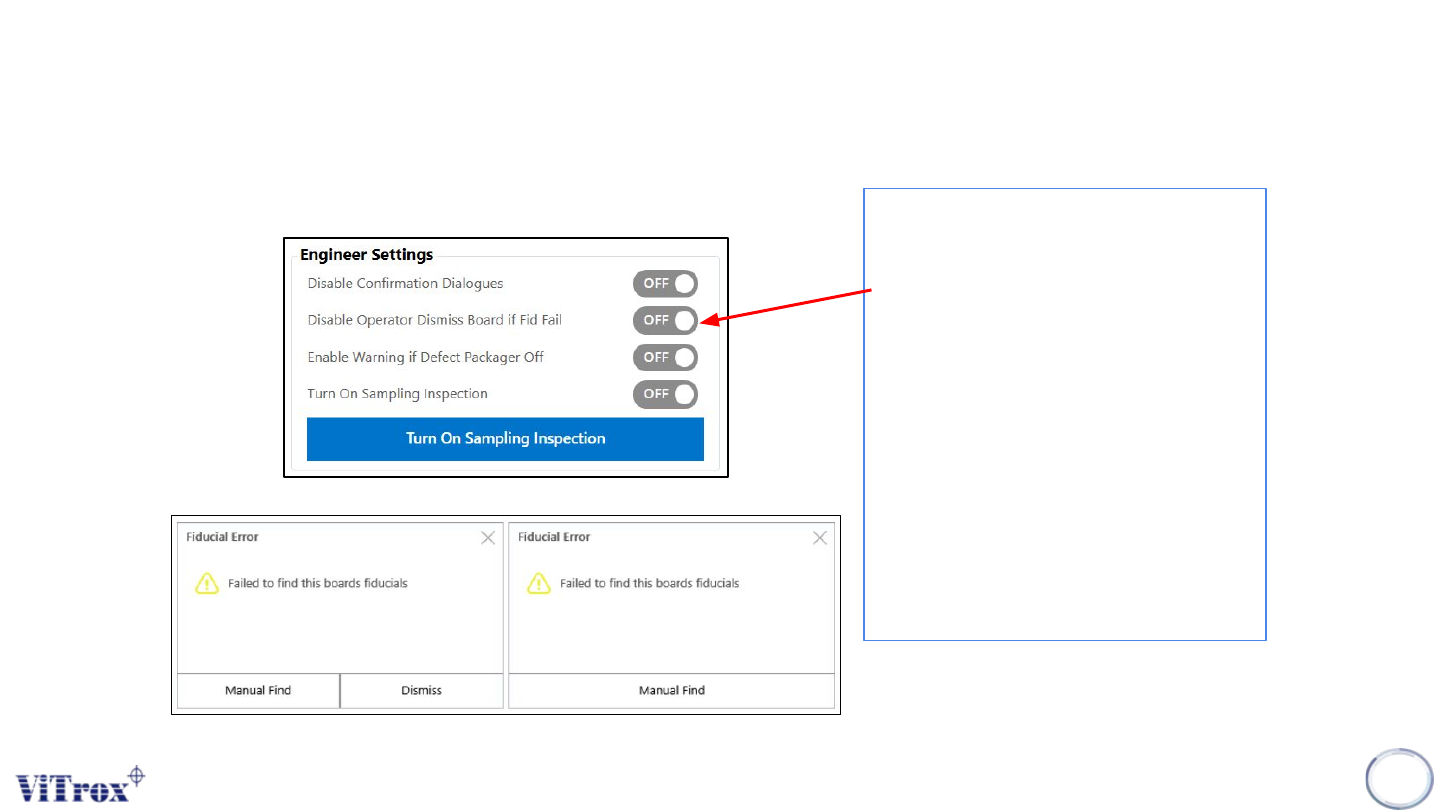

Figure 19: Engineer Settings

Figure 20: Failed to find this board fiducials
