General Setting (Action on Failure Options)

Figure 28: Action on failure options

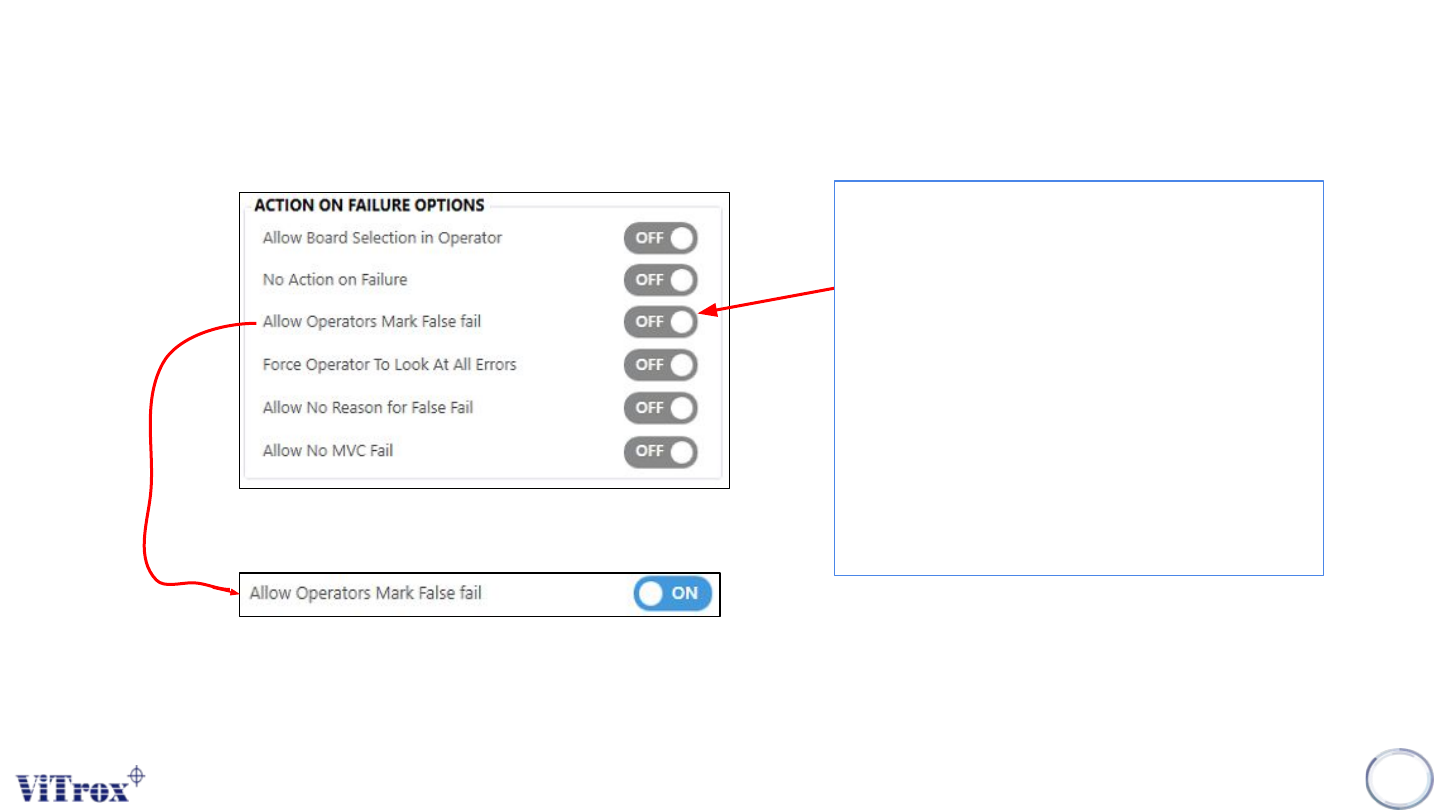

Allow Operators Mark False Fail

This feature is designed to allow an

operator to mark false fail on the reference

designator. When a reference designator is

marked as false fail, the reference

designator is consider as a pass

component. A false fail button appears on

the defect review window in operator

mode.

Note: This feature is applicable when "No action on

failure for operator" is set to Off. This feature is not

compatible with false fail monitoring.

Note: Please refer to the next slide to see example of the Mark False Fail. You can put the comment why the specific component False Fail

General Setting (Action on Failure Options)

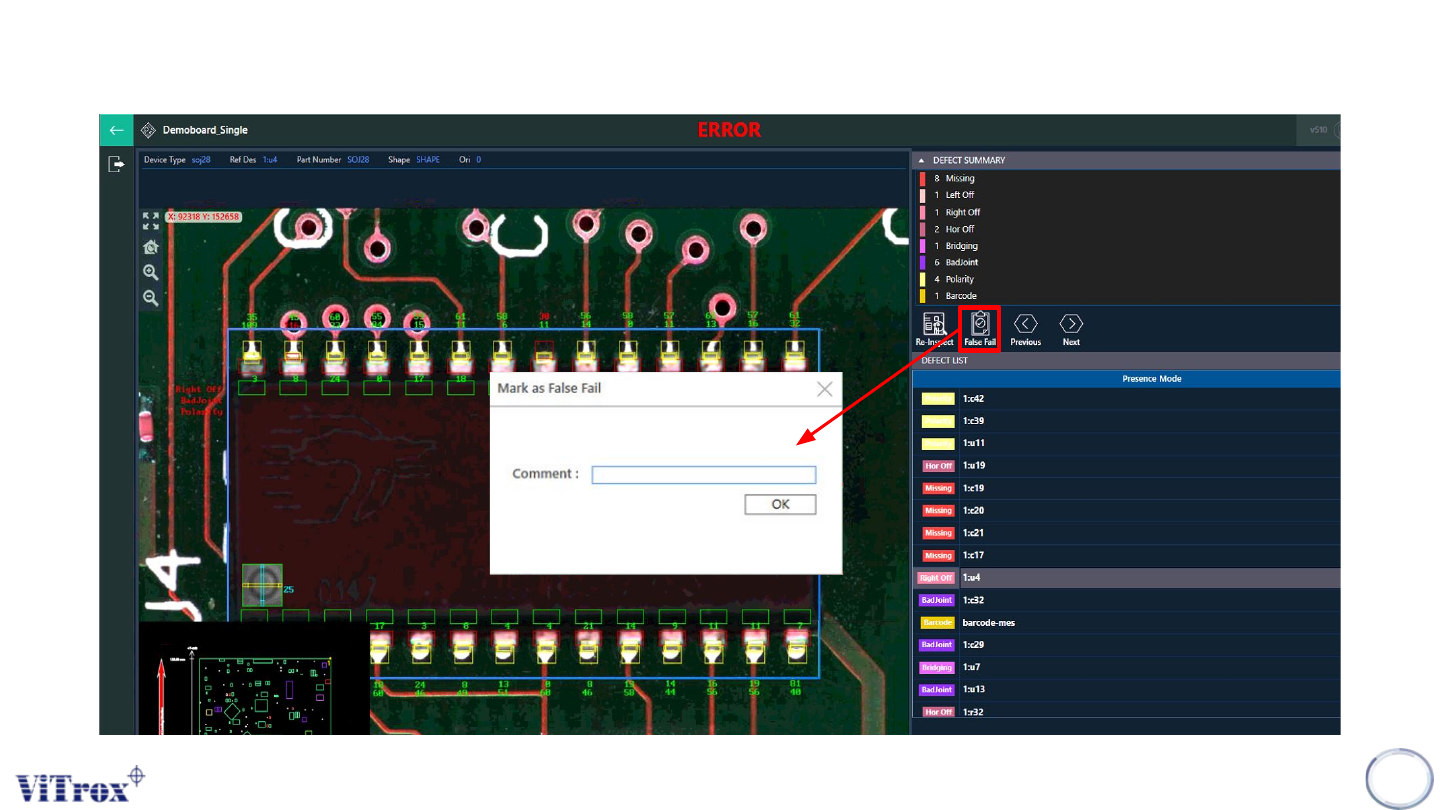

Figure 29: Example Interface when Mark False Fail button is enabled

General Setting (Action on Failure Options)

Figure 30: Action on failure options

Force Operator To Look At All Errors

This feature is designed to force operator

to look at all errors on a board before they

can release the board after inspection. If

the number of errors found is greater than

the value specified for maximum errors

allowed, the operator will not be forced to

view all the errors.

Note: This feature is applicable when "No action on

failure for operator" is set to Off. This feature is not

compatible with false fail monitoring.

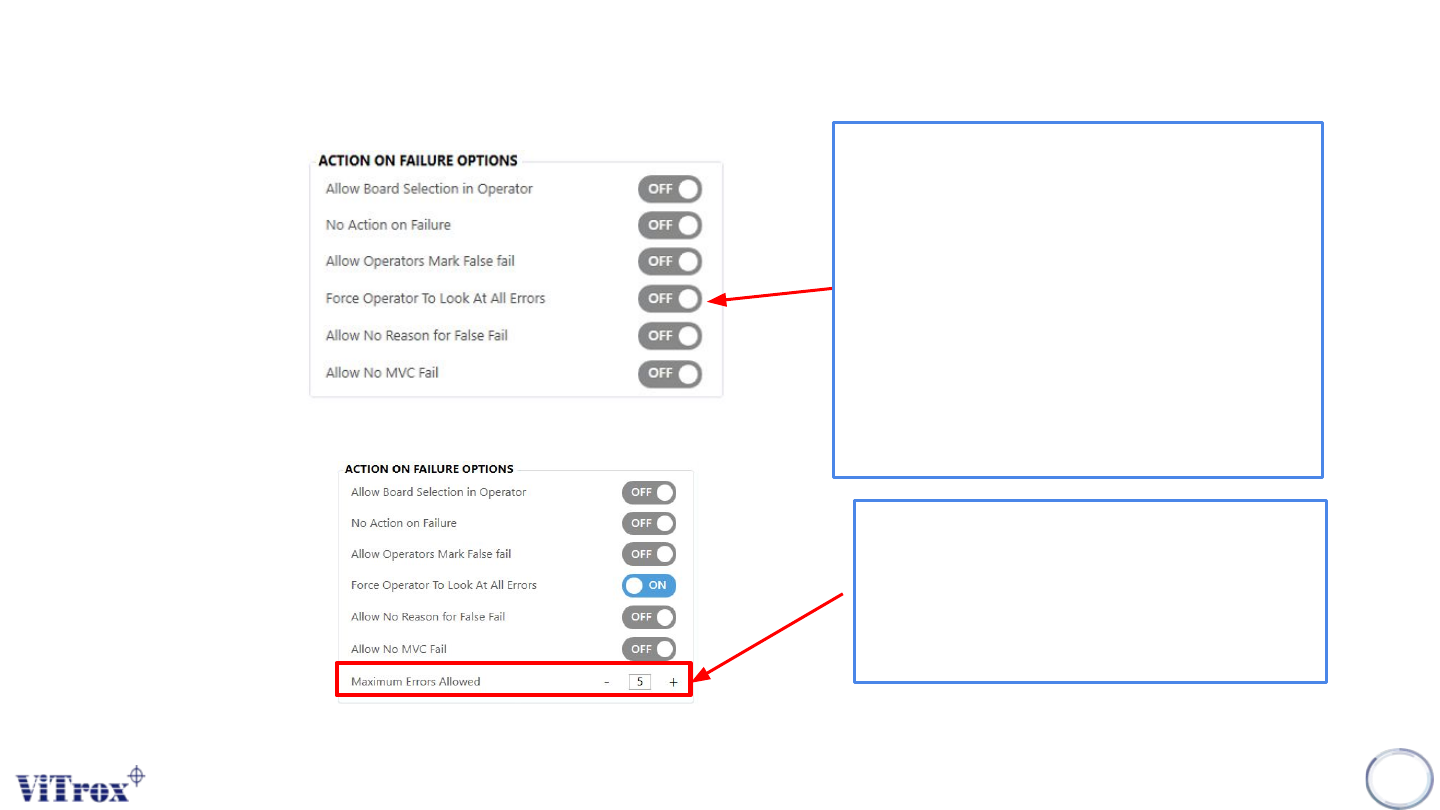

Figure 31: Example Setting (Maximum error allowed set to 5)

When the maximum errors allowed is set

to 5 and the defect calls are 19, it

exceeds the maximum errors allowed.

The board can be unloaded and it

skipped "force operator to look at all

errors".

Note: Please refer to the next slide to see example of Force Operator To Look At All Errors at Operator Mode
