Copyright © ViT rox All Rights Reserved . Board Name Board Name is always shown on top of the SmartG screen. When dual file is enabled, the board name shows as two board names. 176 Figure 161: Board Name Figure 162: The …
Copyright © ViTrox All Rights Reserved.
SmartG Operator Mode Interface
175

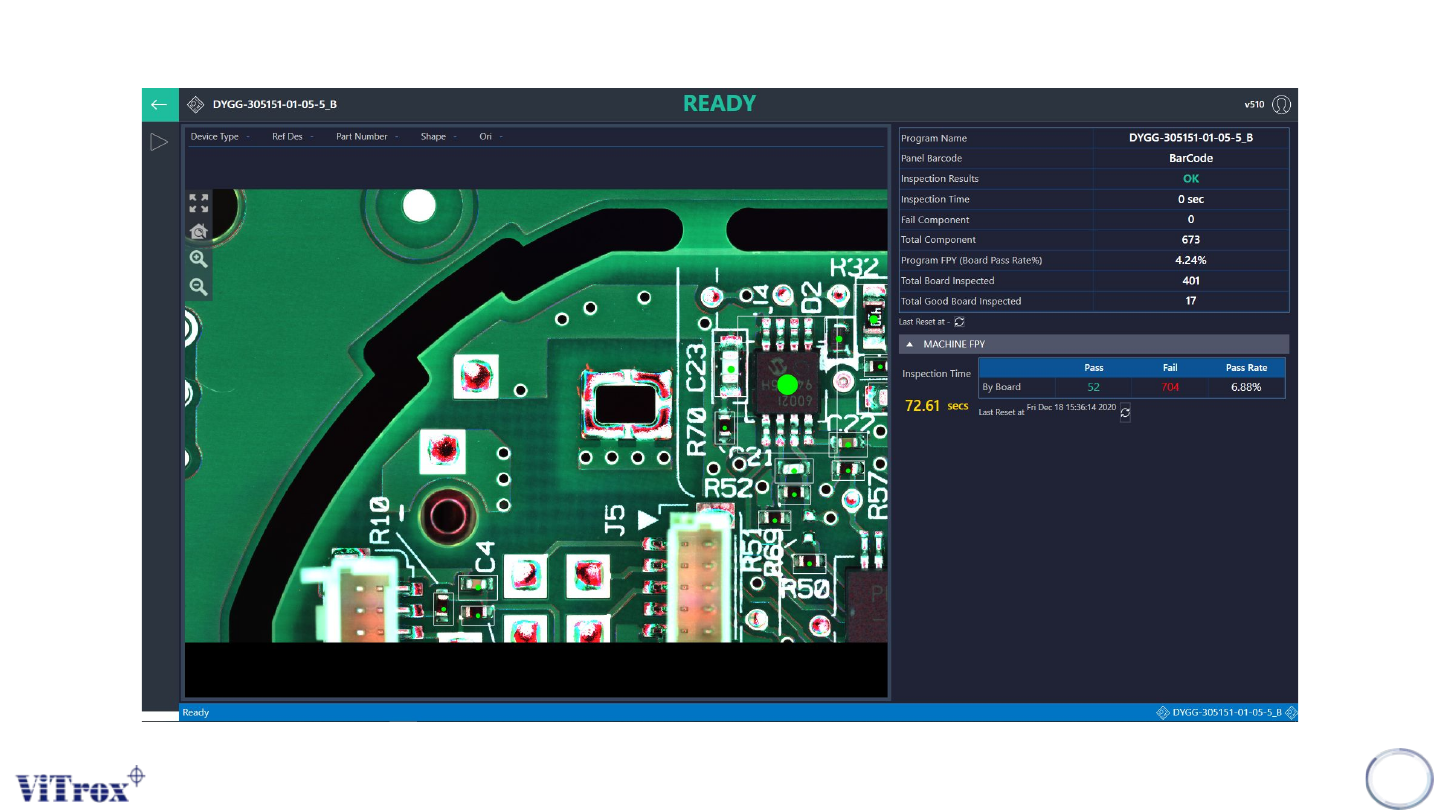

Figure 160: SmartG Operator Mode Interface
Copyright © ViTrox All Rights Reserved.
Board Name
Board Name is always shown on top of the SmartG screen. When dual file is enabled, the board name
shows as two board names.
176

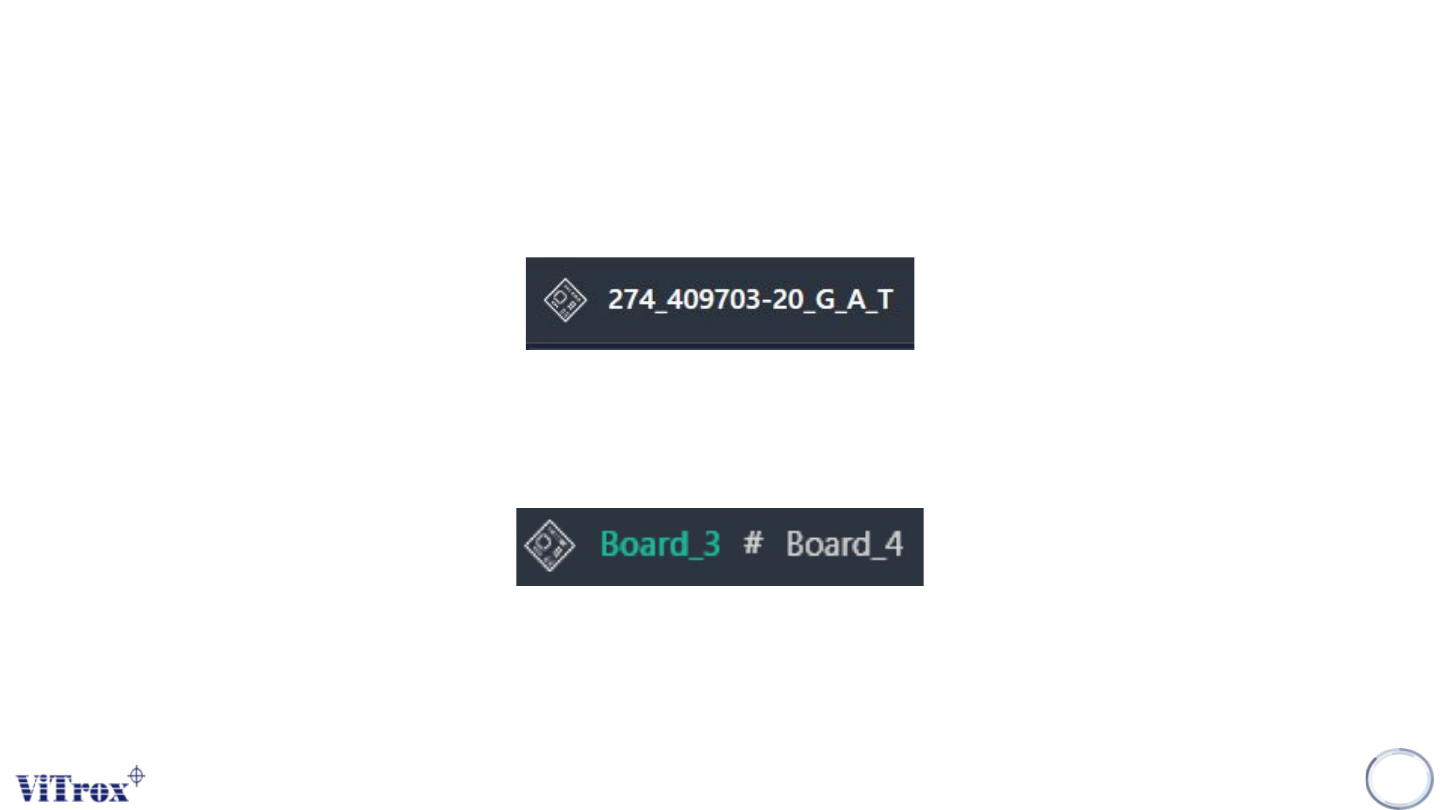

Figure 161: Board Name
Figure 162: The first and second board when dual file is enabled
Copyright © ViTrox All Rights Reserved.

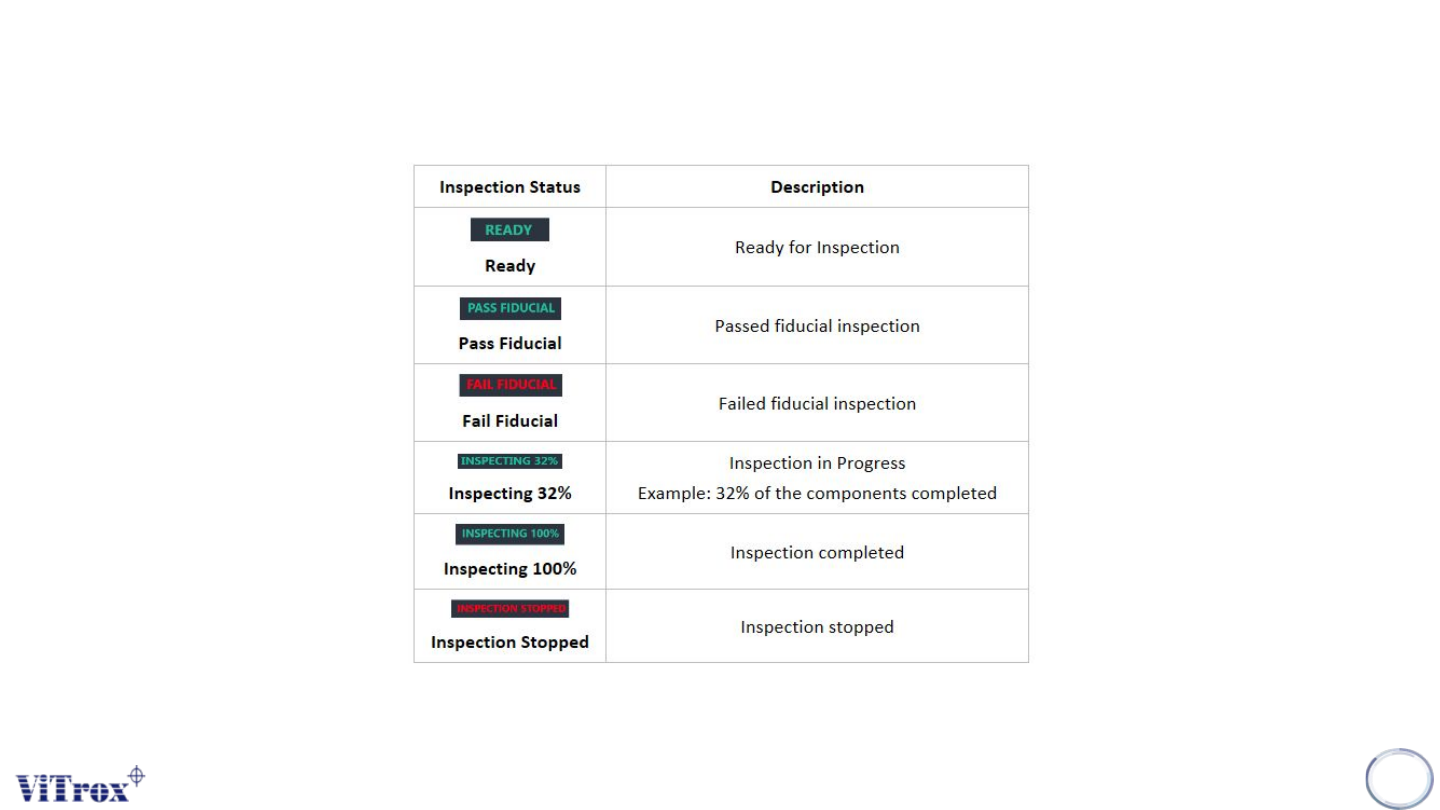

Inspection Status
Inspection Status is always shown on top of SmartG screen. The inspection status is always updated during an
inspection or any action that interrupts the inspection.
177
Table 2: Comparison acces
