Copyright © ViT rox All Rights Reserved . Drag and Measure Note: User can drag and measure the specific area of any components (XY Length) 148 Drag and Measure Drag and Measure the X and Y length in specific area Figure …
Copyright © ViTrox All Rights Reserved.
Zoom In and Out
147
Zoom in (+), Zoom Out (-)
Zoom in the camera view

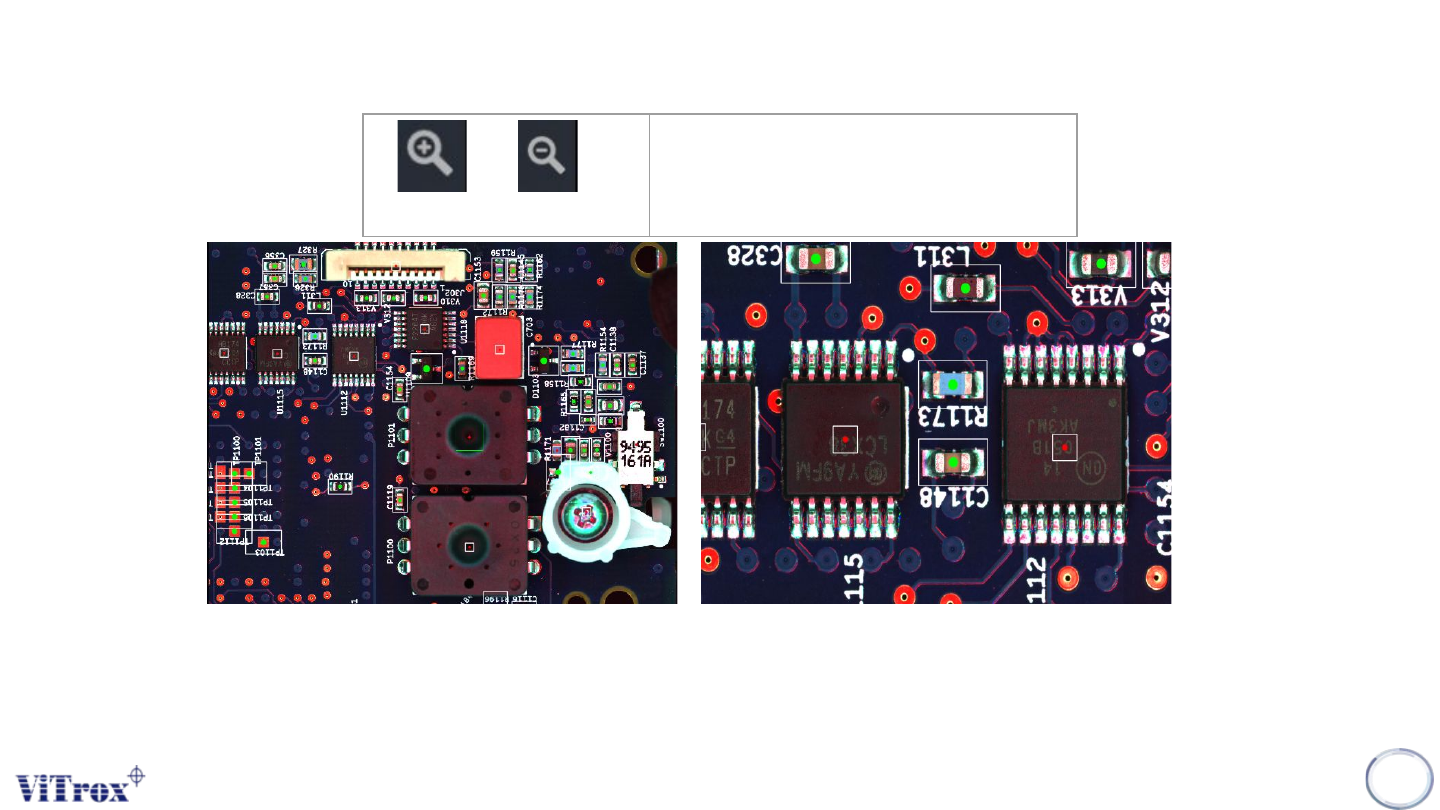

Figure 133: (Zoom out and Zoom in) pointed at any location
Note: User can use mouse wheel to zoom in and out at any location
Copyright © ViTrox All Rights Reserved.
Drag and Measure
Note: User can drag and measure the specific area of any components (XY Length)
148
Drag and Measure
Drag and Measure the X and Y length
in specific area
Figure 134: Calculate Length in Micron XY
Copyright © ViTrox All Rights Reserved.
View Pad
149
View Pad
Display Pad Coverage
Figure 135: Before and After click View Pad Tools
Note: User can see the Pad coverage of each components.
