Copyright © ViT rox All Rights Reserved . 126 Develop Program
Copyright © ViTrox All Rights Reserved.
Shortcut Key
Shortcut key is used to perform actions by keyboard keys only.
125
Keyboards Description
Ctrl+A Inspect All fiducial
Ctrl+C Compile
Ctrl+G Don’t save failed image
Ctrl+H Save failed image
Ctrl+E Enter algorithm editor
Copyright © ViTrox All Rights Reserved.
126
Develop Program
Copyright © ViTrox All Rights Reserved.
Linked Library
• Linked Library is used to show the current database (.dat) that linked to the current program.
The .dat file contains all the algorithms information including geometry and inspection
criteria. A drop-down list in the linked library helps users to manage the program and
database.
127

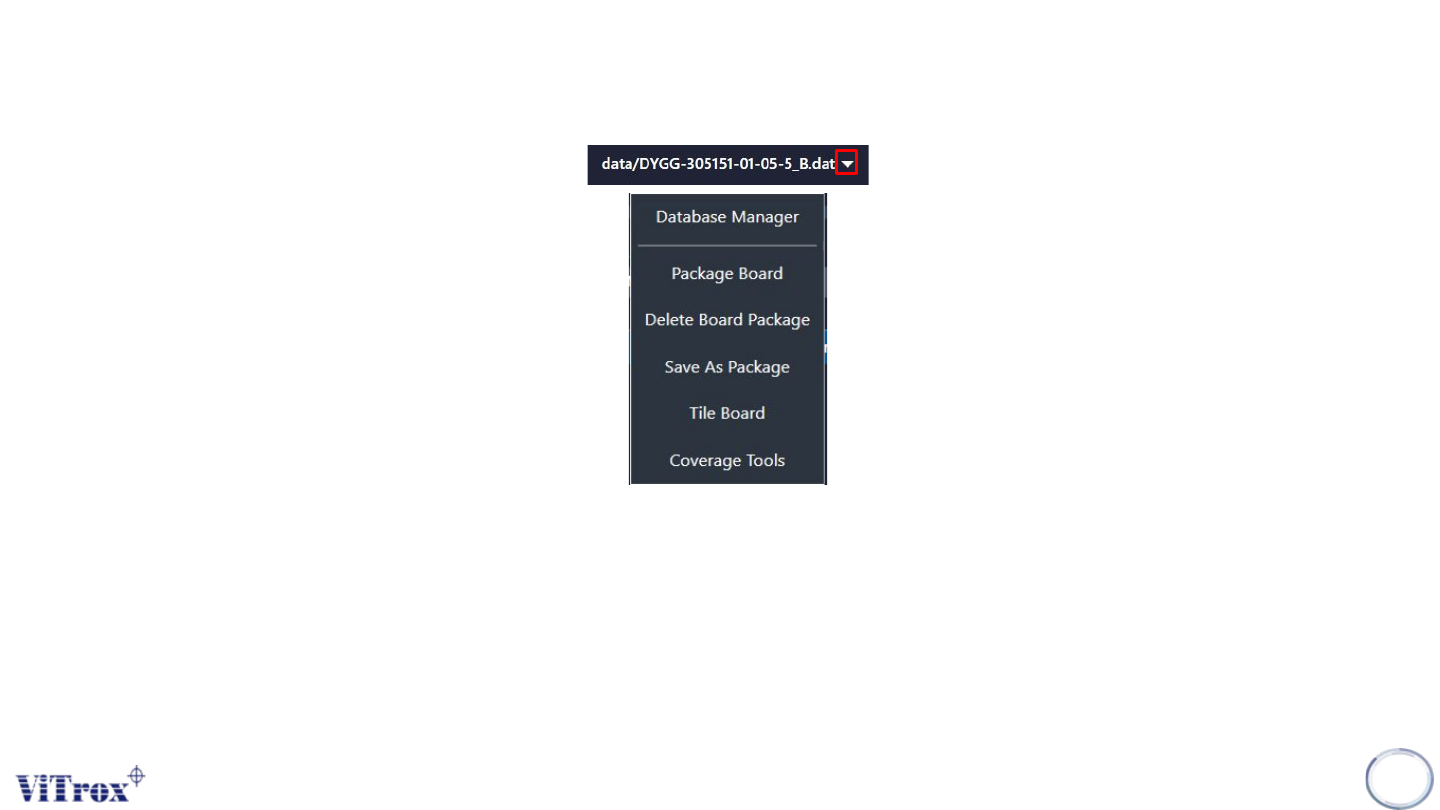

Figure 112: Database Manager Option
