Tools library 7 - 60 Vision 2007 4.10 User Manual Re v 01 7.9.5 Examples of use 7.9.5.1 Lifted lead In order to detect a maximum of defaults, it is advised to use the 2 Customer Profilers: The first, in lead way (joint…
Tools library
Vision 2007 4.10 User Manual Rev 01 7 - 59

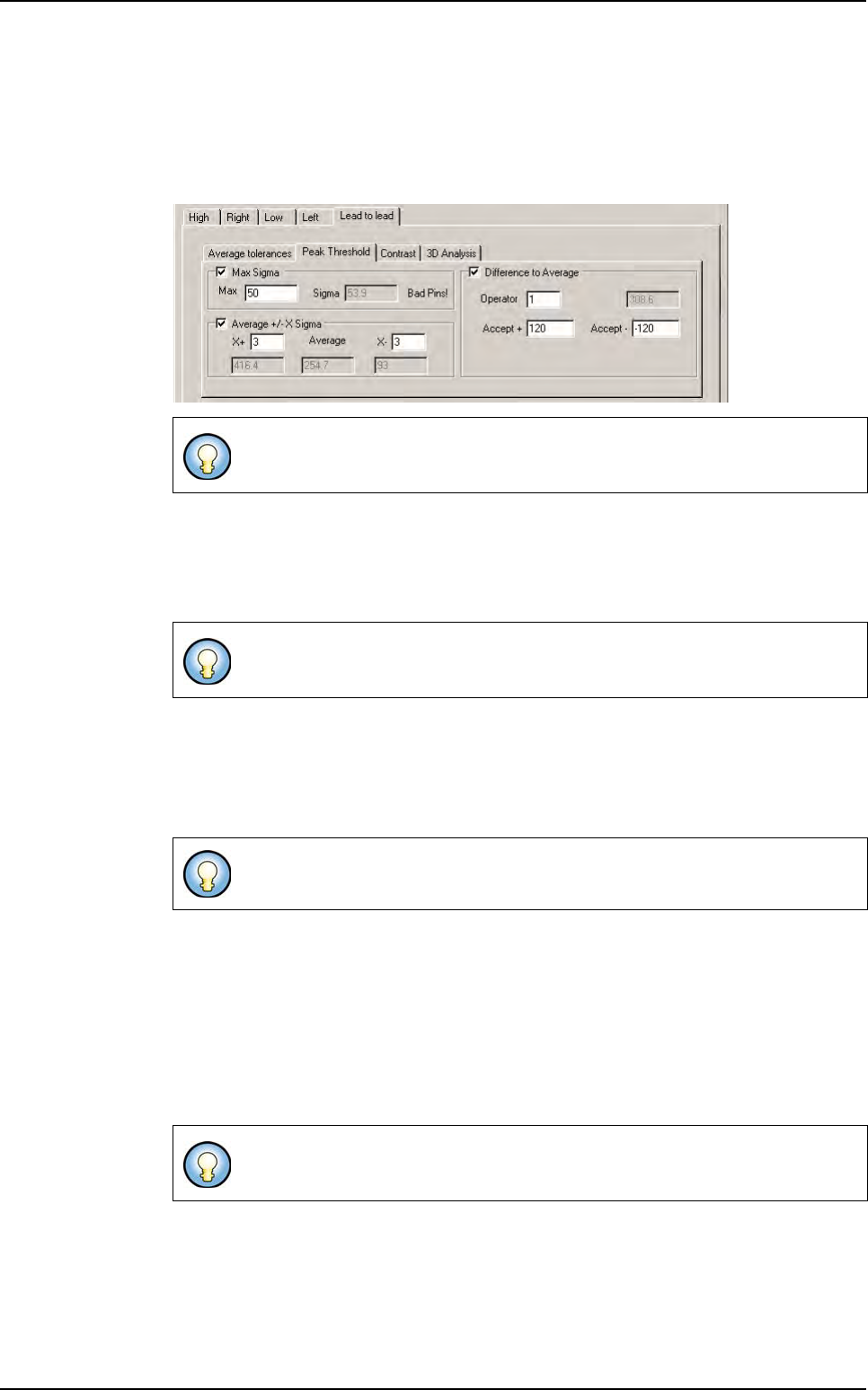

7.9.4.4 Lead to lead algorithm
Like for Lead to lead tolerance algorithm, Lead to lead algorithm is necessary to
adapt to the variation of the production.
The principle is to take all results of global algorithms and to make statistical calculation
with average and sigma. Results obtained in this way are adapted at each component.
Max sigma
This algorithm calculates the sigma of results coming from Global adjustment tool al-
gorithm. If sigma is too high, component contains lifted leads. You have to fix the maxi-
mum sigma you accept.
Average +/- X sigma
This algorithm verify that results are included between Average - X sigma and Average
+ X sigma
. All results that are outside these tolerances are considered as bad.
Fix X values.
Difference to Average +/- Sigma
This algorithm calculates each difference to the average.
Specify acceptable limits and operator:
Use
Operator 1 if defects are represented by high value (compared with the average).
Use
Operator -1
if defects are represented by small value (compared with the average).
Use Operator 0 if you do not know.
Only profiles and results validate as good by the Globat adjustment tool, are
pass to the
Lead to lead tool.
If the component has similar leads, sigma is small. If it contains different leads,
sigma is high. This algorithm allows to detect component with a lot of bad leads.
This algorithm allows to detect components with a small number of bad leads.
This algorithm allows to detect component with a small number of bad leads. It
is possible to use 1 or several
Lead to lead algorithm.
Profiler
™
in Custom
Tools library
7 - 60 Vision 2007 4.10 User Manual Rev 01
7.9.5 Examples of use
7.9.5.1 Lifted lead
In order to detect a maximum of defaults, it is advised to use the 2 Customer Profilers:
The first, in lead way (joint including),
The second, perpandicular to lead (lead or joint),
That allows to analyse leads and joints in 2 dimensions.
Profiler
™
in Custom
Tools library
Vision 2007 4.10 User Manual Rev 01 7 - 61
7.9.5.2 Welding lack
Profiler
™
in Custom
