1.2 Overview
1.2.1 Shuttle extension at the output side of a SIPLACE machine
1

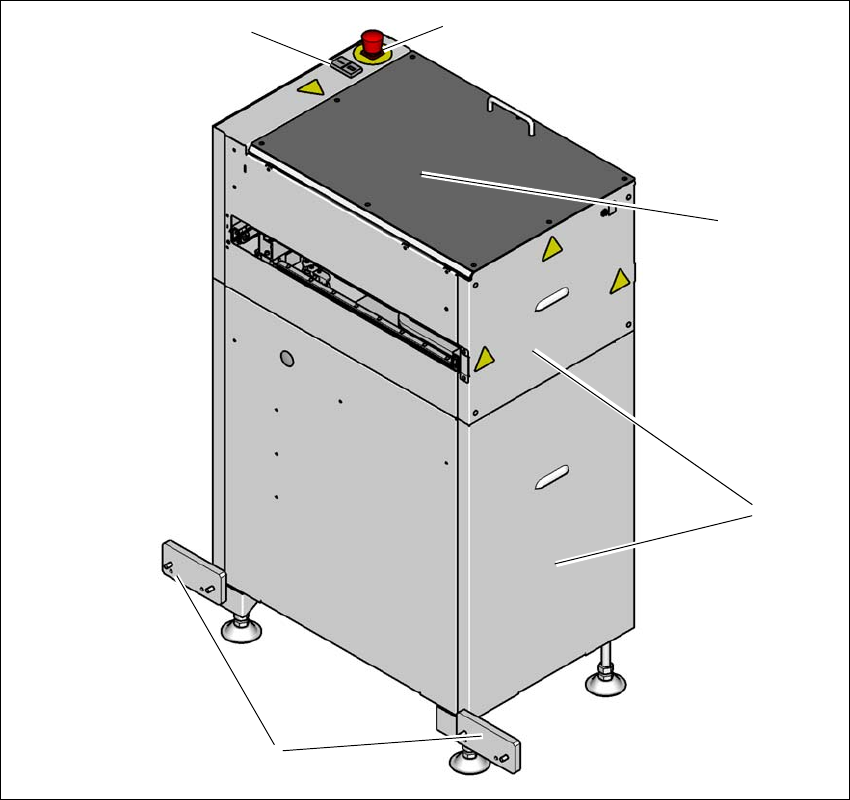

Fig. 1.2 - 1 Shuttle extension input side on the conveyor output of a SIPLACE machine
(1) Start and stop button
(2) EMERGENCY STOP button
(3) Top cover
(4) Side covers
(5) Connection fixtures on the conveyor output side of the SIPLACE machine
(1)
(5)
(2)
(3)
(4)
1 Introduction Assembly and Instruction Manual SIPLACE TX
1.2 Overview Shuttle Extension Edition 11/2018
8
1.2.2 Shuttle extension on the conveyor input side of a SIPLACE machine
1

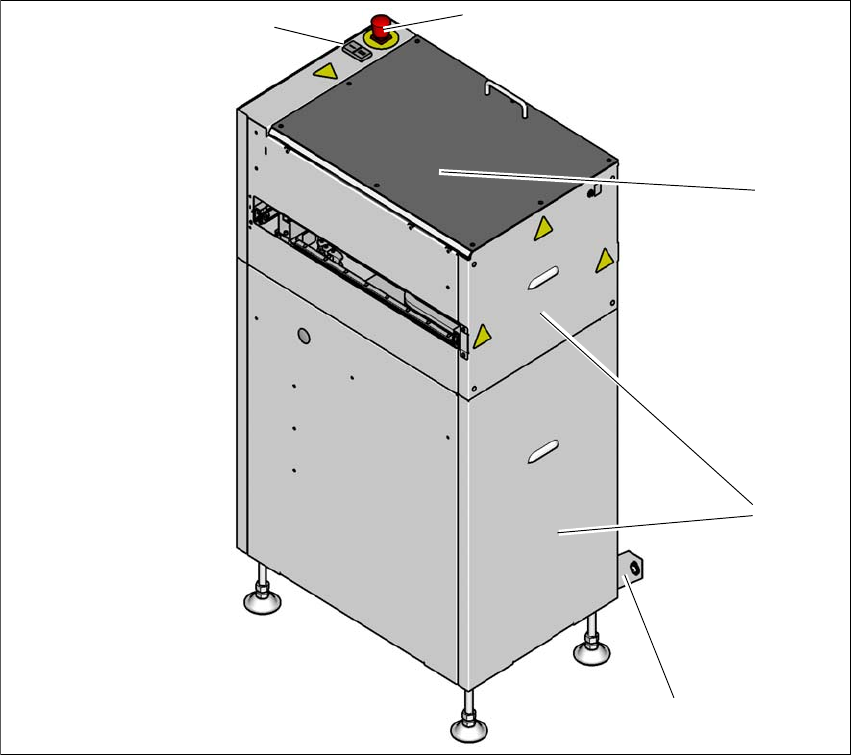

Fig. 1.2 - 2 Shuttle extension output side on the input side of the SIPLACE machine
(1) Start and stop button
(2) EMERGENCY STOP button
(3) Top cover
(4) Side covers
(5) Connection fixtures on the conveyor input side of the SIPLACE machine
(1)
(5)
(2)
(3)
(4)
Assembly and Instruction Manual 1 Introduction
Shuttle Extension Edition 11/2018 1.2 Overview
9
1.2.3 Configuration example for SIPLACE TX
1

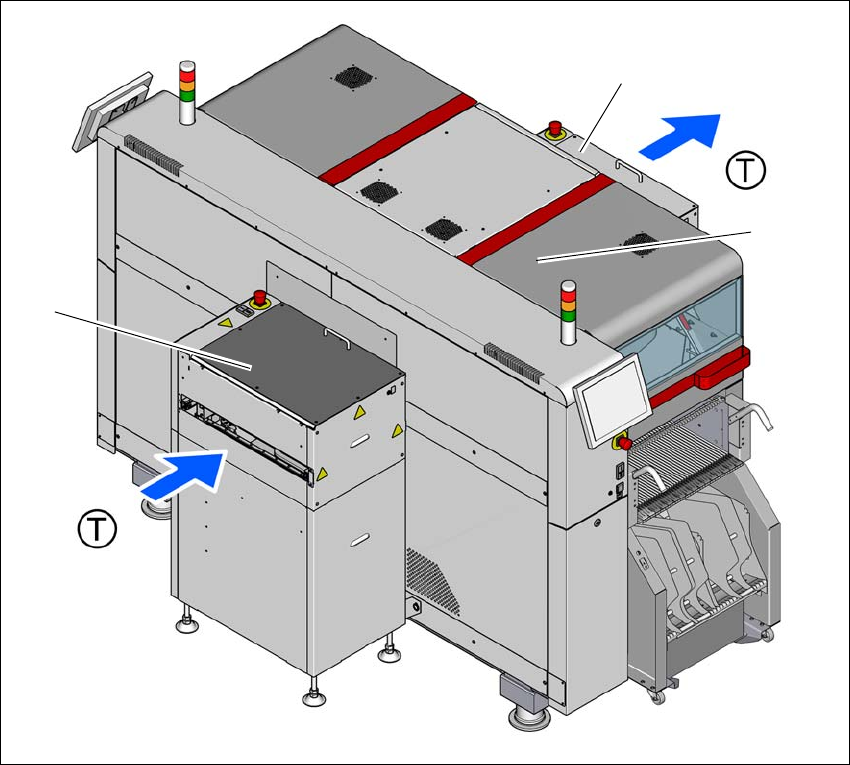

Fig. 1.2 - 3 Shuttle extension - configuration example for SIPLACE TX
(1) Shuttle extension on SIPLACE TX input conveyor
(2) Shuttle extension on SIPLACE TX output conveyor
(3) SIPLACE TX placement machine
(1)
(2)
(3)
