3 Assembly on the SIPLACE TX Assembly and Instruction Manual 3.2 Overview Shuttle Extension E dition 11/2018 38 3.2 Overview Fig. 3.2 - 1 Mounting interfaces between SIPLACE TX & shuttle ex tension Fig. 3.2 - 2 Mount…
Assembly and Instruction Manual 3 Assembly on the SIPLACE TX
Shuttle Extension Edition 11/2018 3.1 Scope of delivery
37
3 Assembly on the SIPLACE TX
3.1 Scope of delivery
– Shuttle extension: Item no.:588508-xx
– Transport rail position 281
– Assembly kit for mechanical connection: Item no.:
– Shuttle extension - holder output conveyor back and front Item no.: 03148418-xx
– Shuttle extension - holder input conveyor back and front Item no.: 03148410-xx
– 2 x SMEMA Cable - for one shuttle extension: Item no.:03152800-xx
– One SMEMA cable for each lane.
– 1 x CAN Bus cable for one shuttle extension: Item no.:03133551-xx
– 1 x Power interface cable to SIPLACE TX: Item no. 03123550-xx
3 Assembly on the SIPLACE TX Assembly and Instruction Manual
3.2 Overview Shuttle Extension Edition 11/2018
38
3.2 Overview

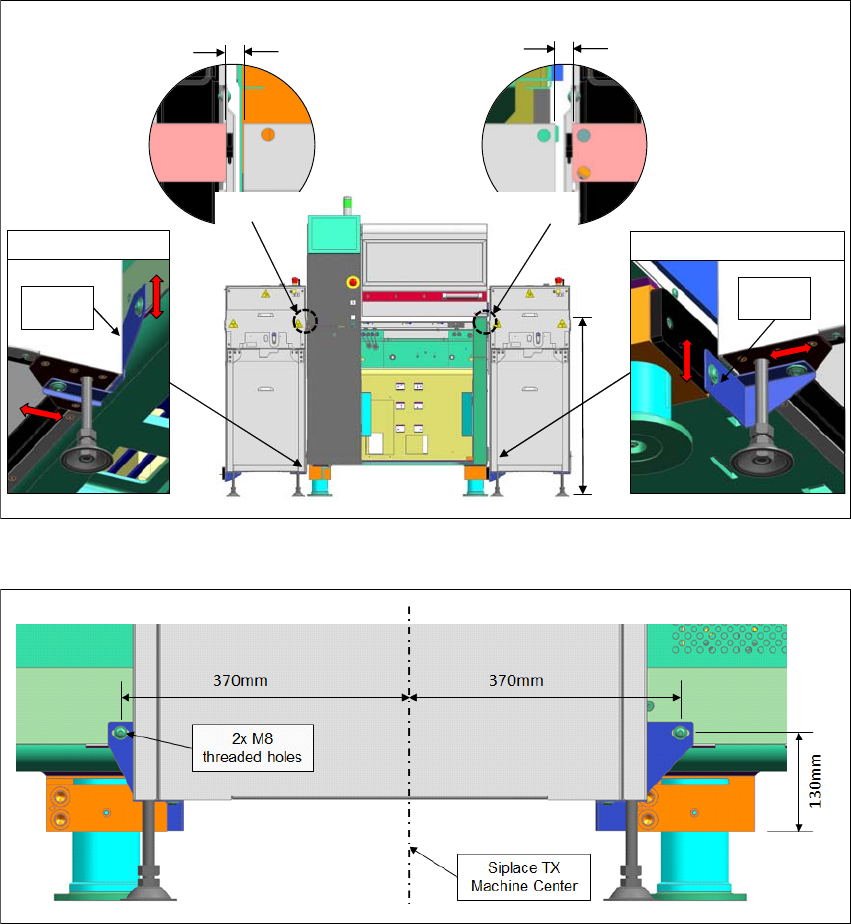

Fig. 3.2 - 1 Mounting interfaces between SIPLACE TX & shuttle extension
Fig. 3.2 - 2 Mounting holes position on SIPLACE TX machine frame (input side)
9
5
0
m
m
±
2
5
Siplace TX Input
Siplace TX Output
Interface
Bracket
Interface
Bracket
without sensor: 7.5mm – 10.5mm
with sensor: 10.5mm – 11mm
without sensor: 7.5mm – 10.5mm
with sensor: 10.5mm – 11mm
Assembly and Instruction Manual 3 Assembly on the SIPLACE TX
Shuttle Extension Edition 11/2018 3.3 Assembly kit and mechanical connection
39
3.3 Assembly kit and mechanical connection
A mechanical interface kit will be used to fix the shuttle extension into position. This mechanical
interface kit consists of 2x Intermediate Ledges, 4x Interface brackets, 4x ISO4762 M8 and 8x
ISO7380-2 M8 screws. The intermediate ledge is mounted onto the SIPLACE TX feet, while the
interface brackets are mounted on shuttle extension's body frame.

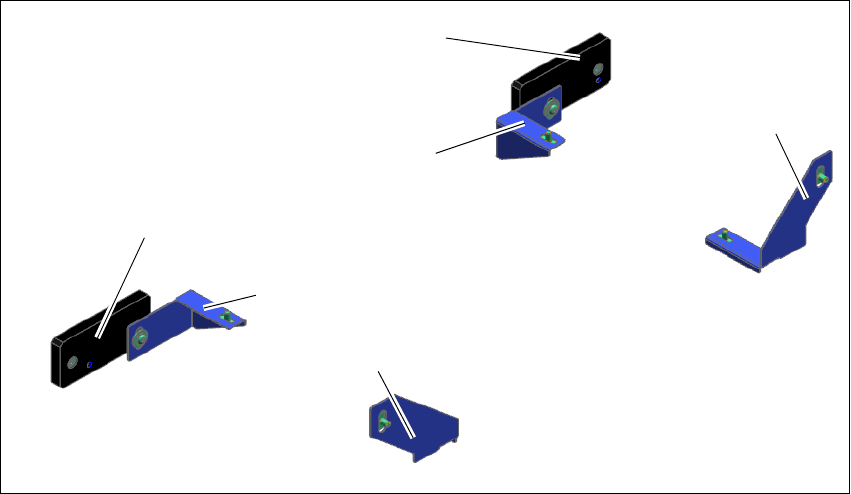

Fig. 3.3 - 1 Assembly kit for mechanical connection
(1) Intermediate ledge on SIPLACE TX output conveyor- right side
(2) Intermediate ledge on SIPLACE TX output conveyor- left side
(3) Interface bracket input shuttle extension- right side
(4) Interface bracket input shuttle extension - left side
(5) Interface bracket output shuttle extension - right side
(6) Interface bracket output shuttle extension - left side
(1)
(2)
(3)
(4)
(5)
(6)
