4 Assembly on the SIPLACE SX V2 Assembly and Instruction Manual

4.2 Assembly kit and mechanical connection Shuttle Extension Edition 11/2018

4.2.1 General

 Remove the four side covers from the shuttle extension. This gives you access to the fixtures

for the interface brackets and the electrical connection.

 Move the shuttle extension to the SIPLACE SX.

 Set the height of the shuttle extension, so that the PCB conveyor for the shuttle extension is

the same height as the PCB conveyor for the SIPLACE SX.

The shuttle extension stands on 4 feet.

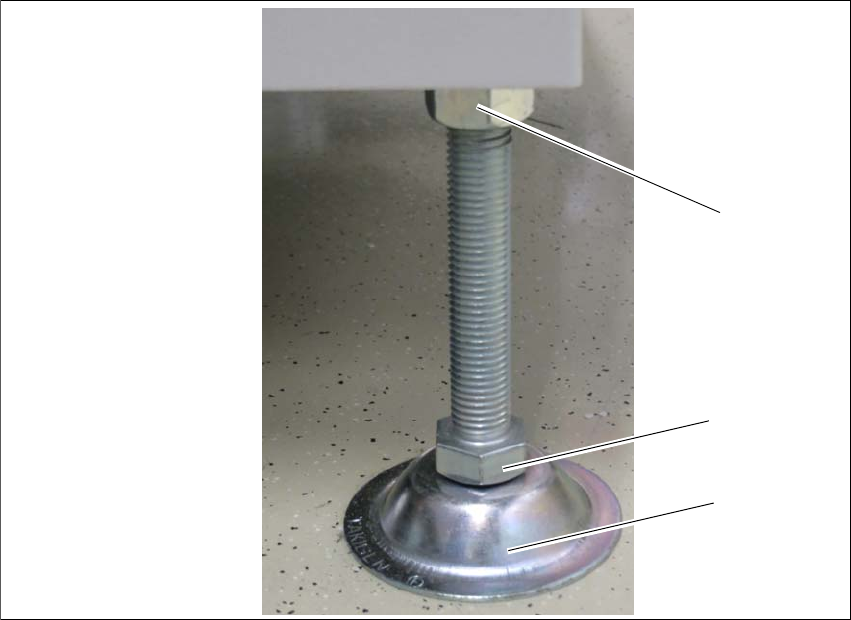

Fig. 4.2 - 1 Presetting the height of the machine feet

(1) Top screw nut

(2) Bottom screw nut

(3) Shuttle extension feet

 Turn the shuttle extension feet (3) with the bottom screw nut (2) so that the shuttle extension

has the same height as the PCB conveyor height of the SIPLACE SX.

 Tighten the top screw nut (1), so that the machine feet are fixed into place.

 Check the height of the shuttle extension and correct the height, if necessary.

(1)

(2)

(3)

Assembly and Instruction Manual 4 Assembly on the SIPLACE SX V2

Shuttle Extension Edition 11/2018 4.2 Assembly kit and mechanical connection

4.2.2 Adjustment

 Place a machine spirit level (measuring accuracy of 0.02 mm) against the edge of the shuttle

extension PCB conveyor.

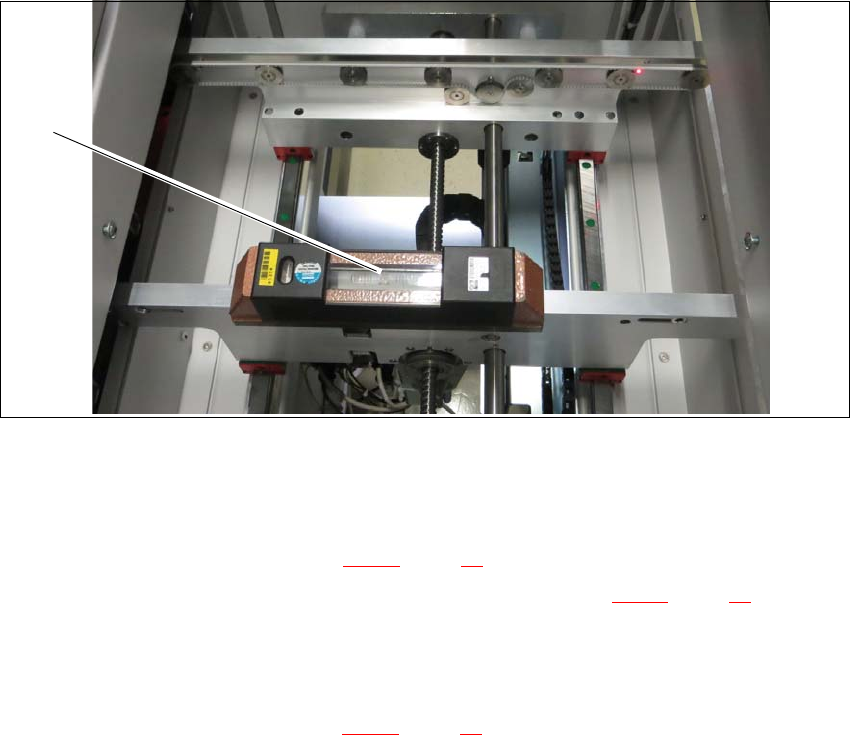

Fig. 4.2 - 2 Machine spirit level measuring accuracy of 0.02 mm) on conveyor rail

 Use the machine spirit level (1) to align the shuttle extension in the X and Y direction, at the

four machine feet.

 Unscrew the top nut (item 1 in fig. 4.2 - 1, page 52) with the help of a s open-ended wrench.

 Use the open-ended wrench to set the bottom nuts (item 2 in fig. 4.2 - 1, page 52) of all four

shuttle extension feet, so that the fluid in the machine spirit level does not deviate from its

zero point at the required conveyor height.

 Check the required board conveyor height.

 Tighten the top nuts (item 1 in fig. 4.2 - 1, page 52) to clamp all shuttle extension feet.

(1)

4 Assembly on the SIPLACE SX V2 Assembly and Instruction Manual

4.2 Assembly kit and mechanical connection Shuttle Extension Edition 11/2018

4.2.3 Alignment and testing

 Align one of the shuttle conveyor sides (either left or right) to the SX conveyor side.

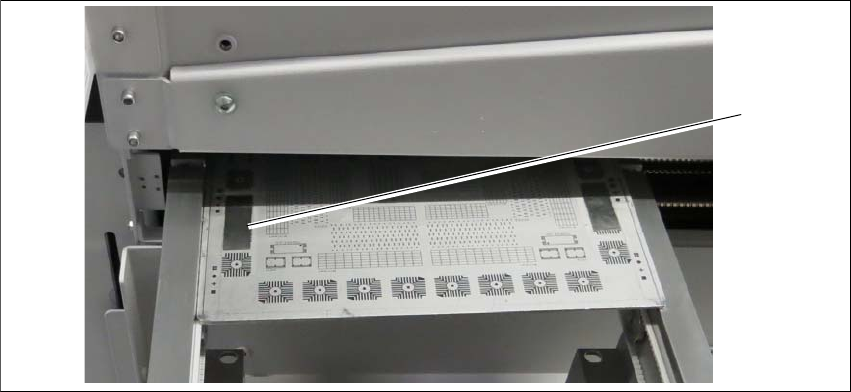

Fig. 4.2 - 3 Check PCB

 Check rail position with the calibrated PCB.

 Push a board through the PCB conveyor and check the transition point between the shuttle

extension and the SIPLACE SX.

 It must be possible to push the board through easily and with no resistance.

(1)
