Assembly and Instruction Manual 7 Barcode reader extension

Shuttle Extension Edition 11/2018 7.4 Assembly Instruction

7.4 Assembly Instruction

7.4.1 Step 1

In order to mount barcode reader extension kit onto the shuttle extension, the following items must

be available.

– 03135848- barcode reader extension kit cpl. (Pre-assembled)

– 03149503- extension 207_left assy.(Pre-assembled)

Fig. 7.4 - 1 Step 1

7.4.2 Step 2

 Remove dowel pin (1) from shuttle conveyor, this is to allow the exchange of longer belt.

 Loosen pulley (2) to release belt tension and remove conveyor belt.

Fig. 7.4 - 2 Step 2

(1)

(2)

(1)

(2)

7 Barcode reader extension Assembly and Instruction Manual

7.4 Assembly Instruction Shuttle Extension Edition 11/2018

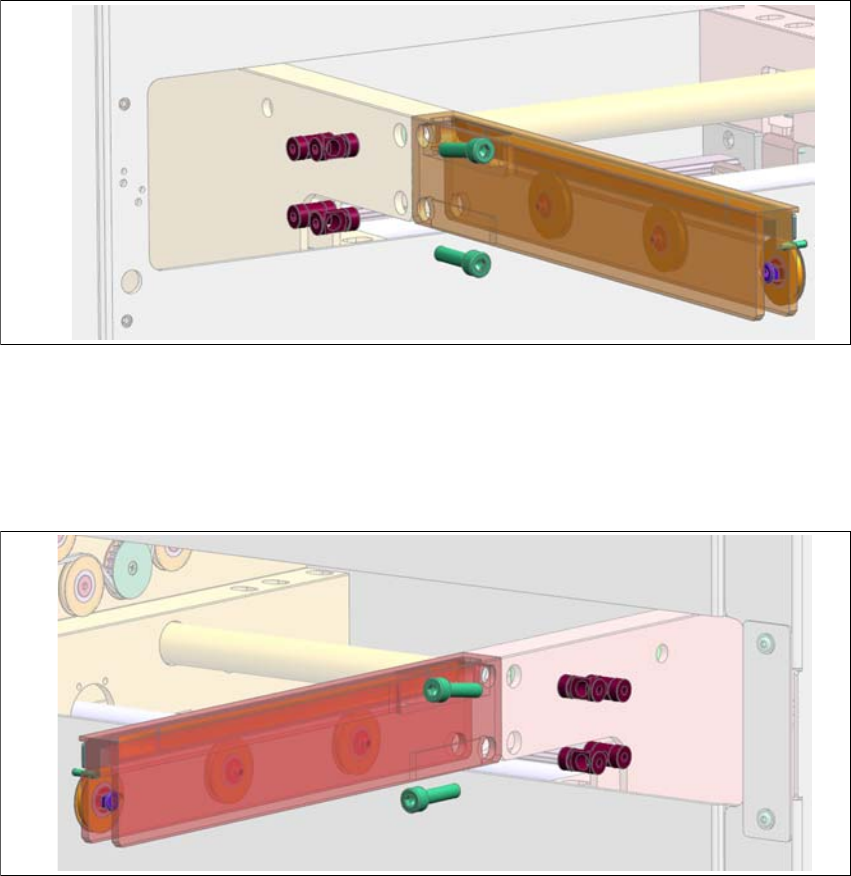

7.4.3 Step 3

 Mount the pre-assembled extension rail_left onto the shuttle conveyor via 2x 03116105-Bolt

4 M-C, 2x 03116106-Bolt 5 M-C and 2x 03042563-ISO4762 M5x20.

Fig. 7.4 - 3 Step 3

7.4.4 Step 4

 Mount the pre-assembled extension rail_right onto the shuttle conveyor via 2x 03116105-Bolt

4 M-C, 2x 03116106-Bolt 5 M-C and 2x 03042563-ISO4762 M5x20.

Fig. 7.4 - 4 Step 4

Assembly and Instruction Manual 7 Barcode reader extension

Shuttle Extension Edition 11/2018 7.4 Assembly Instruction

7.4.5 Step 5

 Mount 03149525- synchronous belt 2.5x2.2 AT3/1341 onto the left rail and tension it accord

ingly.

Fig. 7.4 - 5 Step 5

7.4.6 Step 6

 Mount 03149525- synchronous belt 2.5x2.2 AT3/1341 onto the right rail and tension it accord

ingly.

Fig. 7.4 - 6 Step 6
