Assembly and Instruction Manual 3 Assembly on the SIPLACE TX Shuttle Extension Edition 11/2018 3.4 Electrical connections 49 3.4.2.2 Connections The shuttle extension supports tw o configu rations: upstream and downstrea…
3 Assembly on the SIPLACE TX Assembly and Instruction Manual
3.4 Electrical connections Shuttle Extension Edition 11/2018
48
3.4.2 Electrical connection on the SIPLACE TX
3.4.2.1 Overview

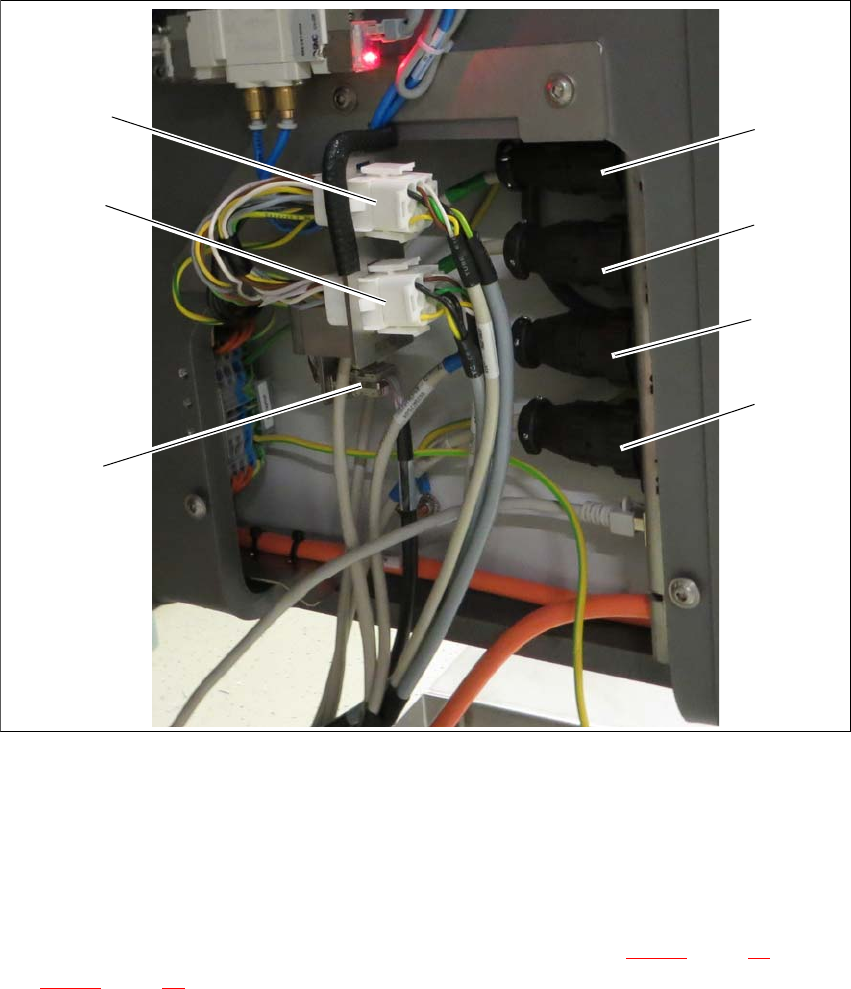

Fig. 3.4 - 2 SIPLACE TX connection
(1) SMEMA connection T1 UPSTREAM
(2) SMEMA connection T1 DOWNSTREAM
(3) SMEMA connection T2 UPSTREAM
(4) SMEMA connection T2 DOWNSTREAM
(5) CAN-BUS connection (for termination and connection see section 3.4.2.2
, page 49 and
3.4.2.3
, page 50)
(6) Power interface to the output shuttle extension
(7) Power interface to the input shuttle extension
(7)
(6)
(5)
(1)
(2)
(3)
(4)
Assembly and Instruction Manual 3 Assembly on the SIPLACE TX
Shuttle Extension Edition 11/2018 3.4 Electrical connections
49
3.4.2.2 Connections
The shuttle extension supports two configurations: upstream and downstream, the wiring and
jumper settings are specified as follows:
3
For special configurations where two shuttle extensions are link to a single SIPLACE TX machine,
the CAN cable and TSP 420 jumper setting will be configure as per below.
3
Upstream configurations Downstream configurations
Power connection to TX -X15.S1 -X15.S2
CAN Bus connection to TX CAN3.EXT CAN3.EXT
Power connection to TX X50 X50
CAN bus connection to shuttle X52 X52
SMEMA connection to TX -XL1 and XL2 upstream -XL1 and XL2 upstream
SMEMA connection to shuttle -XL1-DS and XL2-DS (down
-
stream)
-XL1-US and XL2-US
(Upstream)
TSP 420 jumper setting JP1 pin 2 and 3 is shorted
JP2 pin 1 and 2 is shorted
JP1 pin 2 and 3 is shorted
JP2 pin 1 and 2 is shorted
CAN termination connector re
-
moved from CAN3.EXT
Plugged into -X1* (CAN ca
-
ble: upstream)
Plugged into -X1* (CAN ca
-
ble: downstream)
CAN cable IDC connector Upstream configurations Downstream
configurations
-X1 -X1*(cable: downstream) CAN3.EXT (TX)
-X1* CAN termination connector
removed from CAN3.EXT
-X1 (cable: upstream)
-X52 -X52 (shuttle upstream) -X52 (shuttle upstream)
TSP 420 jumper setting
JP1 pin 2 and 3 is shorted
JP2 pin 1 and 2 is shorted
JP1 pin 2 and 3 is shorted
JP2 pin 1 and 2 is shorted
3 Assembly on the SIPLACE TX Assembly and Instruction Manual
3.4 Electrical connections Shuttle Extension Edition 11/2018
50
3.4.2.3 CAN cable connections for special configuration

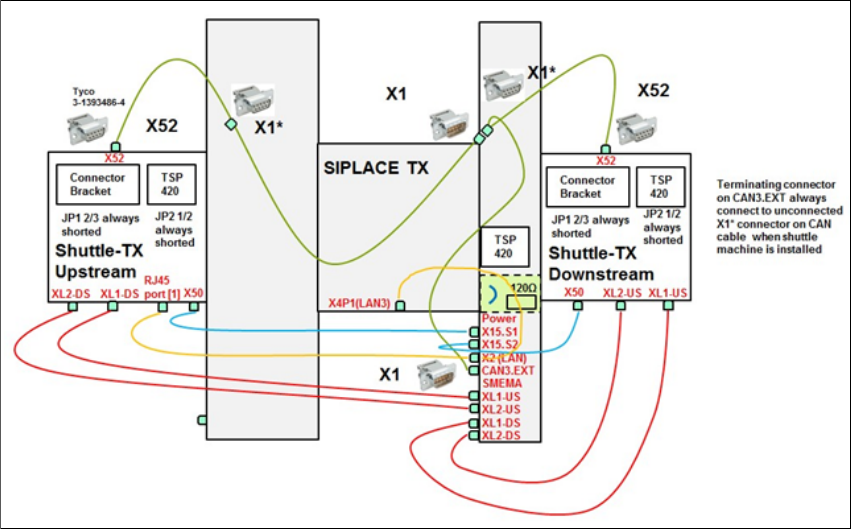

Fig. 3.4 - 3 CAN cable connections for special configuration
