3 Assembly on the SIPLACE TX Assembly and Instruction Manual 3.3 Assembly kit and mechanical connection Shuttle Extension Edit ion 11/2018 44 It must be possible to push the board through easily and with n o resistance…
Assembly and Instruction Manual 3 Assembly on the SIPLACE TX
Shuttle Extension Edition 11/2018 3.3 Assembly kit and mechanical connection
43

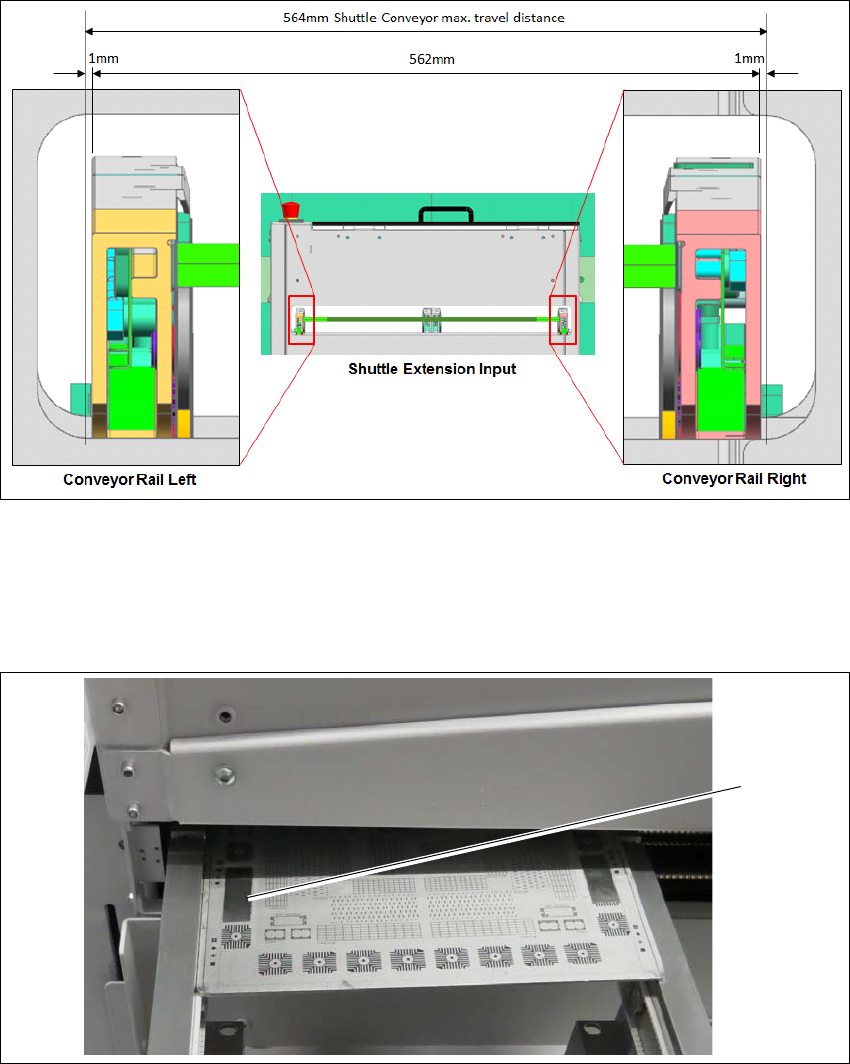

Shuttle extension to SIPLACE TX alignment 3
Fig. 3.3 - 6 Alignment position for shuttle extension
Shuttle conveyor rails to be positioned at 281 (1mm gap on each outer end) and fixed with
motor brake.
Align one of the shuttle conveyor rails (either left or right) to TX conveyor rail.
Fig. 3.3 - 7 Check PCB
Check rail position with the calibrated PCB.
Push a board through the PCB conveyor and check the transition point between the shuttle
extension and the SIPLACE TX.
(1)
3 Assembly on the SIPLACE TX Assembly and Instruction Manual
3.3 Assembly kit and mechanical connection Shuttle Extension Edition 11/2018
44
It must be possible to push the board through easily and with no resistance.
Screw the shuttle extension onto TX machine via interface brackets to secure in place.

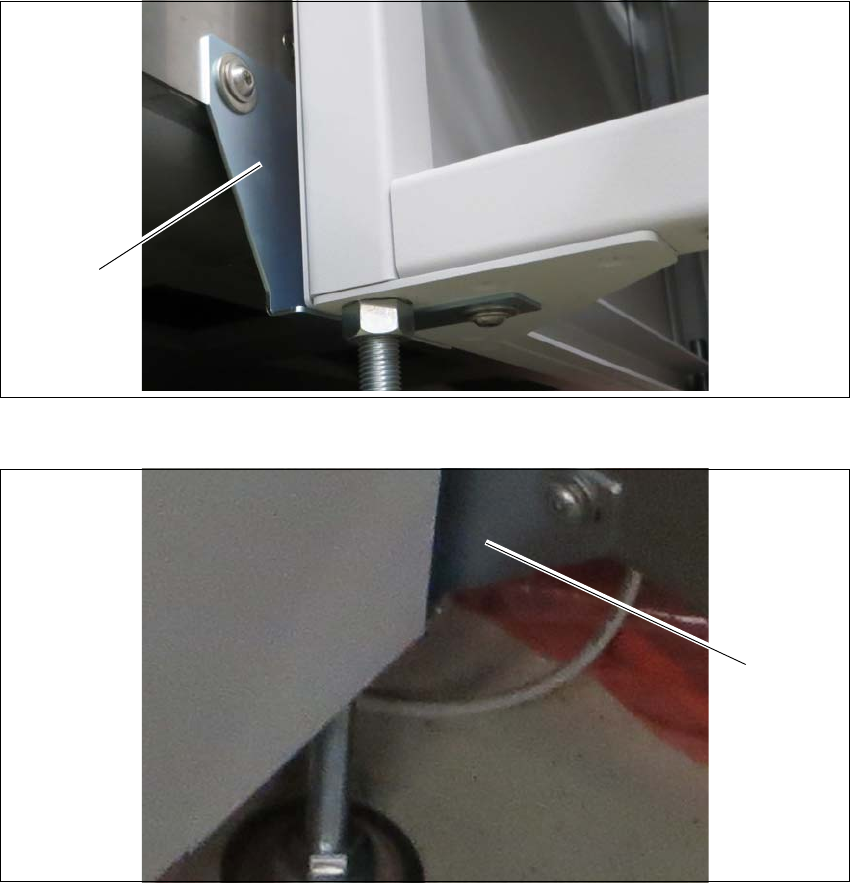

Interface brackets on input shuttle extension side 3
Fig. 3.3 - 8 Interface bracket on input conveyor - right side
Fig. 3.3 - 9 Interface bracket on input conveyor - left side
(1) Interface bracket input conveyor - right side
(2) Interface bracket input conveyor - left side
(1)
(2)
Assembly and Instruction Manual 3 Assembly on the SIPLACE TX
Shuttle Extension Edition 11/2018 3.3 Assembly kit and mechanical connection
45

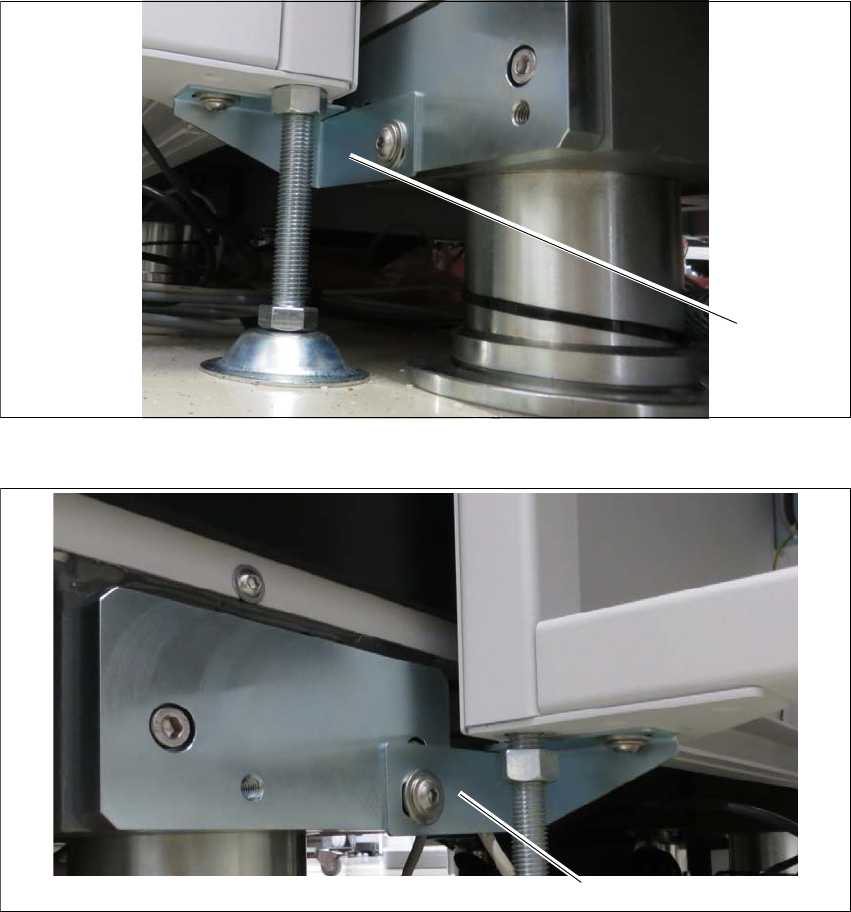

Interface brackets on output shuttle extension side 3
Fig. 3.3 - 10 Interface brackets on output conveyor - left side
Fig. 3.3 - 11 Interface brackets on output conveyor - right side
(1) Interface bracket output conveyor - left side
(2) Interface bracket output conveyor - right side
(1)
(2)
