Assembly and Instruction Manual 5 Calibration
Shuttle Extension Edition 11/2018 5.1 Machine configuration
61
5.1.1 Update of embedded software
If necessary, you have to update the embedded software of the shuttle extension.
Click Service (1) icon from the station GUI tool bar.
Click Update subsystem icon (2).

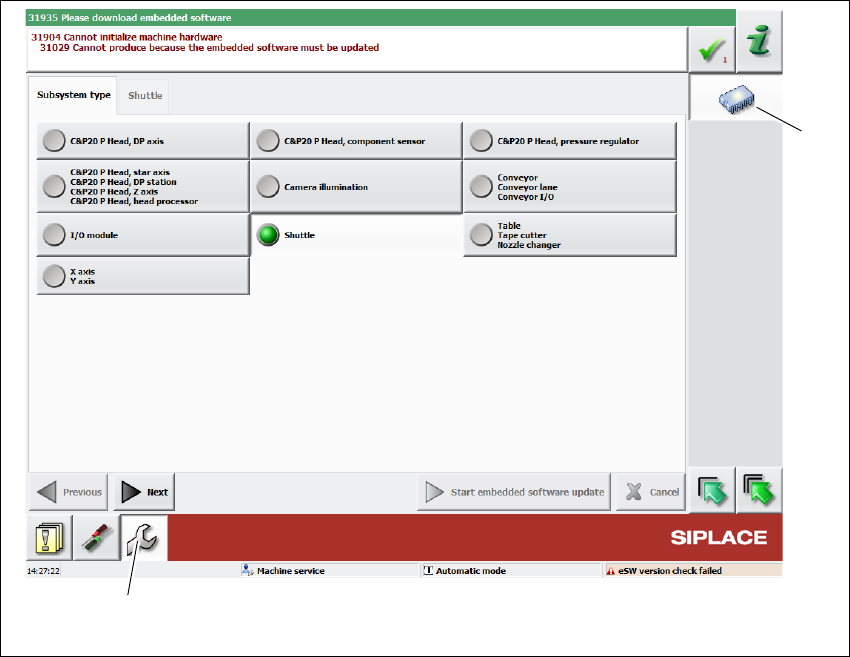

Fig. 5.1 - 3 Station software - update the embedded software of the shuttle extension
Select the Subsystem Type => Shuttle.
Click Start embedded software update and follows the installation steps.
(1)
(1)
5 Calibration Assembly and Instruction Manual
5.2 Perform Calibration Shuttle Extension Edition 11/2018
62
5.2 Perform Calibration
Click Service (1) icon from the station GUI tool bar.
Fig. 5.2 - 1 Station Software - "Service" view
Click Single calibration icon (2).
(1)
(2)
Assembly and Instruction Manual 5 Calibration
Shuttle Extension Edition 11/2018 5.2 Perform Calibration
63
Fig. 5.2 - 2 Station Software - ""Single calibration" view
Click the Shuttle calibration icon (1 or 2).
– Icon 1: Shuttle at output side
– Icon 2: Shuttle at input side
(2)
(1)
