7 Barcode reader extension
7.1 Description and overview
The barcode reader extension is an additional option for reading barcodes. The barcode reader
extension is attached to the shuttle extension, on the conveyor input side of the SIPLACE ma
-
chine.
7
Fig. 7.1 - 1 Shuttle extension with barcode reader extension - configuration example on the SIPLACE TX
(1) Barcode reader extension on shuttle extension
(2) Shuttle extension on SIPLACE TX input conveyor
(3) Shuttle extension on SIPLACE TX output conveyor
(4) SIPLACE TX placement machine
(1)
(3)
(4)
(2)
7 Barcode reader extension Assembly and Instruction Manual
7.1 Description and overview Shuttle Extension Edition 11/2018
74
7.1.1 Footprint
7

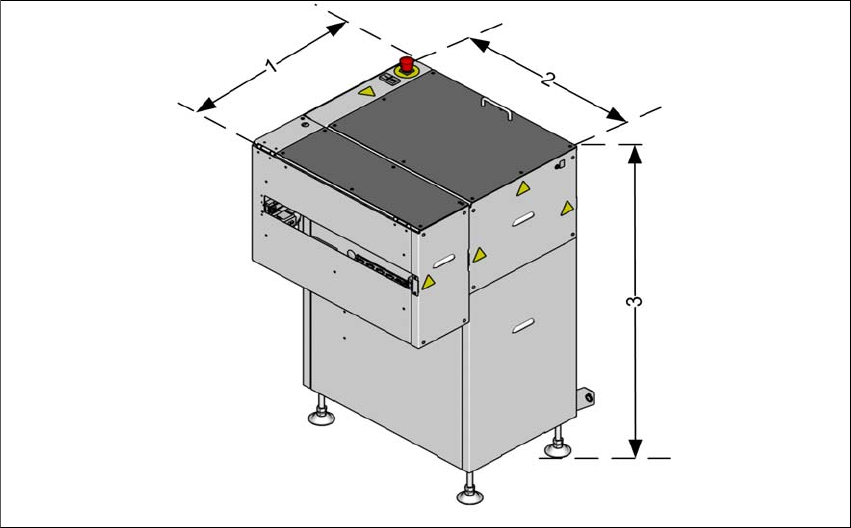

Fig. 7.1 - 2 Shuttle extension with barcode reader extension
footprint
(1) Width
(2) Length
(3) Height
Assembly and Instruction Manual 7 Barcode reader extension
Shuttle Extension Edition 11/2018 7.2 Safety
75
7.2 Safety
7.2.1 Warning labels
7

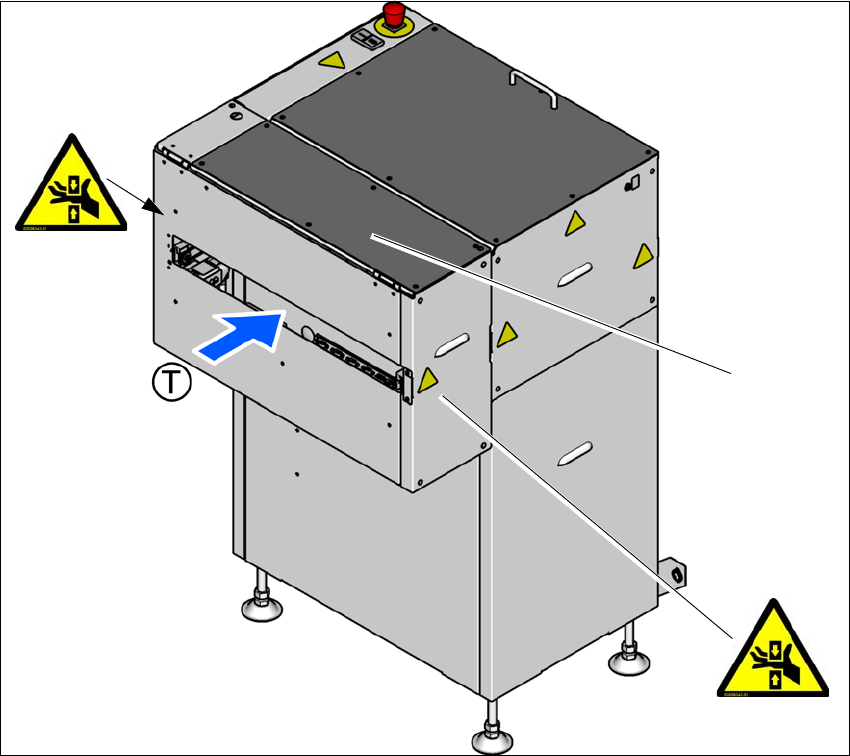

Fig. 7.2 - 1 Shuttle extension with barcode reader extension
(T) Direction of travel to SIPLACE TX input conveyor
(1) Barcode reader extension on shuttle extension
Item W 203, item no. 03009342-xx (on both sides)
W 203
W 203
(1)
