Assembly and Instruction Manual 2 Oper ational safety Shuttle Extension Edition 11/2018 2.3 Safety 31 Function 2 If the top cover is opened upwards, the SIPLACE TX, SX1/SX2 V2 will automatically stop and the power will b…
2 Operational safety Assembly and Instruction Manual
2.3 Safety Shuttle Extension Edition 11/2018
30
2.3 Safety
2.3.1 Top cover
The board conveyor is covered with a movable top cover. The top cover and covers serve as pro
-
tective devices which prevent unauthorized access to the inside of the shuttle extension.
2
2

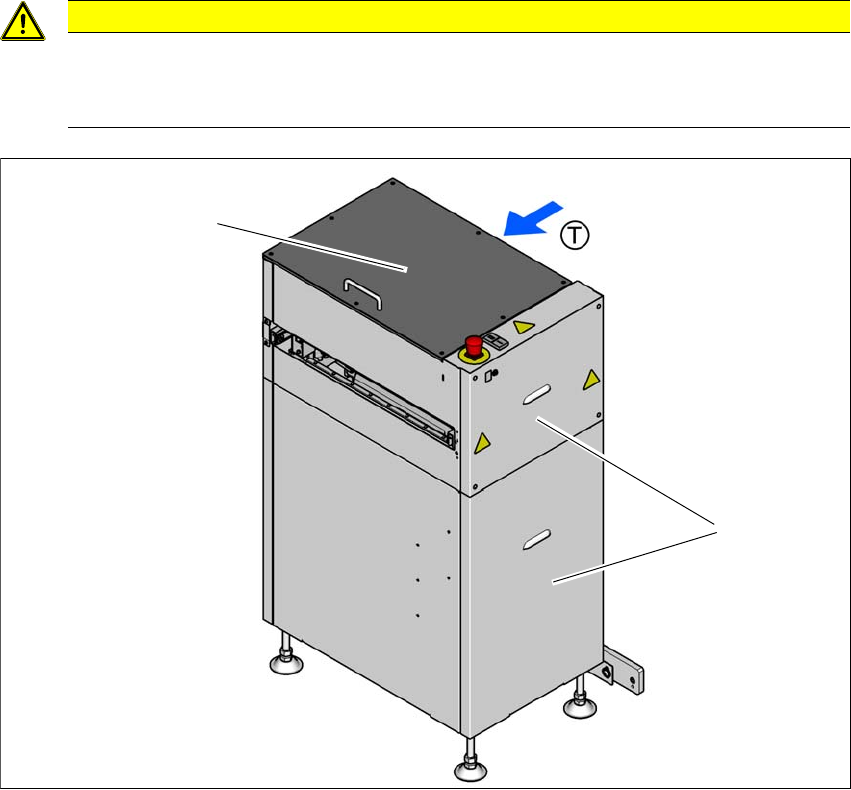

Fig. 2.3 - 1 Top cover and protective covers
(1) Top cover
(2) Protective covers (on both sides)
(T) Direction of travel
CAUTION
Risk of damage!
The top cover and other covers could be damaged if too much force is exerted.
Do not stand on or climb up the top cover and other covers.
(1)
(2)
Assembly and Instruction Manual 2 Operational safety
Shuttle Extension Edition 11/2018 2.3 Safety
31
Function 2
If the top cover is opened upwards, the SIPLACE TX, SX1/SX2 V2 will automatically stop and the
power will be disconnected. A message will appear in the station software for the SIPLACE ma
-
chine.
Close the top cover and press the START button (item 2 in fig. 2.3 - 2), to continue operation.
2.3.2 Switches and buttons
2.3.2.1 Positions of switches and buttons
2

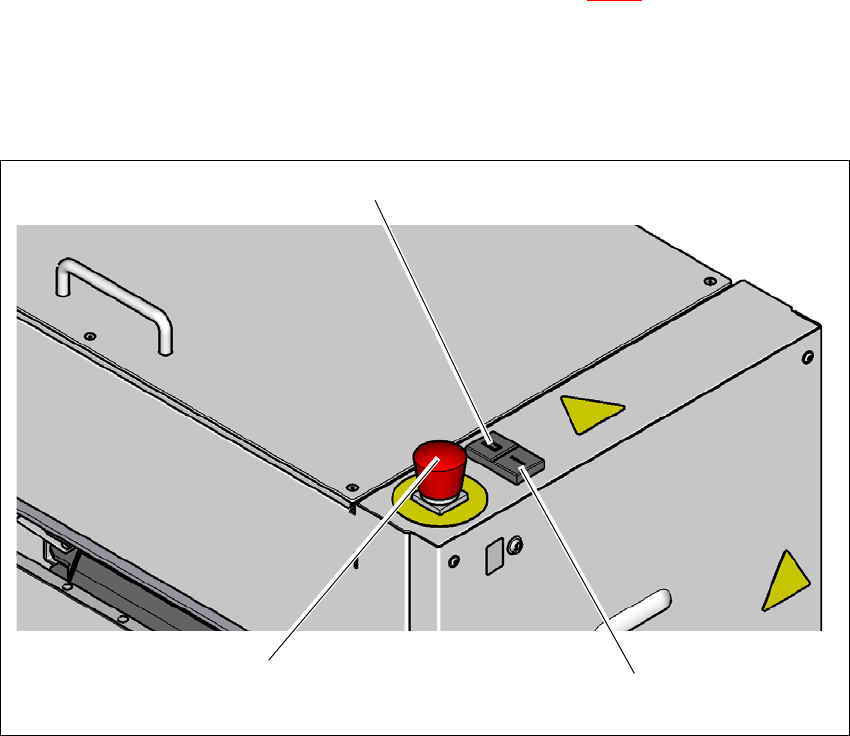

Fig. 2.3 - 2 Position of switches and buttons
(1) Stop button (black)
(2) Start button (green)
(3) EMERGENCY STOP button
(3)
(1)
(2)
2 Operational safety Assembly and Instruction Manual
2.3 Safety Shuttle Extension Edition 11/2018
32
2.3.2.2 Position of protective switch
2

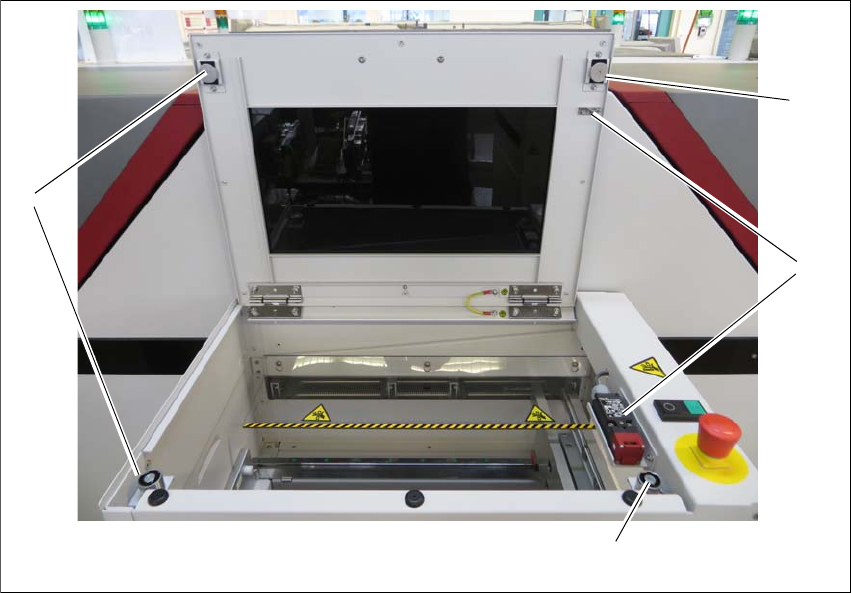

Fig. 2.3 - 3 Position of protective switch
(1) Electromagnetic lock
(2) Top cover protective switch
The top cover switches are mechanically locked during placement machine operation. The pro
-
tective covers can only be opened once the stop button has been pressed.
(1)
(1)
(2)
(1)
