7 Barcode reader extension Assembly and Instruction Manual

7.4 Assembly Instruction Shuttle Extension Edition 11/2018

7.4.7 Step 7

 Place 03153427- safety mark 9x600mm onto the shuttle machine frame on the input side

only.

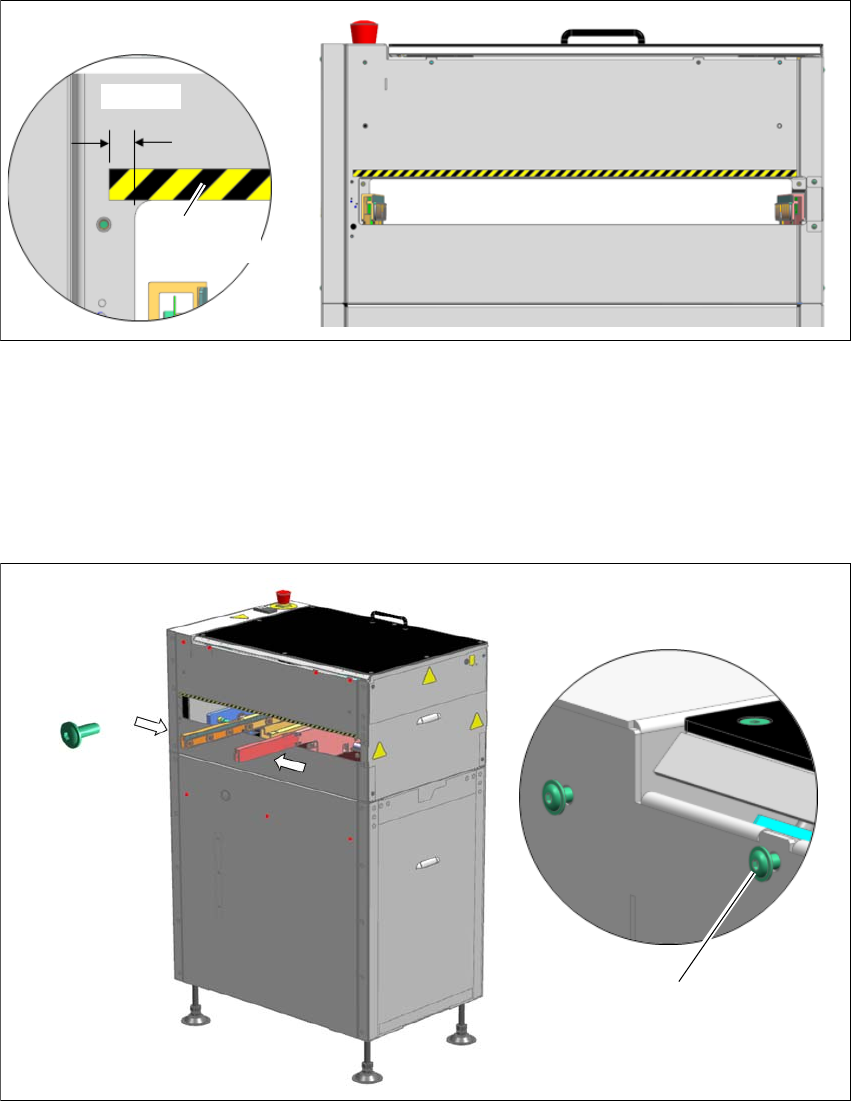

Fig. 7.4 - 7 Step 7

7.4.8 Step 8

 Mount 7x button head screws 03099579- ISO7380-2 M4x10-A2-70 onto the machine frame

and fasten them loosely so that barcode reader cover can slide through the key holes.

 Move the conveyor rails towards the center of the shuttle extension for easier cover insertion.

Fig. 7.4 - 8 Step 8

Aligned flush

7.5 mm

Fasten screws loosley to allow

cover insertion

7x 03099579

ISO7380-2 M4x10

Assembly and Instruction Manual 7 Barcode reader extension

Shuttle Extension Edition 11/2018 7.4 Assembly Instruction

7.4.9 Step 9

 Insert (1) the pre-assembled barcode reader extension kit and slide (2) to the right through

the 7x key holes.

 Fasten the 7x button head screws.

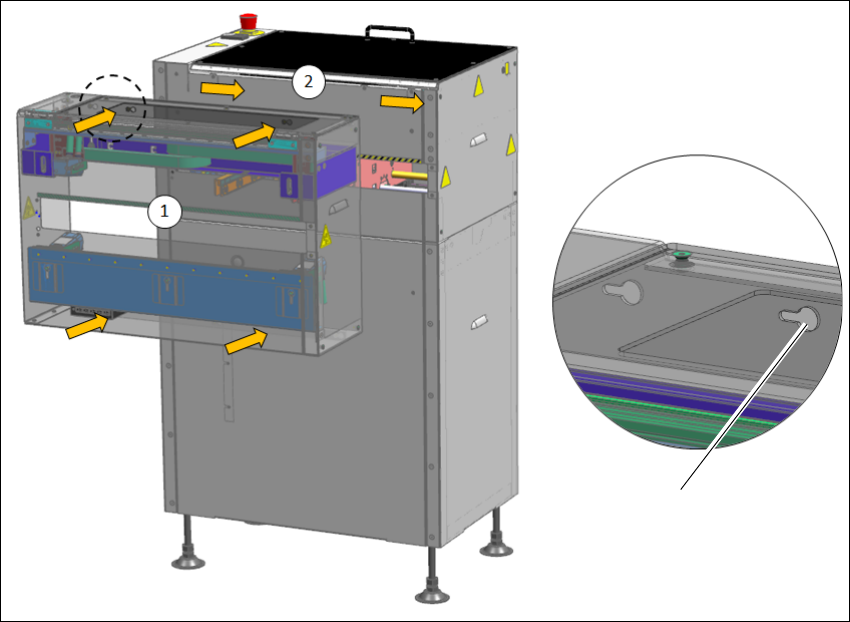

Fig. 7.4 - 9 Step 9

7x Key holes

7 Barcode reader extension Assembly and Instruction Manual

7.4 Assembly Instruction Shuttle Extension Edition 11/2018

7.4.10 Step 10

 Fasten 2x cap screws 03042560- ISO4762-M5x10 and 2x 03042560- ISO7093-1 M5 washer

to secure 03130795- Assembly kit PCB barcode top in place.

Fig. 7.4 - 10 Step 10

2x 03022708

ISO7093-1 M5 washer

2x 03042560

ISO4762-M5x10
