2 Operational safety Assembly and Instruction Manual 2.3 Safety Shuttle Extension Edition 11/2018 30 2.3 Safety 2.3.1 Top cover The board conveyor is covered with a movable top cover. The top cover a nd covers serve as p…
Assembly and Instruction Manual 2 Operational safety
Shuttle Extension Edition 11/2018 2.2 Warning labels
29

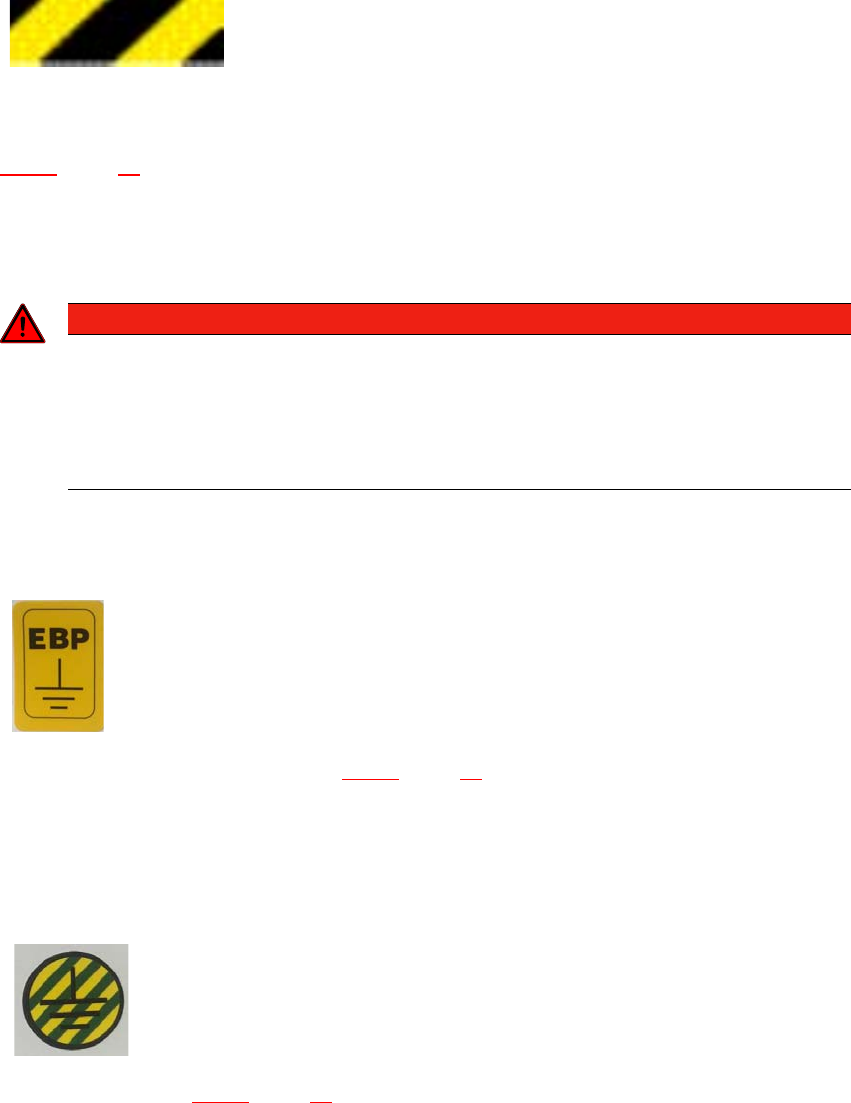

2.2.4 Warning strips on the hand guard of the conveyor
2
A black-yellow warning strip is attached to the hand guard, above the conveyor. Item 1 in the fig.
2.2 - 4
, page 27.
(Quantity per shuttle extension: 2)
This warns the operator not to reach into the inside of the neighboring machine.
2
2.2.5 Label - External grounding point
2
Label - External grounding point in fig. 2.2 - 3, page 26, item no. 00359574-xx
(Quantity per shuttle extension: 1)
2.2.6 Label - ground
2
Label - Ground in fig. 2.2 - 3, page 26, item no. 00359574-xx
(Quantity per shuttle extension: 1)
DANGER
Risk of injury when top cover open!
There is a risk of injuries if you reach into the hazard area of the
neighboring machine
when the top cover is open. This area is marked with black-and-yellow warning strips.
Take care not to reach into the hazard area of the neighboring machine when the top
cover is open.
2
2
2
Risk of hand injuries (crushing) over an extensive area
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the inside of the neighboring machine.
2
2
2
External grounding point
Please observe chapter 2.5 ESD guidelines.
2
2
2
Ground
All ground termination points must be connected.
2 Operational safety Assembly and Instruction Manual
2.3 Safety Shuttle Extension Edition 11/2018
30
2.3 Safety
2.3.1 Top cover
The board conveyor is covered with a movable top cover. The top cover and covers serve as pro
-
tective devices which prevent unauthorized access to the inside of the shuttle extension.
2
2
Fig. 2.3 - 1 Top cover and protective covers
(1) Top cover
(2) Protective covers (on both sides)
(T) Direction of travel
CAUTION
Risk of damage!
The top cover and other covers could be damaged if too much force is exerted.
Do not stand on or climb up the top cover and other covers.
(1)
(2)
Assembly and Instruction Manual 2 Operational safety
Shuttle Extension Edition 11/2018 2.3 Safety
31
Function 2
If the top cover is opened upwards, the SIPLACE TX, SX1/SX2 V2 will automatically stop and the
power will be disconnected. A message will appear in the station software for the SIPLACE ma
-
chine.
Close the top cover and press the START button (item 2 in fig. 2.3 - 2), to continue operation.
2.3.2 Switches and buttons
2.3.2.1 Positions of switches and buttons
2
Fig. 2.3 - 2 Position of switches and buttons
(1) Stop button (black)
(2) Start button (green)
(3) EMERGENCY STOP button
(3)
(1)
(2)
