5 Calibration Assembly and Instruction Manual 5.2 Perform Calibration Shuttle Extension Edition 11/2018 64 Step 1: Calibrating the width 5 To ensur e that the board can be taken a ccurately fro m the prev i ous machine a…
Assembly and Instruction Manual 5 Calibration
Shuttle Extension Edition 11/2018 5.2 Perform Calibration
63

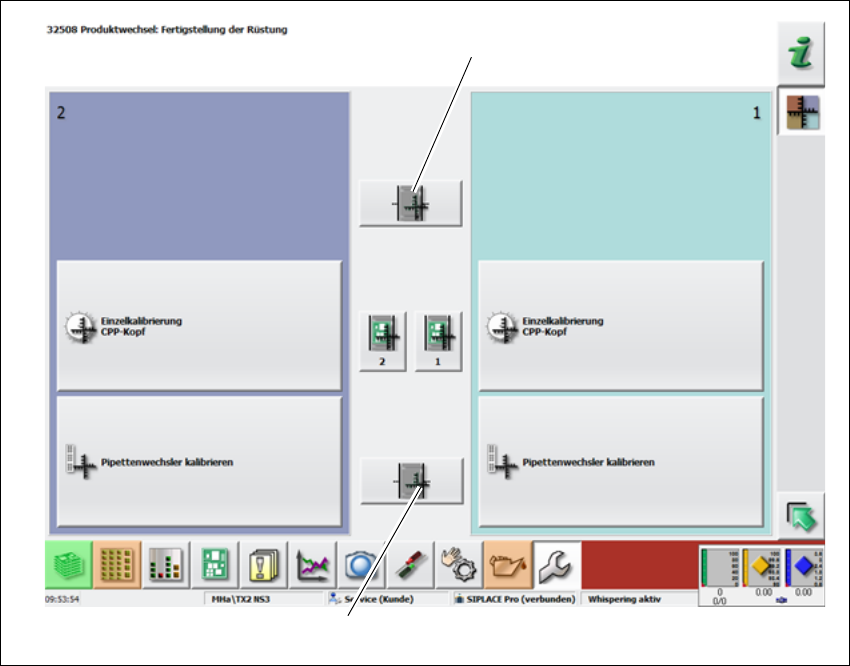

Fig. 5.2 - 2 Station Software - ""Single calibration" view
Click the Shuttle calibration icon (1 or 2).
– Icon 1: Shuttle at output side
– Icon 2: Shuttle at input side
(2)
(1)
5 Calibration Assembly and Instruction Manual
5.2 Perform Calibration Shuttle Extension Edition 11/2018
64
Step 1: Calibrating the width 5
To ensure that the board can be taken accurately from the previous machine and transported to
the next machine, the conveyor for the shuttle extension must be exactly configured to the width
of the board. Make sure that the board can be moved freely but does not have too much play.

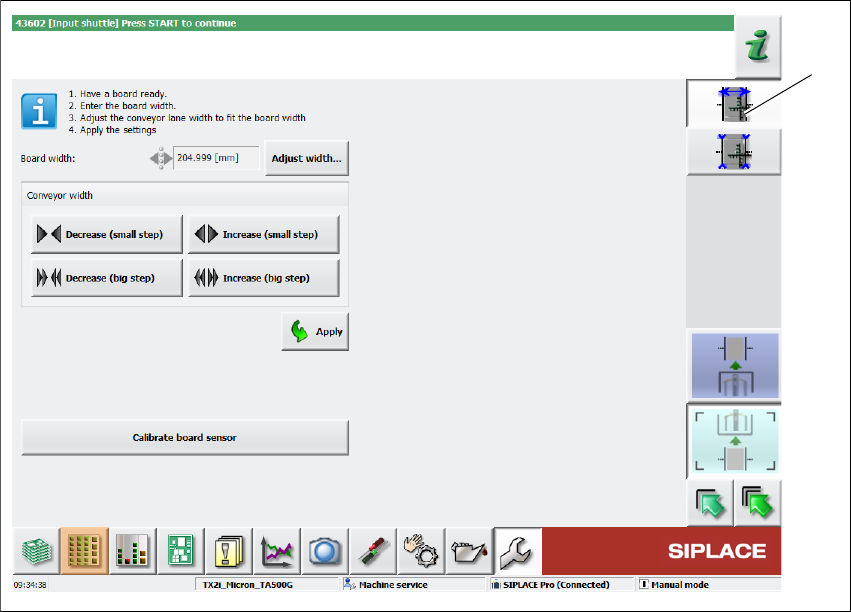

Fig. 5.2 - 3 Station Software - "Width Calibration" view
Click Width Calibration icon (1).
Get a board ready.
Select the Adjust width... button, specify the width of the board present and select the Start
button.
Place a board in the shuttle extension and use the Decrease / Increase buttons to set the
width so that the board can be freely moved in the conveyor.
Select the Apply button.
Optional: How to calibrate the board sensor
Make sure that there is no board left in the shuttle extension.
Select the Calibrate board sensor button.
(1)
Assembly and Instruction Manual 5 Calibration
Shuttle Extension Edition 11/2018 5.2 Perform Calibration
65
Step 2: Aligning the fixed rail 5
To make sure that the board can be taken accurately out of the previous machine and transported
to the next machine, the conveyor of the
shuttle extension must be precisely positioned at every
movement. To ensure that this works perfectly when transferring from the previous machine and
when transporting to the next machine, the conveyor must be aligned at each fixed rail and the
result saved.
Fig. 5.2 - 4 Station software - "calibrate fixed rail" view (example)
Select the Calibrate fixed rail icon(1).
Select the conveyor side which should be aligned with the fixed rail of this machine.
If the position of the relevant conveyor edge for the shuttle extension corresponds to the cur-
rently selected fixed conveyor edge (2), complete the calibration process with the
Apply but-
ton. The position will be saved.
5
Push in the board and use the buttons (move shuttle) to adjust, until the board can be moved
by the shuttle to the adjacent machine and until the conveyor rails are aligned with one an
-
other.
Repeat the steps for each of the other fixed conveyor edges on the previous and this ma
-
chine.
(1)
(2)
