7 Barcode reader extension Assembly and Instruction Manual
7.4 Assembly Instruction Shuttle Extension Edition 11/2018
84
7.4.10 Step 10
Fasten 2x cap screws 03042560- ISO4762-M5x10 and 2x 03042560- ISO7093-1 M5 washer
to secure 03130795- Assembly kit PCB barcode top in place.
7
Fig. 7.4 - 10 Step 10
2x 03022708
ISO7093-1 M5 washer
2x 03042560
ISO4762-M5x10
Assembly and Instruction Manual 7 Barcode reader extension
Shuttle Extension Edition 11/2018 7.4 Assembly Instruction
85

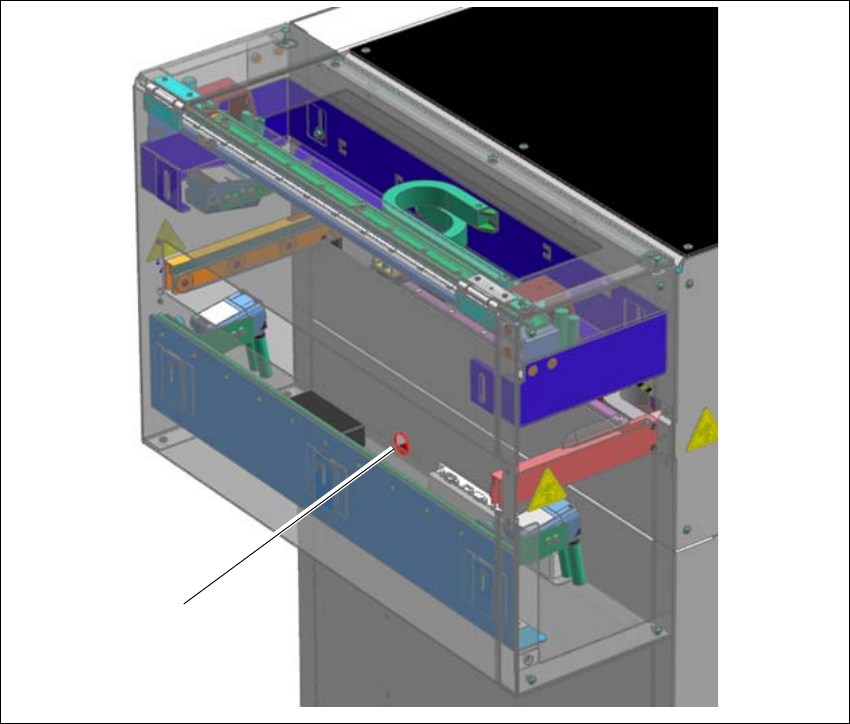

7.4.11 Step 11
Route cable assembly 03123643- to the shuttle extension's TSP420, and LAN cable
03152764- to the SIPLACE TX RJ45 adapter through the hole (1).
7
Fig. 7.4 - 11 Step 11
(1)
7 Barcode reader extension Assembly and Instruction Manual
7.4 Assembly Instruction Shuttle Extension Edition 11/2018
86
7.4.12 Step 12
7
7

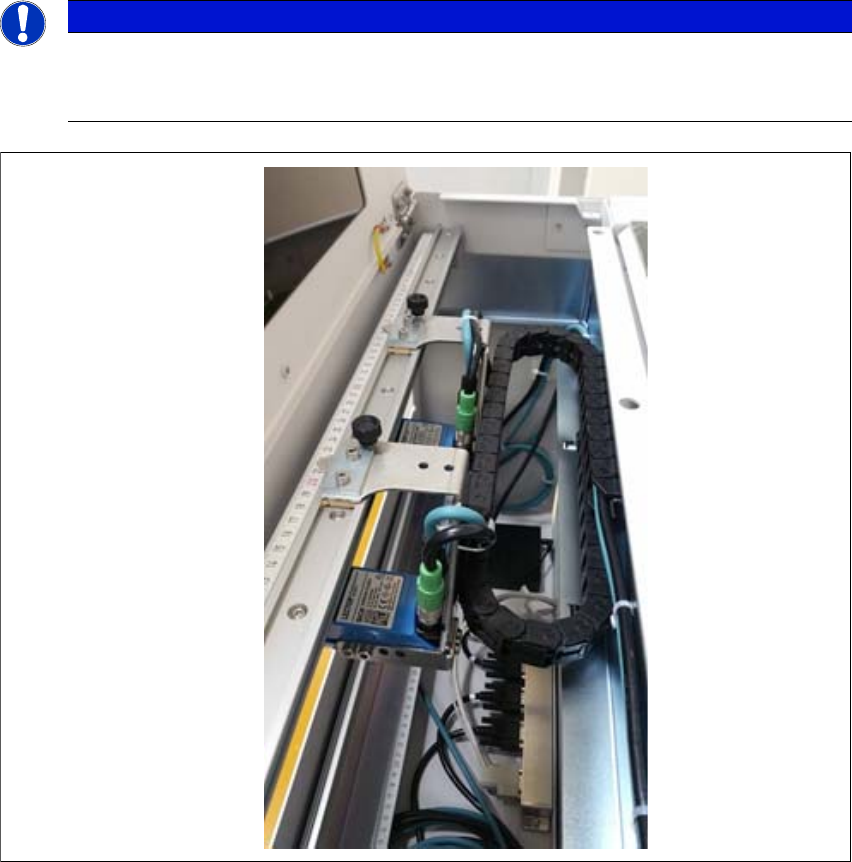

Fig. 7.4 - 12
Barcode readers - example
PLEASE NOTE
Barcode readers will be assembled according to customers order
The number of barcode readers is fitted according to the customer order. The maximum
number of barcode readers is 4 per assembly kit.
