Assembly and Instruction Manual 7 Barcode reader extension
Shuttle Extension Edition 11/2018 7.3 Scope of delivery
77
7.3 Scope of delivery
– Barcode reader extension kit cpl.: [Item no.: 03158729-xx]
– Extension 207_right cpl. (prefitted) [Item no.: 03149504-xx]
– Extension 207_left cpl. (prefitted) [Item no.: 03149503-xx]
– Barcode reader ext. Cover BG[Item no.: 03135848-xx]
– ISO 7380-2 M 4 x 10-A2-70 [Item no.: 03099579-xx]
– Safety mark 9 x 600 mm [Item no.: 03153427-xx]
– ISO 7093-1 - 5 - 200 HV - A2 [Item no.: 03022708-xx]
– ISO 4762 - M 5 x 10-A2-70 [Item no.: 03042560-xx]
– ISO 4762 - M 5 x 6-A2-70 [Item no.: 03082905-xx]
– Klettostar velcro fastening 90 mm [Item no.: 03157157-xx]
– Ethernet Switch 5-port with modif. Cable [Item no.: 03152110-xx]
– Cable: BC scanner power pack and control [Item no.: 03123643-xx]
– Cable: Control computer LAN 3 [Item no.: 03148161-xx]
– RJ45 adapter snap-in Bu - Bu shielded [Item no.: 03098672-xx]
– LAN card PCI Express 2x Gigabit LAN [Item no.: 03118416-xx]
– Cable: LAN PC - adapter - shuttle TX [Item no.: 03152764-xx]
– Ground cable for shuttle top cover [Item no.: 03151850-xx]
7.3.1 Overview - barcode reader extension kit assy.

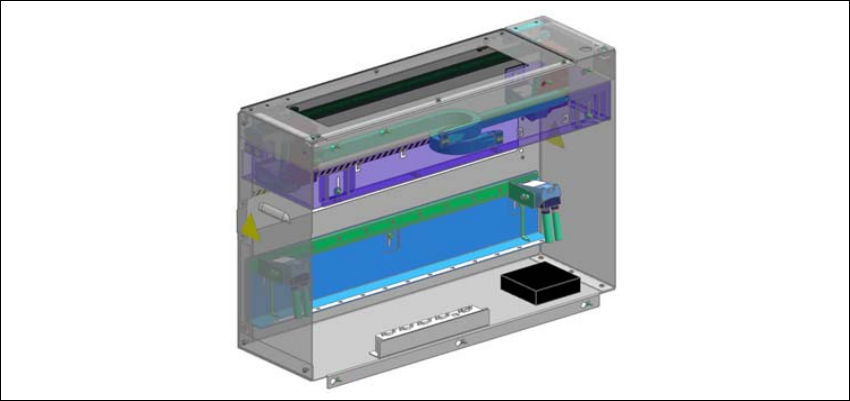

Fig. 7.3 - 1 Barcode reader extension kit assy.
7 Barcode reader extension Assembly and Instruction Manual
7.3 Scope of delivery Shuttle Extension Edition 11/2018
78
7.3.2 Shuttle extension loose parts
– Plug d24.8 D31.5 LDPE normal [Item no.: 03154892-0101
7
7

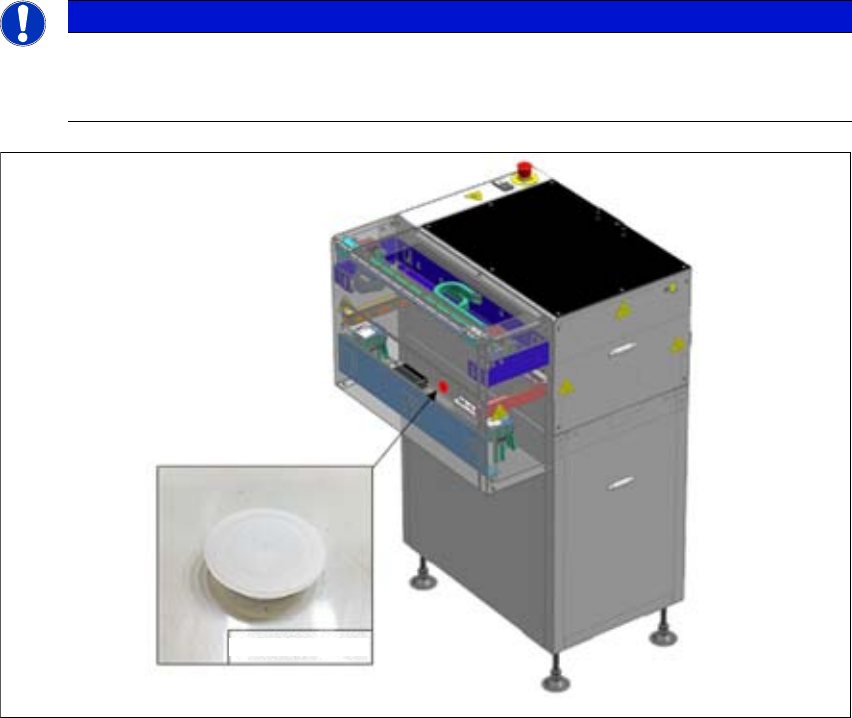

Fig. 7.3 - 2 Remove the barrel plug
PLEASE NOTE
Remove the barrel plug
When the barcode reader extension is integrated onto the shuttle extension, this barrel
plug must be removed to allow cables routing.
03154892-0101
Assembly and Instruction Manual 7 Barcode reader extension
Shuttle Extension Edition 11/2018 7.4 Assembly Instruction
79
7.4 Assembly Instruction
7.4.1 Step 1
In order to mount barcode reader extension kit onto the shuttle extension, the following items must
be available.
– 03135848- barcode reader extension kit cpl. (Pre-assembled)
– 03149503- extension 207_left assy.(Pre-assembled)
Fig. 7.4 - 1 Step 1
7.4.2 Step 2
Remove dowel pin (1) from shuttle conveyor, this is to allow the exchange of longer belt.
Loosen pulley (2) to release belt tension and remove conveyor belt.

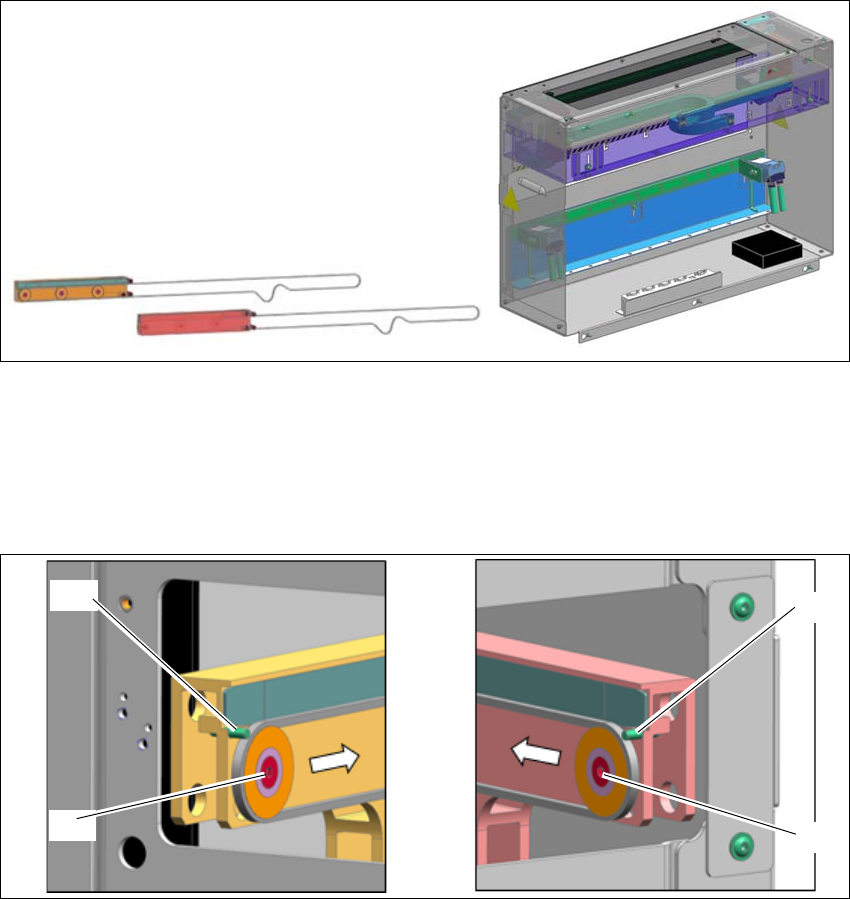

Fig. 7.4 - 2 Step 2
(1)
(2)
(1)
(2)
