Operation 5-19

5.14 Filling the Fluid Reservoir

CAUTION! Make sure to observe the fluid level indicator. Never let the coating system run

out of fluid as this may damage the coating applicator.

To fill the Fluid Reservoir:

1. Turn the Reservoir Air Pressure Switch to the OFF

(0) position.

2. Relieve residual pressure in the fluid system by opening the Pressure Relief Valve on the

Fluid Reservoir.

3. Open the lid and check that the reservoir is clean and free from foreign materials.

WARNING! CAUTION!

Solvent vapors may be released when the lid is open. Always wear appropriate

personal protective equipment (PPE) as recommended by facility safety practices

and the material manufacturer’s MSDS.

4. Add fluid up to a maximum of 50 mm (2 in.) below the rim of the opening.

5. Close the lid immediately after filling.

Item Description

1 Reservoir Air Pressure Switch

2 Pressure Relief Valve

3 Fluid Reservoir

Figure 5-12 Filling the Fluid Reservoir

5-20 Operation

5.15 Changing Material/Flushing Fluid System

WARNING! CAUTION!

Follow MSDS recommendations for the proper handling and disposal of all

materials when changing material/flushing fluid system. Always wear appropriate

personal protective equipment (PPE) as recommended by facility safety practices

and the material manufacturer’s MSDS.

To change material and flush the fluid system:

1. If applicable, turn off the heater and allow the fluid to cool for at least fifteen minutes.

 To speed up the cooling process, you may circulate the material. The temperature can be

monitored in the Temperature Sense Window (Figure 5-13) in ECXP.

 NOTE To view the Temperature Sense Window, the option must be activated in ECXP. See the

ECXP User Guide for instructions.

Figure 5-13 ECXP Temperature Sense Window

2. Reduce fluid air pressure to 7 psi (48 kPa).

 Refer to 5.10.3 Fluid Pressure Regulator and Gauge for instructions on adjusting

fluid pressure.

3. Open the purge and filter drain valves.

4. If applicable, adjust the main air pressure to allow the diaphragm pump (Figure 5-14) to

stroke slowly.

 The material will drain into the reservoir.

5. When the system is empty, stop the pump by reducing the main air pressure to zero.

6. Flush the system with solvent as described below:

a. Connect the siphoning hose to a container filled with 0.75 liter (1 quart) of solvent.

b. Put the drain hose into the waste container.

c. Start the pump by increasing the main air pressure.

 The solvent will purge residual material out of the system.

d. Close the purge valve.

Operation 5-21

 NOTE If you are using a circulating coating applicator, such as the SC-104HS or SC-105HS,

perform Steps e to g to circulate the material. Otherwise, skip to Step 7.

e. Close the filter drain valve.

f. Open the circulation valve by turning it counterclockwise so the circulation rate is

approximately 20 cycles/minute.

g. Purge the coating applicator several times.

 NOTE A purge program is necessary to properly purge the film coater before and after use. A

purge routine is included in the software. For assistance in writing a routine, refer to the

Easy Coat User Guide or contact your Asymtek representative.

7. Clean the reservoir and fill it with new material.

8. Empty the fluid system and check the fluid filter.

9. Prime the fluid system with new material.

 NOTE Check that all residual solvent was purged into the waste container by the new material.

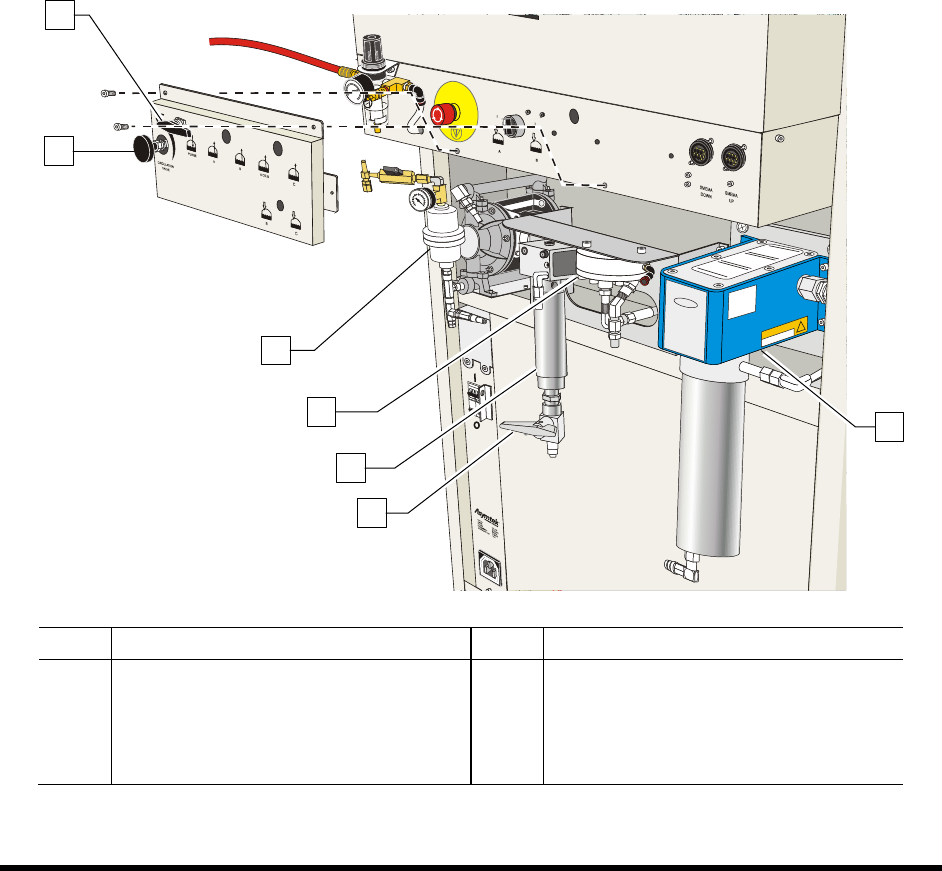

Item Description Item Description

1 Purge Valve 5 Filter Assembly

2 Circulation Valve 6 Filter Drain Valve

3 Pump 7 Fluid Heater

4 Fluid Regulator

Figure 5-14 Fluid System (VCS System shown)
