9-10 Parts Replacement
9.10.2 Fluid System Heater Fuse
To replace the Fluid System Heater Fuse:
1. Perform a service shutdown as specified in 2.12 Service Shutdown.
2. With a flat head screwdriver, gently push in and turn the fuse holder counterclockwise until
the head of the fuse holder pops out enough to allow you to grasp it.
3. Pull the fuse holder out of its socket.
4. Remove and discard the damaged fuse.
5. Verify that you will be installing the correct replacement fuse and then insert the new fuse
into the fuse holder.
6. With a flat head screwdriver, simultaneously push and twist the fuse holder clockwise into
the socket until it locks into place.
7. Power on the dispensing system as described in 4.7 Powering on the System.

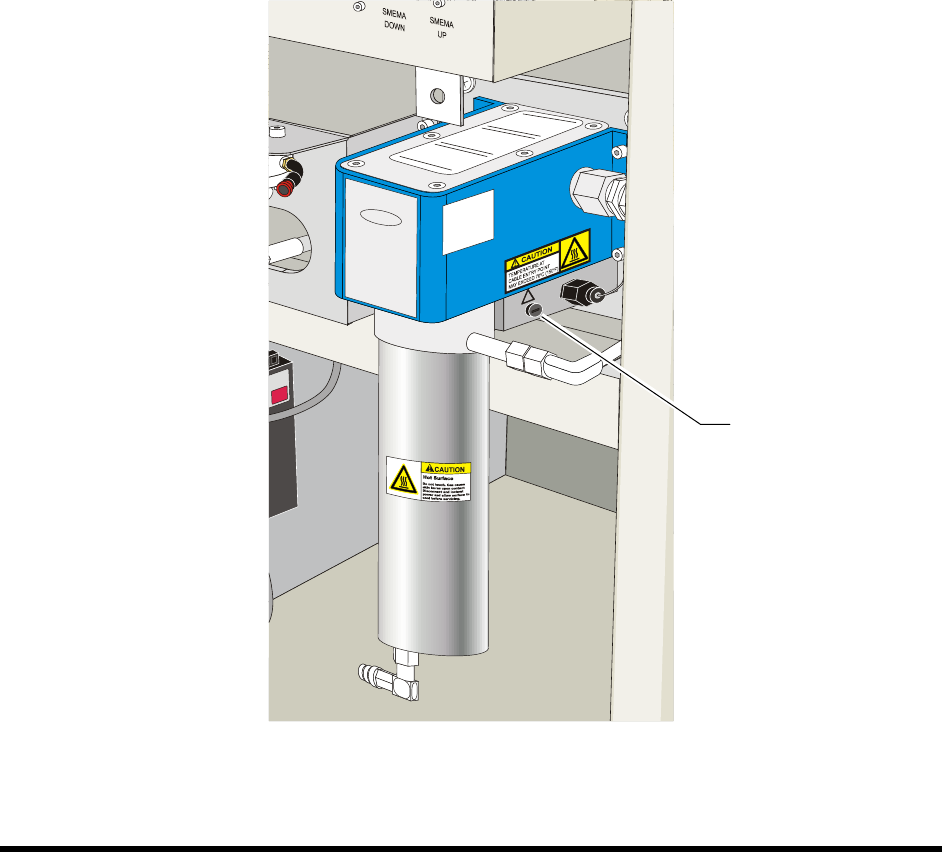

Figure 9-12 Fluid System Heater
Fuse Location
Specifications 10-1
10 Specifications
10.1 Overview
Select Coat SL-940E/SL-941E Series Conformal Coating System facility requirements and specifications
are listed in Table 10-1 to Table 10-3. These specifications are intended as a convenient reference for
installation, system relocation, planning and operation. Meeting the requirements will ensure reliable
operation and safety of the coating system.
WARNING! CAUTION!
To ensure optimal performance and safety, it is necessary to install the coating
system in a facility that meets the requirements listed in Section 10 -
Specifications. If you have any questions, please contact Asymtek Technical
Support.
10.2 Facility Requirements
Table 10-1 Facility Requirements
Facility Requirements
System Footprint See Facilities Specification SL-94XE(P/N 7218847)
System Weight 426 Kg (940 lb. max)
Air Supply 620 kPa (90 psi. 6.2 Bar), up to 0.34 m
3
/min (12 SCFM)
Minimum Ventilation Rate 17 m
3
/min @ 25.4 mm water column (600 SCFM @ 1.0 in. water column)
Nitrogen Supply
410 kPa (60 psi, 4.1 Bar) @ 0.014 m
3
/min (0.5 SCFM); required for
moisture-sensitive materials only
Main Power Supply 200/240 VAC 50/60 Hz, 10A
Ambient Air Temperature 5-50 °C
Relative Humidity < 90% non-condensing
Altitude 1609 meters
10-2 Specifications
10.3 Specifications
Table 10-2 Specifications
Specifications
Dispensing Area (Single Valve)
1
Without Camera:
With Camera:
500 x 440 mm (19.7 x 17.3 in.)
421 x 440 mm (16.6 x 17.3 in.)
Motion System
Type :
X-Y Velocity:
X-Y Acceleration:
Z Axis Velocity:
X-Y Repeatability:
Z-Axis Repeatability:
X-Y Resolution:
Z-Axis Resolution:
Positional Accuracy:
Closed-loop Servo Motors
1000 mm/s (39.4 in/s) maximum
1g peak with S-curves
250 mm/s (10 in./s)
±0.025 mm (0.001 in.), 3 sigma
±0.025 mm (0.001 in.), 3 sigma
0.010 mm (0.0004 in.), 3 sigma
0.025 mm (0.001 in.), 3 sigma
±0.075 mm (0.003 in.), 3 sigma
Conveyor
In-line:
Manual width adjustment:
Maximum Clearance:
Maximum Pallet/PCB Weight:
Standard chain conveyor with queue stop and pinning set
25 to 475 mm (1 to 18.7 in.)
100 mm (4 in.) above and below PCB
5 kg (11 lbs.)
Computer
Windows Based Laptop Computer with Dual Core
processor
DVD-ROM/CD-RW Drive
ASCII Keyboard and Touchpad
Software
User Environment: Easy Coat
©
for Windows XP
Operating System: Microsoft Windows
©
XP
Fluid Delivery Method
SC-10XHS High Speed Film Coater
SC-20XHS High Speed Non-Circulating Film Coater
SC-300 Swirl Coat Applicator
SC-400 Precise Coat Conformal Coating Jet
Energy Consumption
Idle: 320W
Peak: (heater not included) 456W
Peak: (single heater included) 1000W
Current Consumption 6A max (with single heater)
Air Consumption
Idle: 1.0 SCFM
Avg: 1.1 SCFM
Max: 3.0 SCFM
AIC Interrupt Capacity 10KA
Audible Noise Level <76 dB(A) peak, <71 dB(A) average
Ionizing and Non-ionizing Radiation N/A
Contaminants N/A
Residual Risks of Materials Used to
Construct Equipment
None
1
Note: Dual-toggle applicators reduce the total dispense area. Contact factory for specifics.
