Appendix C - Parts List C-8

C.4.5 Z-Head Components

Appendix C - Parts List C-9

C.4.5 Z-Head Components (Continued)

Item No. Part No. Description

1 7216276 BOARD PRESENCE SENSOR

2 198503 BELT,3MM PITCH,6WD,59 TOOTH

3 7209888 ASSY,940 Z-HEAD

4 198500 ROTARY ACTUATOR,0-180 DEG

5 7209606-2 CABLE,940 CAMERA CONTROL SGNLS

6 7209631 CABLE,HI FLEX CAT6 SHIELDED,7M

7 7209895 CAMERA,GIGA-E,NO S/W LICENSE

8 7212939 LENS EXTENSION,1.5MM,25MM ID

9 7218795 LENS,25MM F1.6"C"-MNT,LOCK

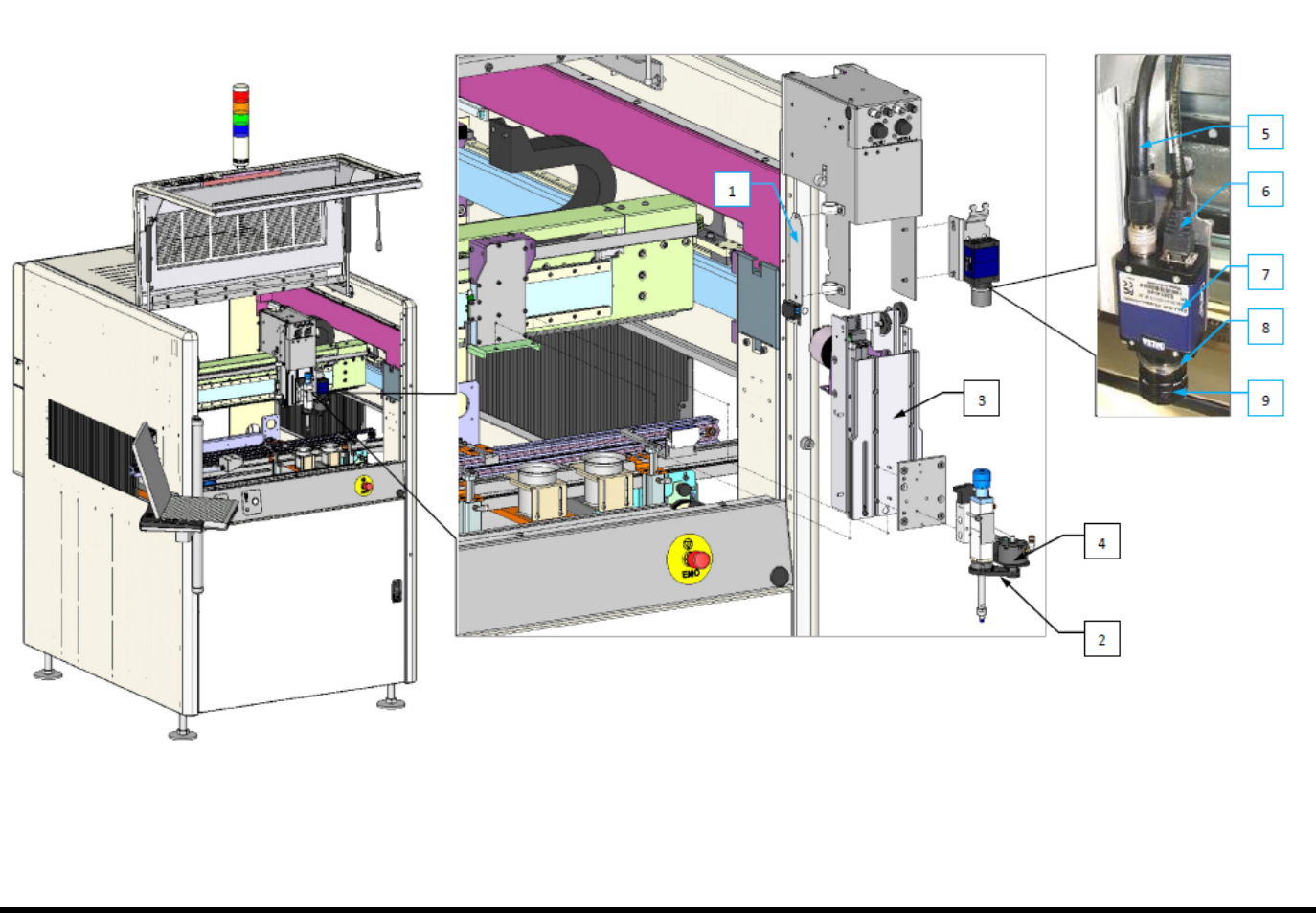

Figure C-5 Illustrated Parts List (Z-Head Components)

Appendix C - Parts List C-10

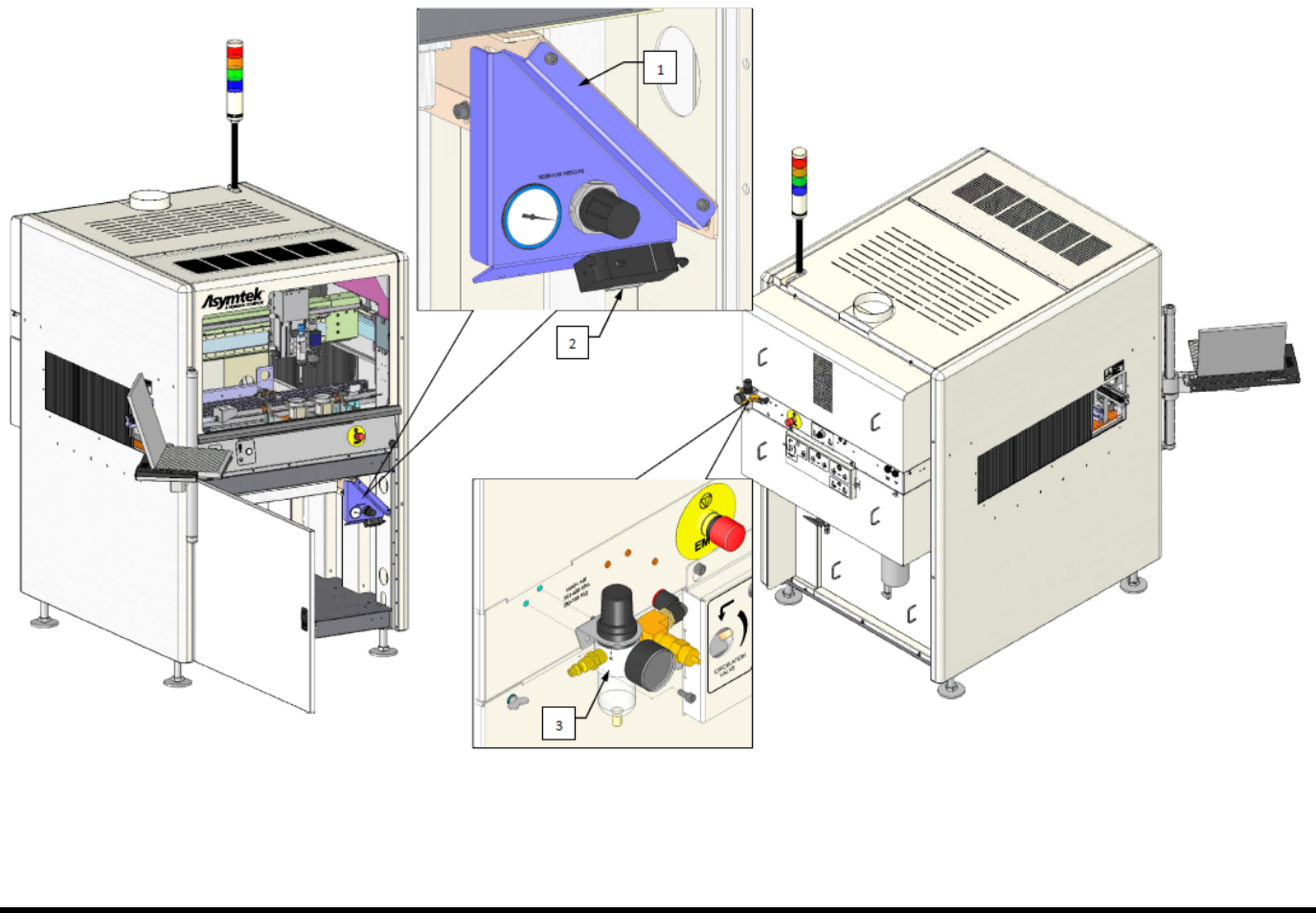

C.4.6 Regulators
