C.4.7 Fluid System

Appendix C - Parts List C-13

Item No. Part No. Description Comments

1 7209610 ASSY,10A CM POWER MANAGER

2 7209880 ASSY,CM SERVO POWER SUPPLY

3 7213880 ASSY,DIAPHRAM PUMP, 940

4 7211534 ASSY,FLUID FILTER,940

5 7211533 ASSY,FLUID REGULATOR,C940

6 7210788 ASSY,HEATER,NH-4,500W,940

7 161106 SCREEN,REINFORCED,.006 SHOWN

7 161104 SCREEN,REINFORCED,.004 NOT SHOWN

7 161103 SCREEN,REINFORCED .003 IN. NOT SHOWN

7 161102 SCREEN,REINFORCED,.002 NOT SHOWN

8 7211532 ASSY,RESERVOIR,1 GAL CIRC SHOWN

8 7212932 ASSY,RESERVOIR,1GAL,NON-CIRC NOT SHOWN

8 7214620 ASSY,RESERVOIR,5GAL,CIRC NOT SHOWN

8 7214621 ASSY,RESERVOIR,5GAL,NON-CIRC NOT SHOWN

9 7202755 VALVE,NEEDLE,SS,1/4,TUBE FTG

10 149836 VALVE,BALL 3-WAY,SS,1/4NPT

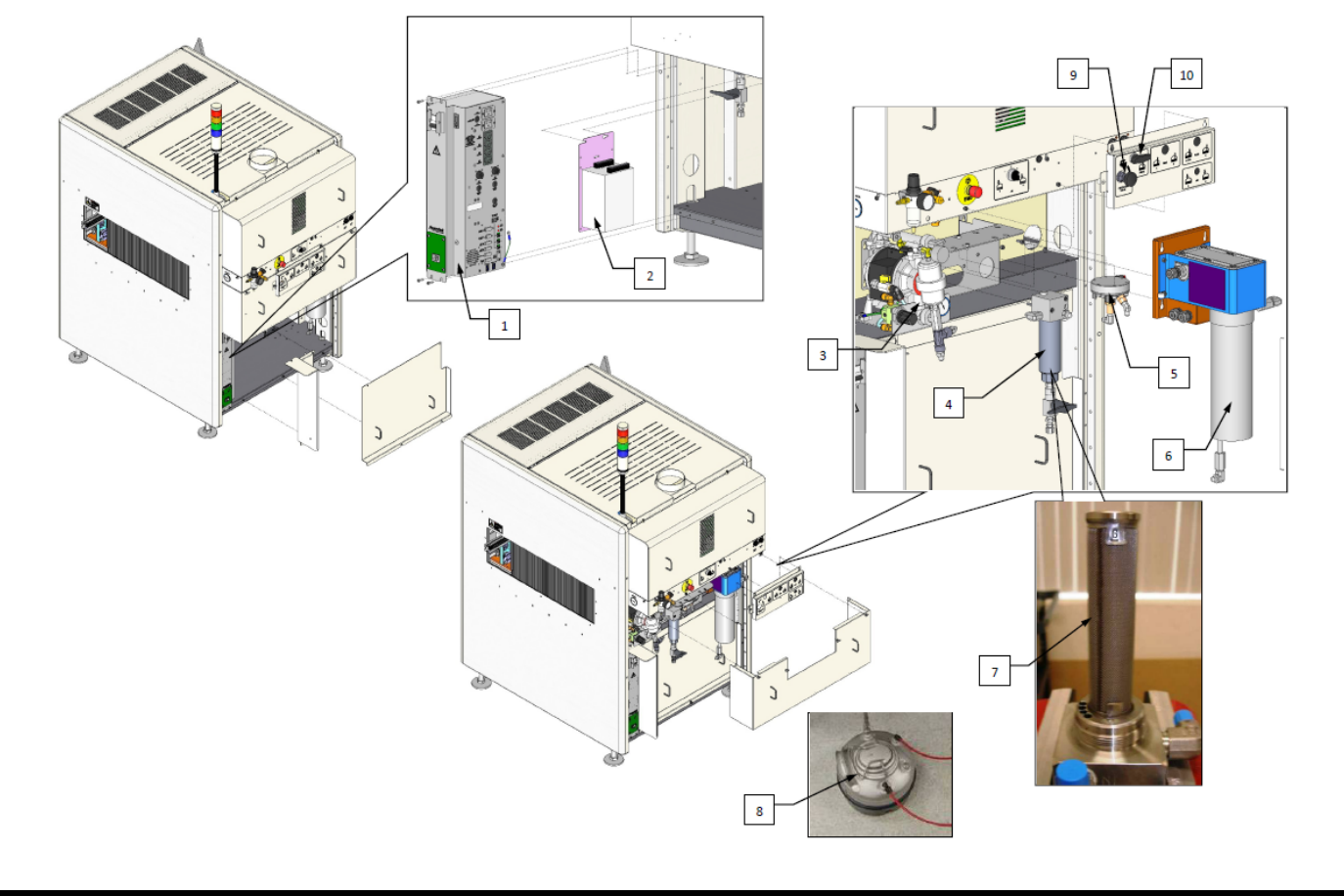

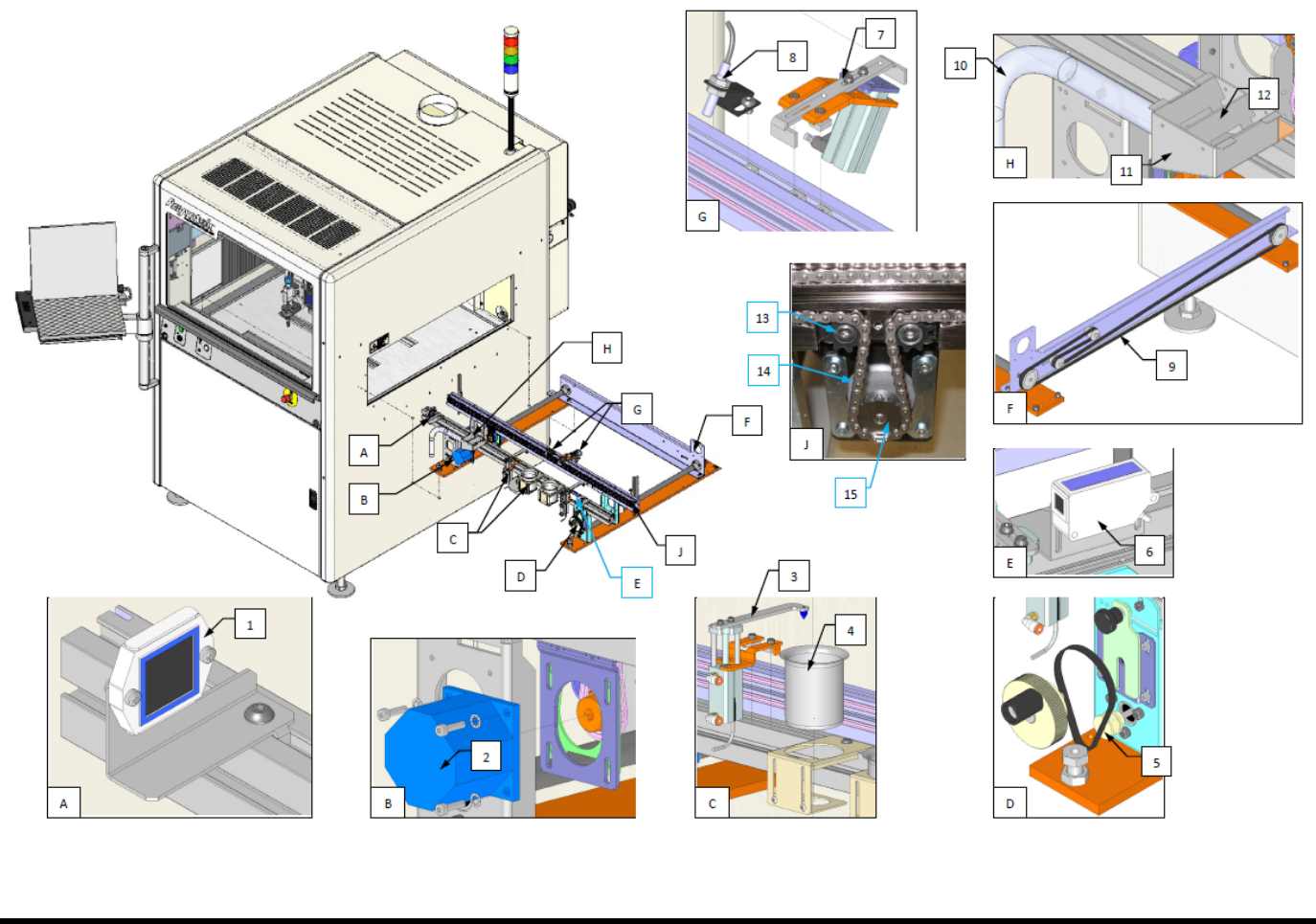

Figure C-7 Illustrated Parts List (Fluid System)
