A ppendix C - Parts List C-5 C.4.3 Hatch Components Item No. Part No. Description 1 7209435 SPRING ,GAS,90LB, 15.23"LO NG 2 7206882 ASSY,12V LED LIGHT 3 7209881 ASSY,FRONT PANEL,S - 940 4 7207570 SCREEN ,PLEAT ED,10…
Appendix C - Parts List C-4
C.4.2 Computer Components
Item No. Part No. Description
1 392175 BUMPER, RECESSED
2 7210720 ASSY,940, COMPUTER
3 7217167 ADAPTER,USB TO ETHERNET
4 7209129 HUB, USB 2.0,7 PORT
Figure C-2 Illustrated Parts List (Computer Components)
Appendix C - Parts List C-5
C.4.3 Hatch Components
Item No. Part No. Description
1 7209435 SPRING,GAS,90LB,15.23"LONG
2 7206882 ASSY,12V LED LIGHT
3 7209881 ASSY,FRONT PANEL,S-940
4 7207570 SCREEN,PLEATED,10*240*735
Figure C-3 Illustrated Parts List (Hatch Components)
Appendix C - Parts List C-6

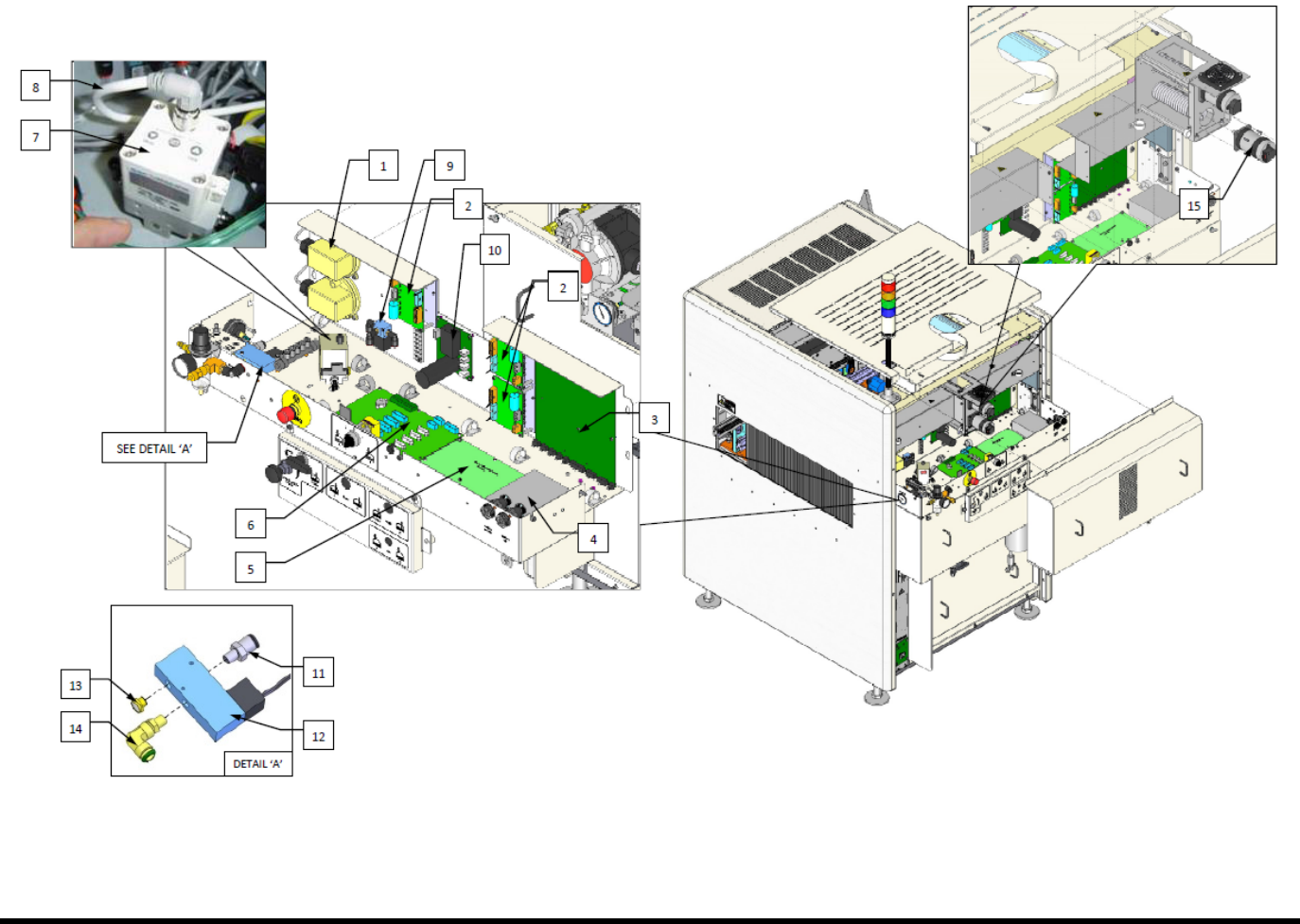

C.4.4 Electronics Components
