Appendix C - Parts List C-3
C.4.1 Safety Components
Item No. Part No. Description
1 7204797 SWITCH,INTERLOCK,AB"ELF"
2 198870 SWITCH,EMO ACTUATOR
3 7204799 ASSY,CM BEACON
Figure C-1 Illustrated Parts List (Safety Components)
Appendix C - Parts List C-4
C.4.2 Computer Components
Item No. Part No. Description
1 392175 BUMPER, RECESSED
2 7210720 ASSY,940, COMPUTER
3 7217167 ADAPTER,USB TO ETHERNET
4 7209129 HUB, USB 2.0,7 PORT
Figure C-2 Illustrated Parts List (Computer Components)
Appendix C - Parts List C-5
C.4.3 Hatch Components
Item No. Part No. Description
1 7209435 SPRING,GAS,90LB,15.23"LONG
2 7206882 ASSY,12V LED LIGHT
3 7209881 ASSY,FRONT PANEL,S-940
4 7207570 SCREEN,PLEATED,10*240*735

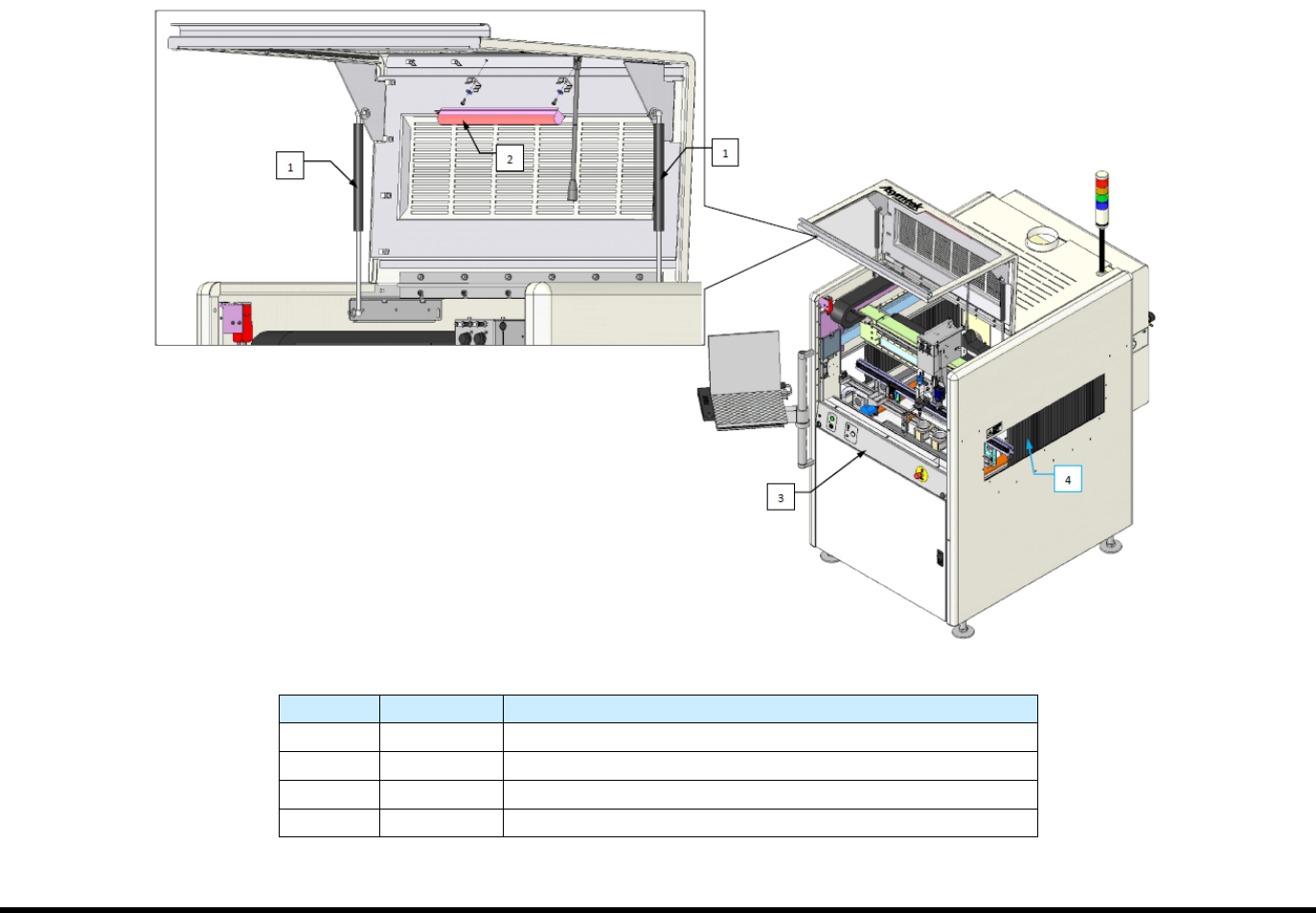

Figure C-3 Illustrated Parts List (Hatch Components)
