A ppendix C - Parts List C-3 C.4.1 Safety Components Item No. Part No. Description 1 7204797 S W ITCH,INTERLOCK,AB"ELF " 2 198870 S W ITCH,EMO ACTUATOR 3 7204799 ASSY ,CM BEACON Figure C-1 I llustr ated P arts …
C-2 Appendix C - Parts List
Table C-1 Spare Parts List
Part Number Description
7209606-2 Cable, 940 Light Source
7209631 Cable, Hi flex CAT6 shielded
7210782-1 Cable, Valve
7210783-1 Cable, Dispense Solenoids
7210785-1 Cable, Dispense Sensors
7204931 Assy, Board Pin, 30mm
198799 Assy, Stop Pin
7207835 Chain, #25 340 Link
7210974 Assy Board Sensor
7209437 Assy, Main Air Regulator
7211533 Assy, Fluid Regulator, 940
7209435 Spring, Gas, 90lb
7207355 PWA, Home Sensor
115810 Cup,SS,125ml
7215968 Assy, Vent Switch,.15-55" W.C.
7216553 Assy, Regulator, E/P, 0-130psi
7210787-1 Cable, E/P Regulator
7210787-3 Cable, E/P Regulator
7204797 Switch, Interlock, AB"ELF"
7200902-2 Main Board
7209880 Assy, Servo Power Supply
7206865 Servo AMP
7214000 PWA, Servo Power Control
7209610 Power Manager 10A
7201079 Drive Motors, XY
7210720 Computer, Laptop
7208938 PWA Accessories
7211935 PWB, Conveyor Control
7213997 Conveyor Motor
C.4 Illustrated Parts List
NOTE Parts listed in Figure C-1 to Figure C-8 are those in effect at the time of manual publication.
Refer to Asymtek’s Find-A-Part web page for the most current information.
http://webstore.asymtek.com/awweblive/apps/findapart_index.asp
Appendix C - Parts List C-3
C.4.1 Safety Components
Item No. Part No. Description
1 7204797 SWITCH,INTERLOCK,AB"ELF"
2 198870 SWITCH,EMO ACTUATOR
3 7204799 ASSY,CM BEACON

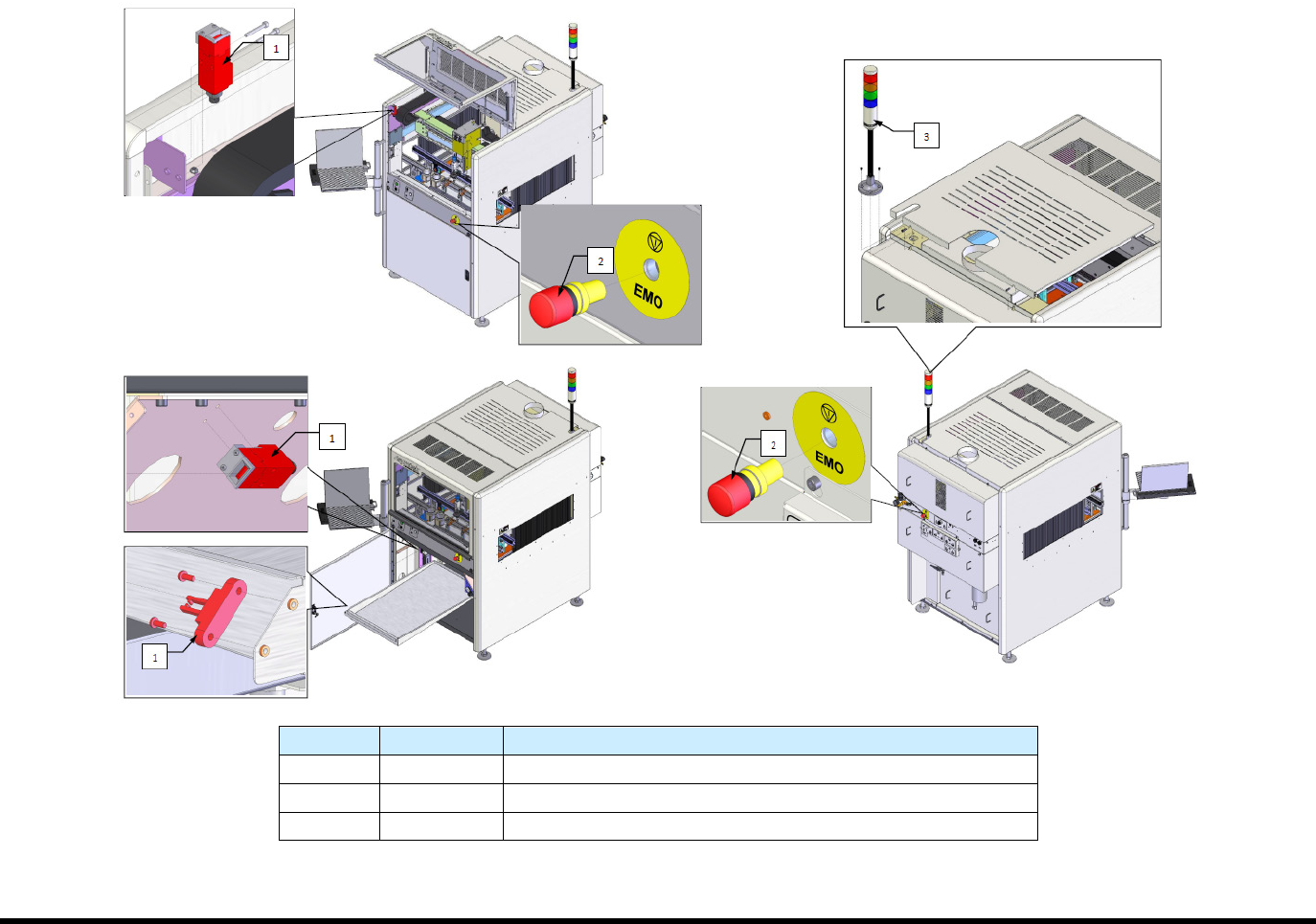

Figure C-1 Illustrated Parts List (Safety Components)
Appendix C - Parts List C-4
C.4.2 Computer Components
Item No. Part No. Description
1 392175 BUMPER, RECESSED
2 7210720 ASSY,940, COMPUTER
3 7217167 ADAPTER,USB TO ETHERNET
4 7209129 HUB, USB 2.0,7 PORT

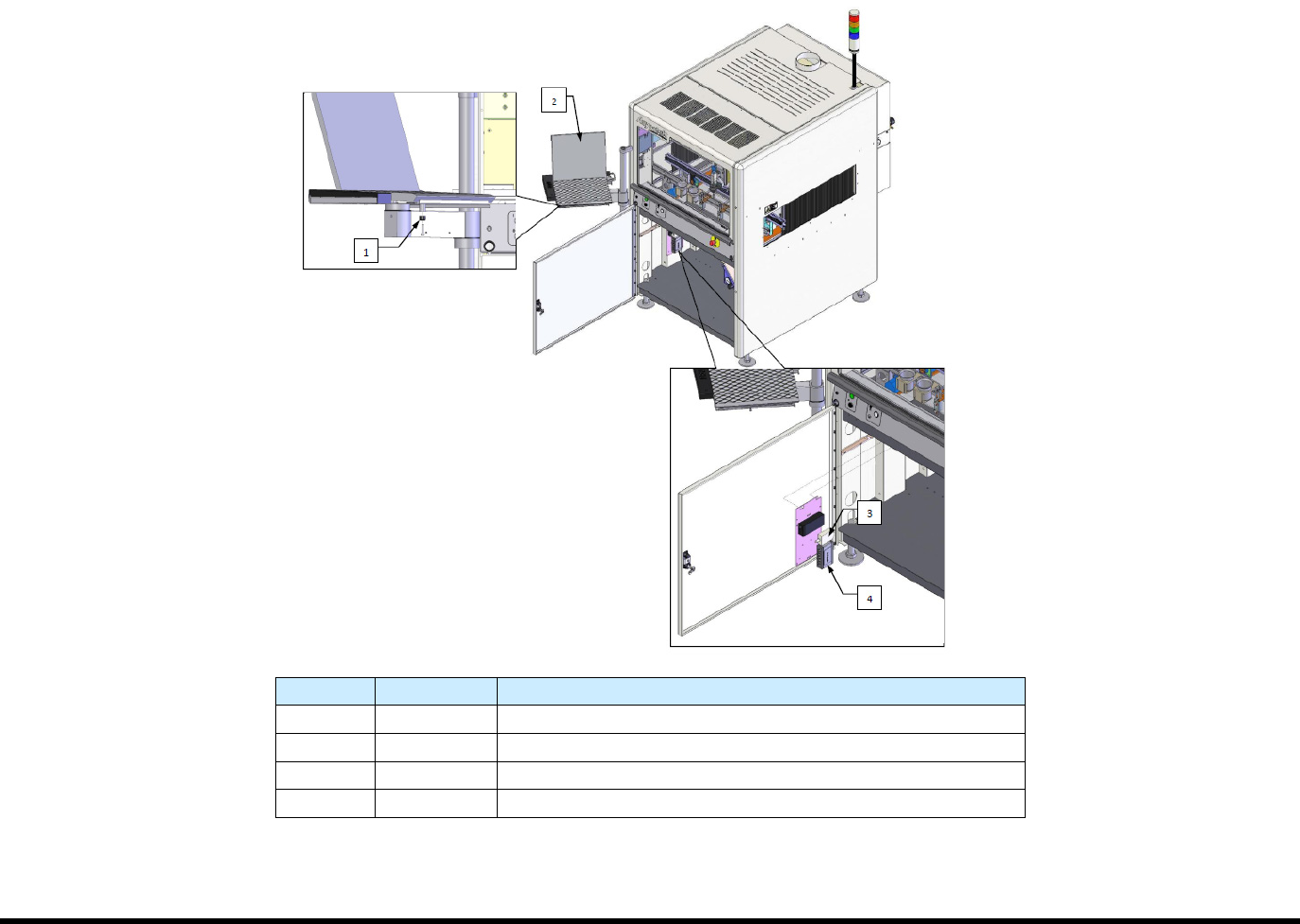

Figure C-2 Illustrated Parts List (Computer Components)
