D292105.16c.fm Connect Vision Chapter 5: Setup 5- 7 5. T o select a stored inspection or configure a new inspect ion, open the Keyence Inspection System sof tware by double-clicking on the IV Navigator icon on the deskto…
5-6 TM-403 User’s Guide
Connect Vision D292105.16c.fm
3. Double click Internet Protocol version4 (TCP/IPv4)
4. Ensure Obtain an IP address automatically is selected. Click OK.
Step 1:
Vision
Setup
CONNECT
LAPTOP
D292105.16c.fm Connect Vision
Chapter 5: Setup 5- 7

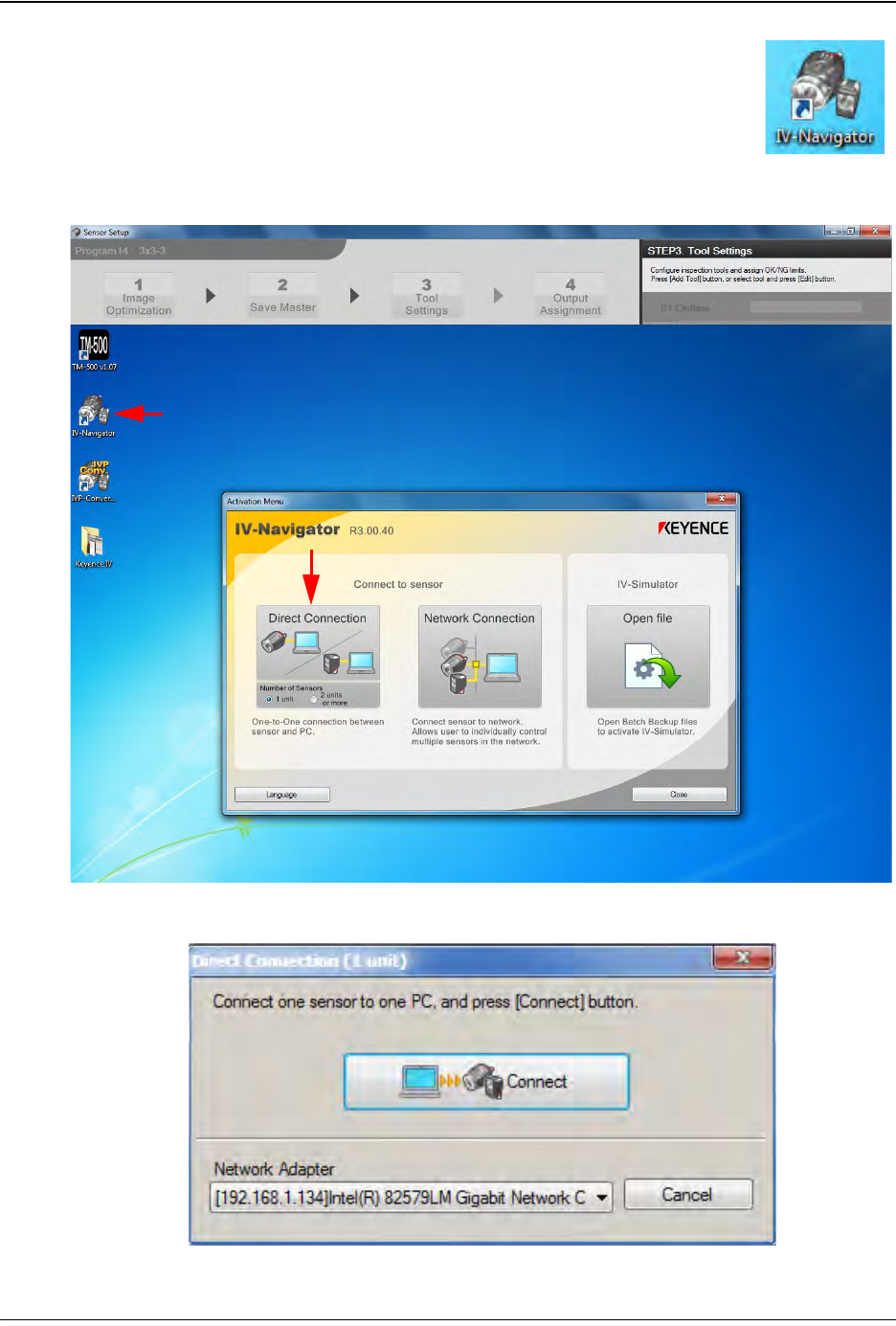

5. To select a stored inspection or configure a new inspection, open
the Keyence Inspection System software by double-clicking on
the IV Navigator icon on the desktop.
6. Select Direct Connection.
7. The following pop-up will appear. Press Connect.
Step 1:
Vision
Setup
CONNECT
LAPTOP
5-8 TM-403 User’s Guide
Connect Vision D292105.16c.fm

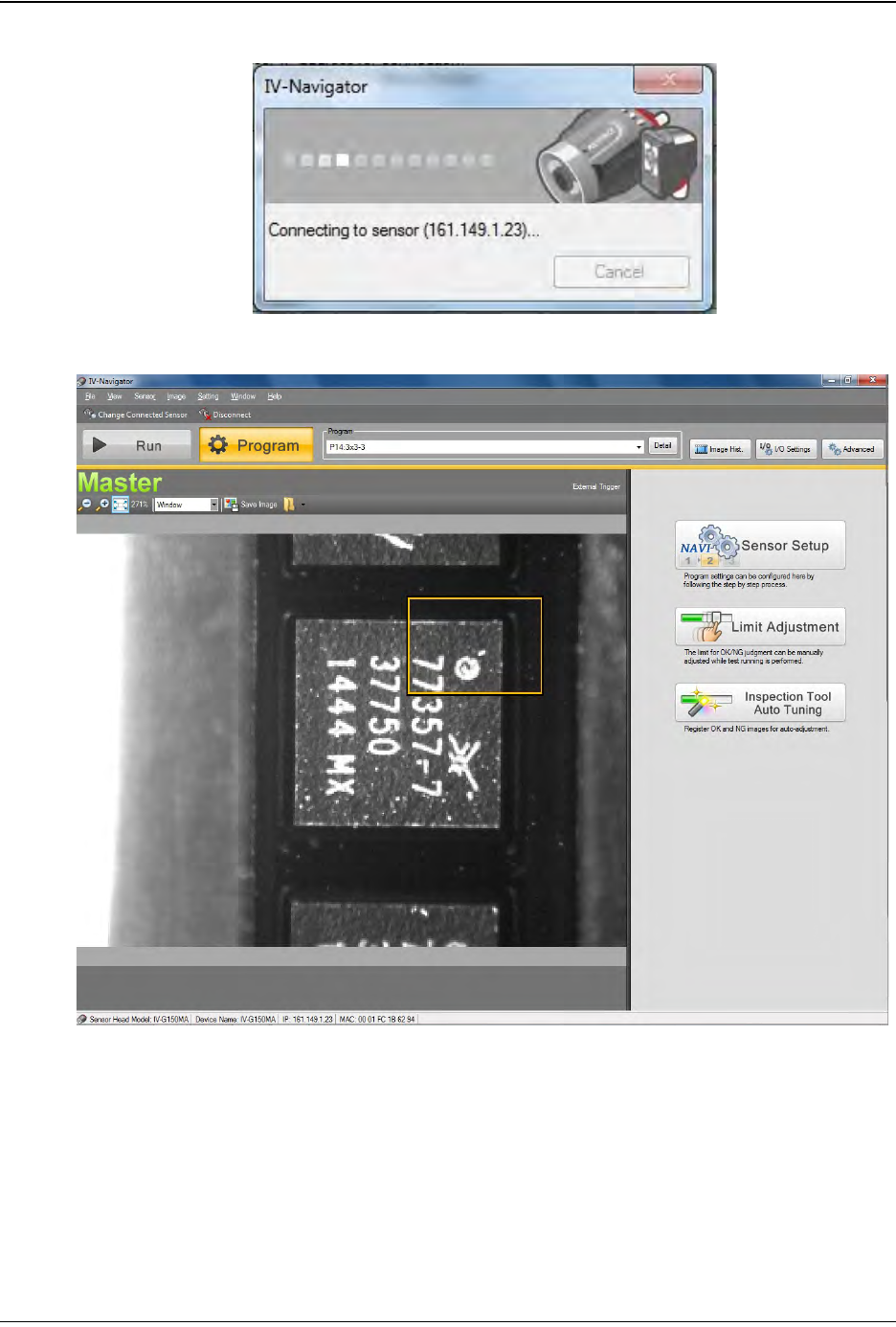

A Connecting to Sensor status window will open.
8. Once the connection is complete, the Run/Program window will open.
Step 1:
Vision
Setup
CONNECT
LAPTOP
