4-26 TM-403 User’s Guide
Test Seal D292105.7b.fm

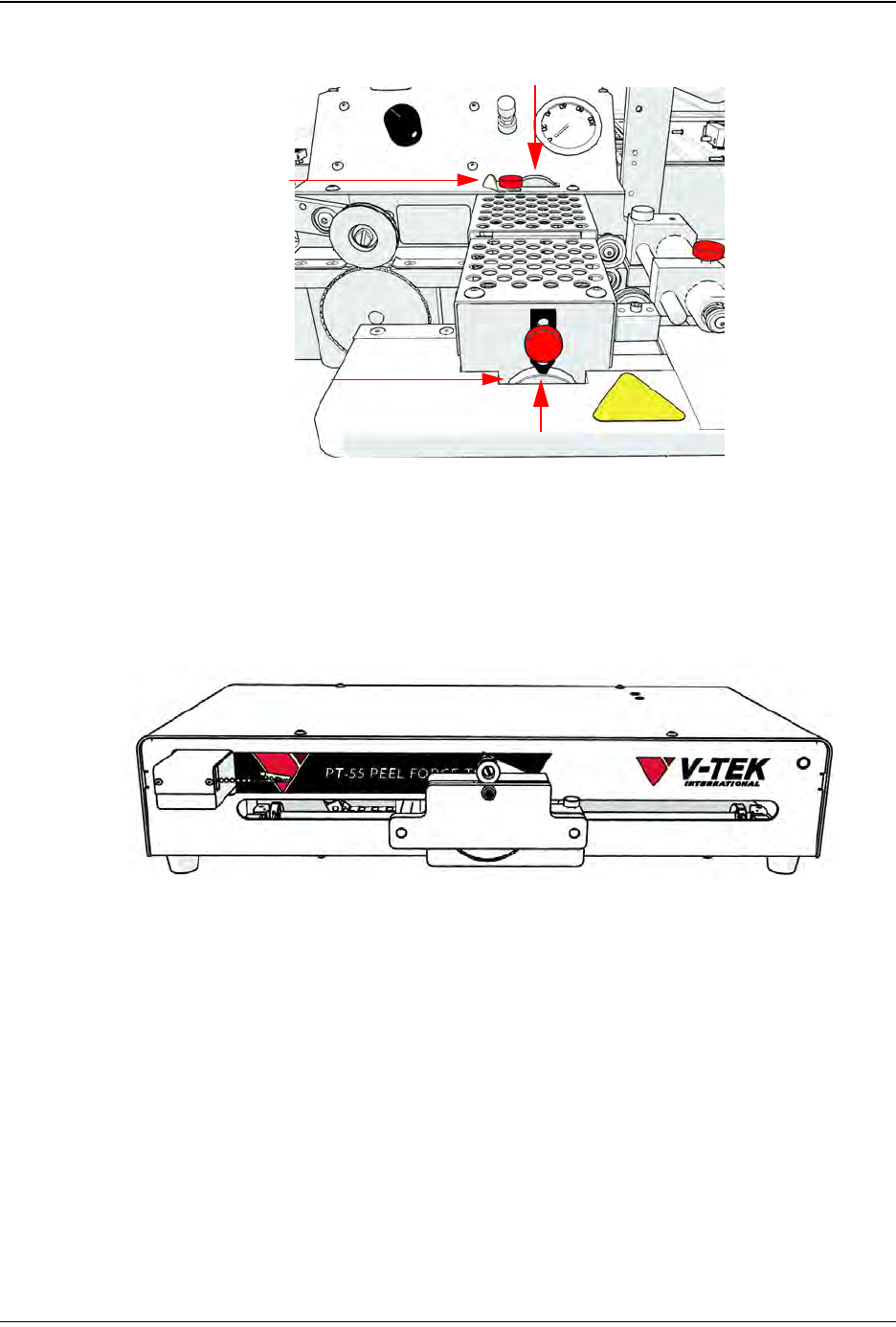

corresponding position lock and turn the adjusters.
Turning the wheel counter-clockwise will move the guide towards the operator.
Turning it clockwise will move the guide closer to the machine. Adjust the Inner
Seal Adjust and the Outer Seal Adjust to the desired position, then tighten the
Position Locks to secure them.
4. Perform a Seal Test.
The V-TEK PT-55 Peel Force Tester is pictured above. (Sold separately.)
Proceed to Chapter 5: Vision Setup to configure the Vision System for operation.
Inner Seal Adjust
Outer Seal Adjust
Position Lock
Position Lock
Chapter 5: Vision Setup
Contents
Quick Start: Vision Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Connect Vision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Setup HMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Connect Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Connect Keyence Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Configure Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-10
Configure Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Configure Keyence Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-28
5-2 TM-403 User’s Guide
Quick Start: Vision Setup D292105.16c.fm
Quick Start: Vision Setup
The following is an outline of the basic steps required to configure inspection on the TM-
402. More detailed instructions follow in the next section of this chapter.
1. Load Vision Software (user supplied computer only)
2. Connect Vision Computer/Monitor to Camera
3. Configure Inspection
If the optional laptop was purchased for vision configuration V-
TEK, Inc. recommends users create a computer Recovery
Disk prior to operation and conduct periodic back-ups as
needed. Visit the computer manufacturer’s website for instruc-
tions on creating a recovery disk.
V-TEK, Inc. does not create or maintain recovery information for
this laptop. Creating a recovery disk is solely the users’
responsibility.
