D292105.6a.fm Introduction
Chapter 3: Human Machine Interface 3-3
Each tab contains a variety of toggle buttons and open fields. Press any field to open a numeric
or alpha-numeric keypad and enter the appropriate information.
3-4 TM-403 User’s Guide
Job Tab D292105.6a.fm
Job Tab
When the TM-402 is initially powered up, the HMI will open to the Job Tab with a red Home
Required button at the top of the Tab Menu and the other tab buttons grayed out.
Homing motors should be done following every system power up or emergency stop. Press
Home Required to open the Homing Status window.
Press the Home All Motors button to begin the homing sequence. Homing progress is displayed
in the Pick Axis Motor Status Bar.
D292105.6a.fm Job Tab
Chapter 3: Human Machine Interface 3-5

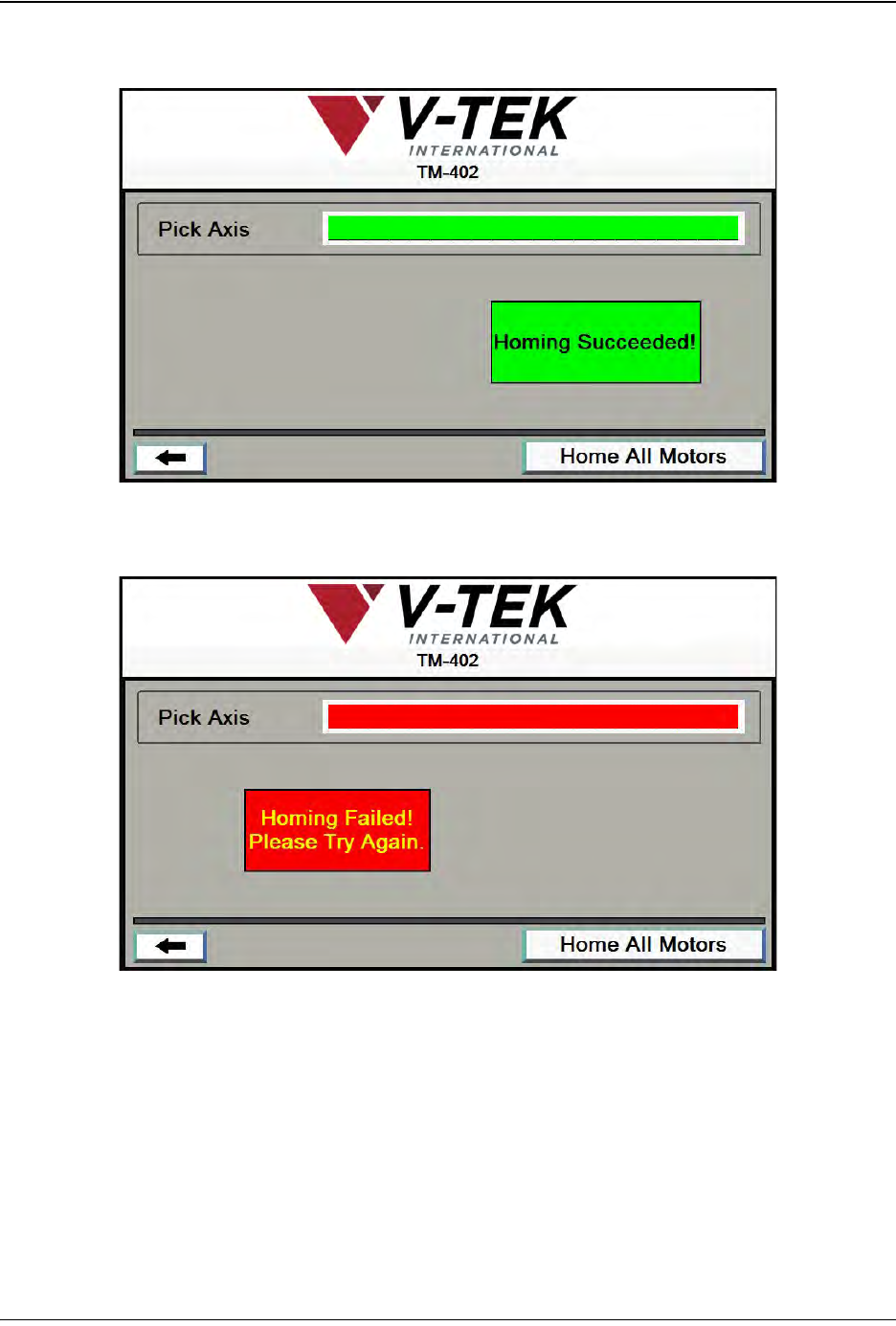

As the homing sequence is completed, the bar gradually turns from black to green. A Homing
Succeeded! message appears at the end of the sequence.
If a problem arises during homing of the motor, the status bar will turn red and a Homing Failed
message will appear.
