D292105.7b.fm Configure HMI Settings
Chapter 4: Setup 4- 17
6. ENABLE LEADER.
a. Select Leader State and enter Leader Length in millimeters if enabled.
Note: If Leader is disabled or a leader value of zero is entered, the Taper will
automatically advance the last part until it reaches the cut point. If a leader value
is entered, it will move the last placed part that distance beyond the cut point.
b. Press the right Arrow key to move to the next screen.
Step 6:
Setup HMI
TA P ER
4-18 TM-403 User’s Guide
Configure HMI Settings D292105.7b.fm

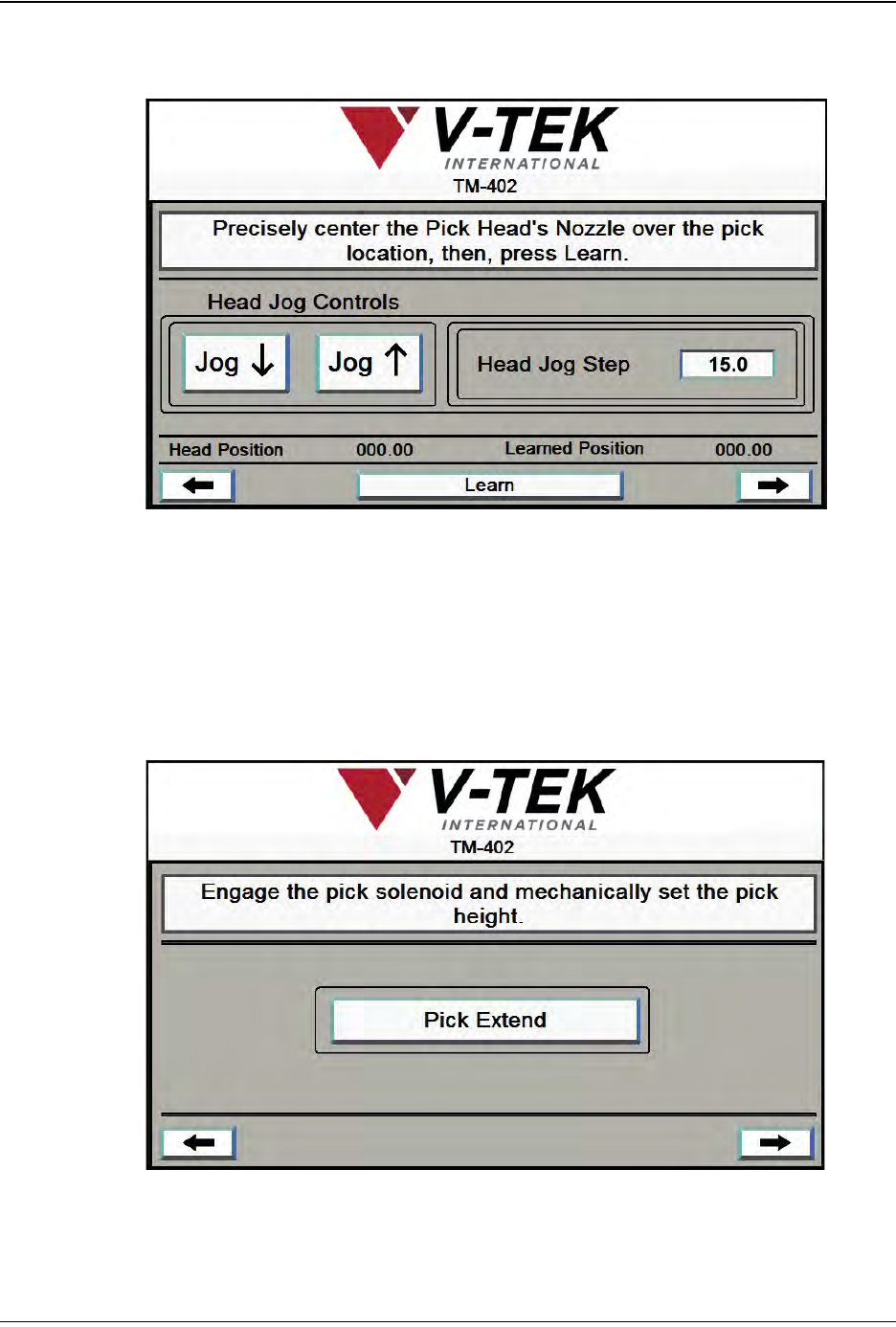

7. PICK HEAD SETUP The next seven Job Wizard screens are used to set the pick
and place positions.
a. Press the Jog buttons or the Jog buttons on top of the Sealer enclosure to
move the Pick Head to the Bowl Feeder, centering it over the Nest in the pick
position.
b. Press Learn. The Learned Position will now match the Current Position and
the Learn button will turn green and update to read Learned.
c. Press the right Arrow to move to the next Job Wizard screen. .
Step 6:
Setup HMI
PICK
HEAD
A
B
C
D292105.7b.fm Configure HMI Settings
Chapter 4: Setup 4- 19
8. SET PICK HEIGHT.
a. Open the TM-402 enclosure doors to access the pick head.

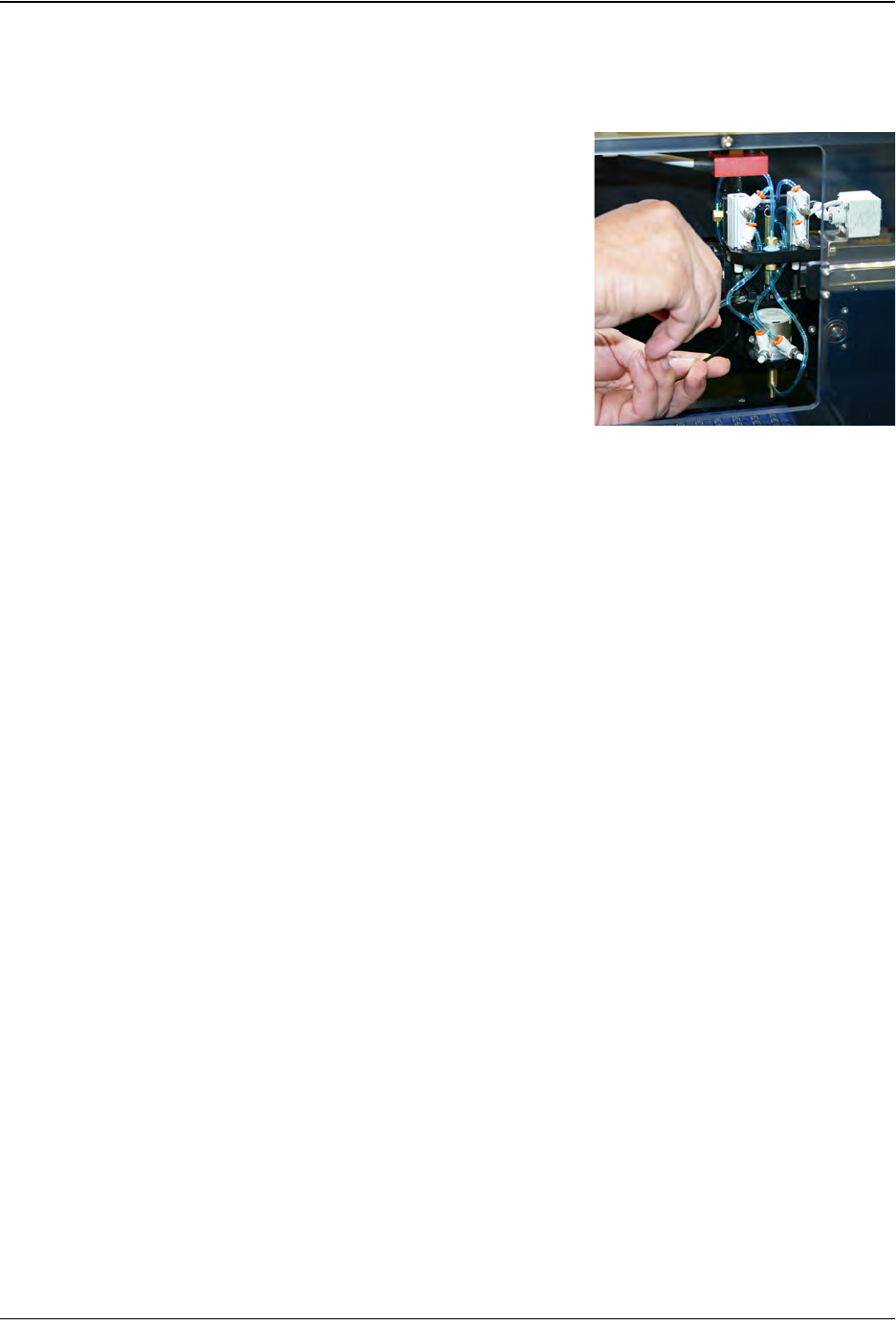

b. Use a 2.5mm hex wrench to hold the
Actuator Adjustment Screw in place from
the bottom, while loosening the Jam Nut
on top of the Actuator Adjustment Screw
with an 8mm open ended wrench. Raise
the Nozzle until it is at a safe height so it
will not collide with the current part when
extended.
c. Tighten the Jam Nut.
d. Press the Pick Extend button.
e. Loosen the Jam Nut on top of the Actuator Adjustment Screw again, then
lower the Nozzle until it is barely touching the part in the Pick Location.
Note: For all Nozzle Tips except the Convum Tips, the pick position should be set
just above the surface of the part with a very small clearance between the nozzle
and the part. Because the Convum Nozzle Tips are flexible, it is all right if the tip is
programmed to touch the part when picking.
f. Tighten the Jam Nut.
g. Press Pick Retract to retract the Nozzle to a safe height.
h. Press the right Arrow to move to the next Job Wizard screen.
Step 6:
Setup HMI
PICK
HEAD
