D292105.16c.fm Configure Inspection Chapter 5: Setup 5- 19 Select the Outline tool, th en click OK . A green outline will now appear aroun d the selected mark. Click OK. Step 2: Vision Setup CONFIGURE COMPUTER
5-18 TM-403 User’s Guide
Configure Inspection D292105.16c.fm
10. The Tool Settings window will open.
Select Add Tool.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 19

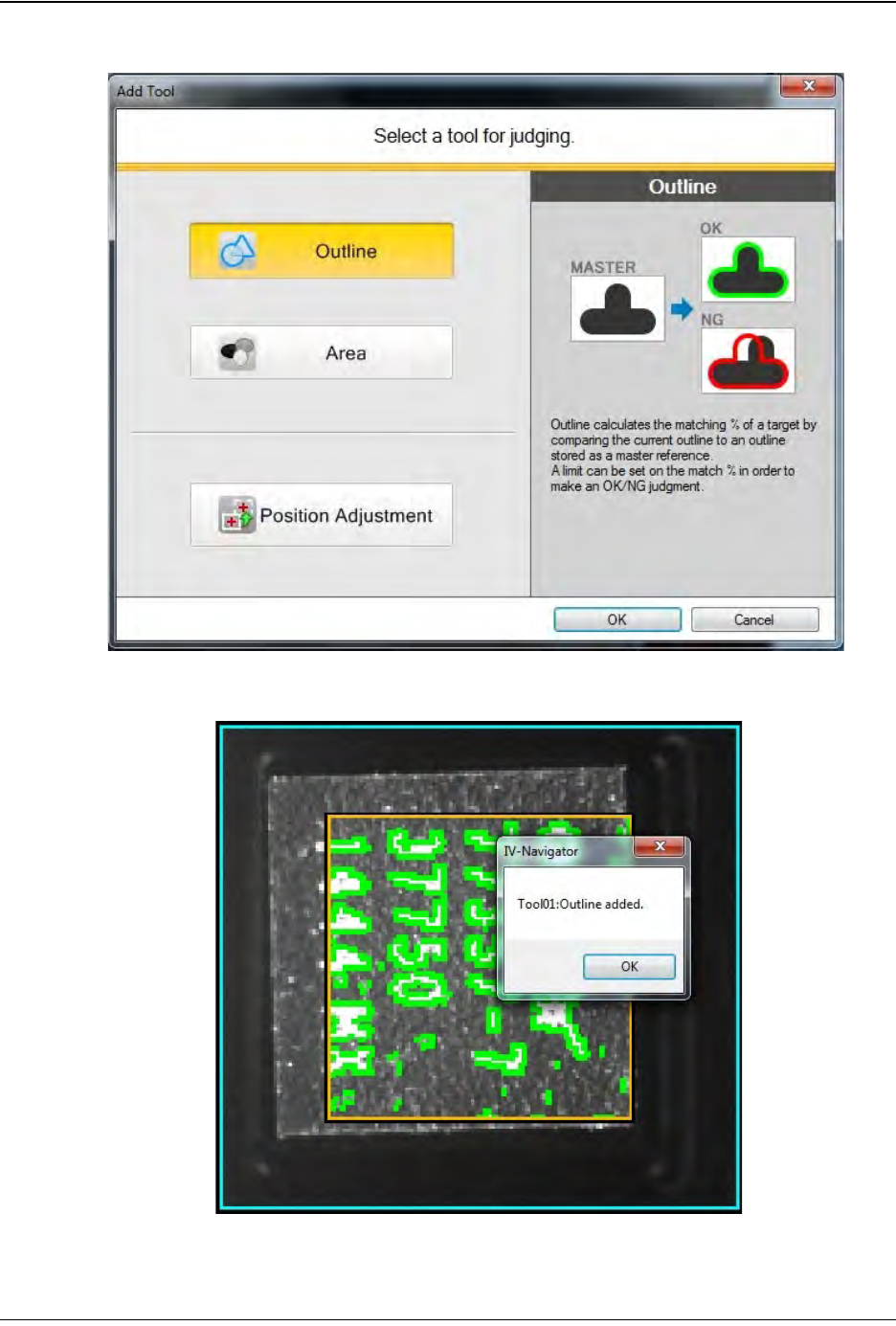

Select the Outline tool, then click OK.
A green outline will now appear around the selected mark. Click OK.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
5-20 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

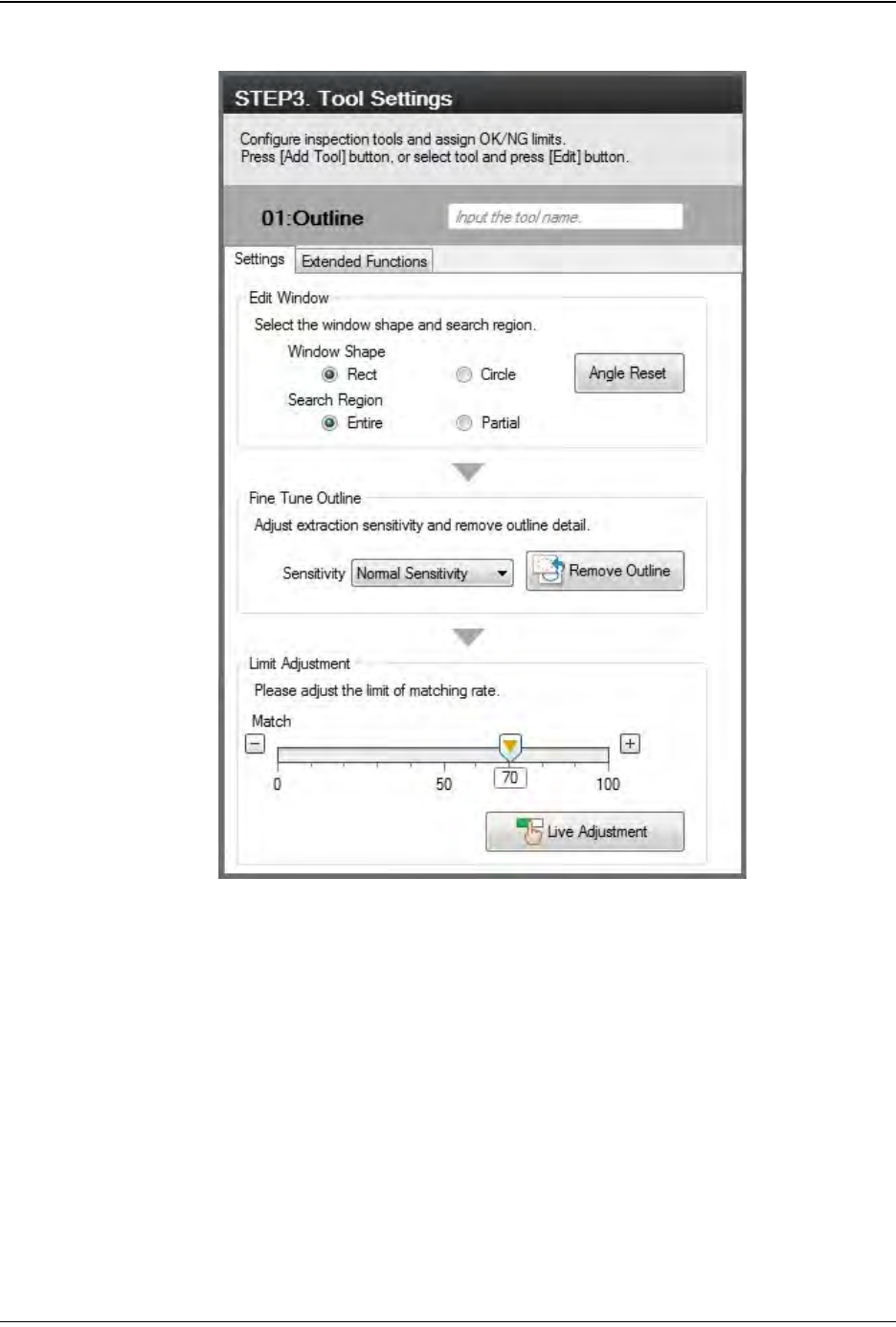

The Tool Settings Options will now appear as below.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
