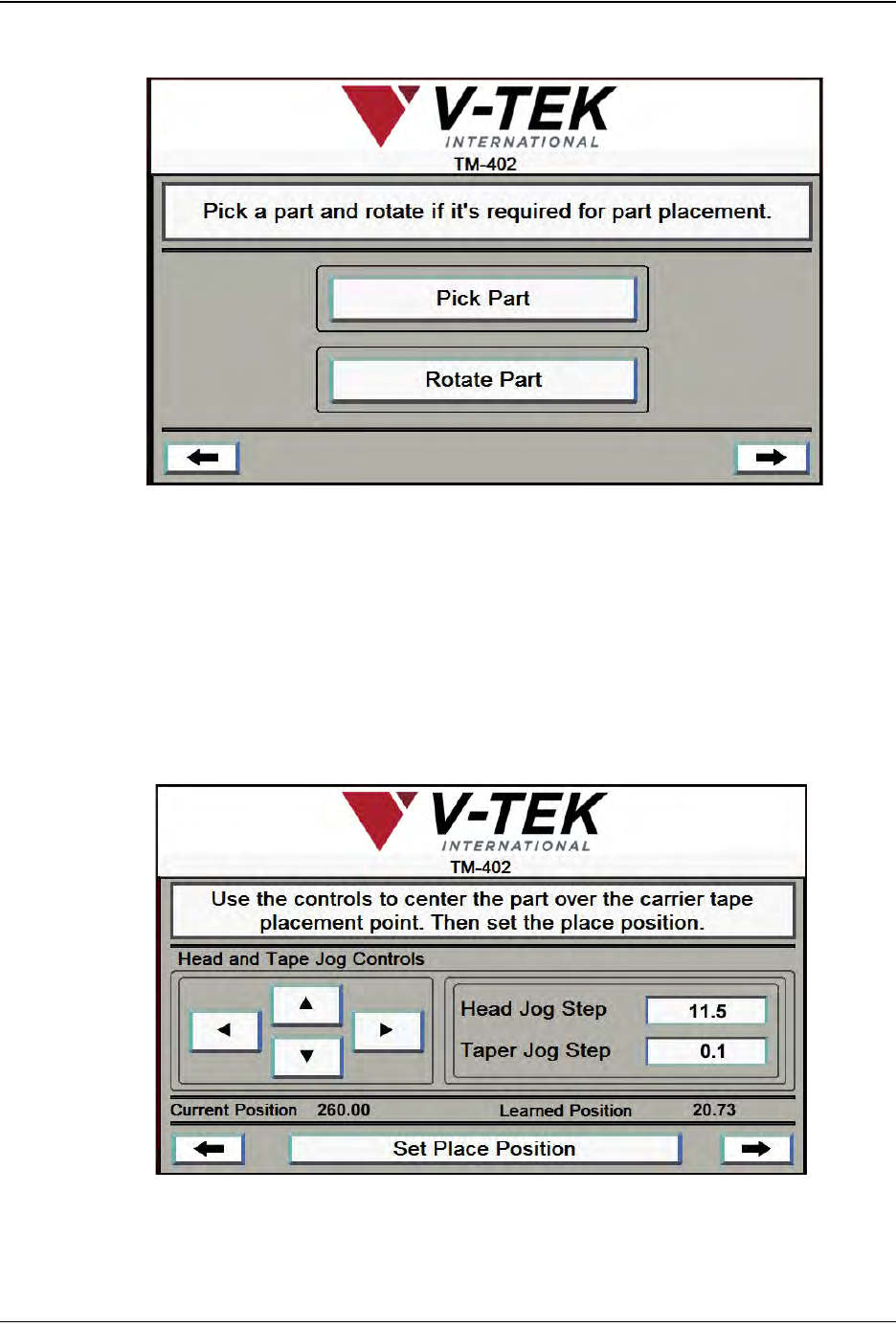

9. Nozzle Setup: Manual Rotation
a. Place a part in the pick position. Press Pick Part to activate the Pick Head
and pick a part from the pick location.
b. If the part needs to be rotated before it is placed in tape, press Rotate Part.
This will rotate it +90°. If no rotation is required for part placement, skip this
step.
c. Press the right Arrow Key to move to the next Job Wizard screen.
10. Set Place Position
a. Use the Arrow keys to position the Pick Head and Carrier Tape so the Nozzle
is centered over the carrier tape placement position. The Up/Down Arrow
Step 6:
Setup HMI
PICK
HEAD
D292105.7b.fm Configure HMI Settings
Chapter 4: Setup 4- 21
keys move the Pick Head forward and backward. The Left/Right Arrow keys
move the tape left and right in the Taper Track.
b. When the Nozzle is centered over the tape pocket, press Set Place Position
to set the position.
c. Press the right Arrow Key to move to the next Job Wizard screen.
11. Set Place Nozzle Height The Pick Head’s Z Axis (up/down) position needs to be
set at the Place position.
a. To manually set the Place Actuator to
the correct nozzle height, press Place
Extend
b. Use a 2.5mm hex wrench to hold the
Actuator Adjustment Screw in place
from the bottom, while loosening the
Jam Nut on top of the Actuator
Adjustment Screw with an 8mm open
ended wrench. Lower the Nozzle until
the part is barely touching the top of
the pocket in the Place Location.
c. Tighten the Jam Nut.
d. Press Place Retract to retract the
Nozzle to a safe height.
e. Press the right Arrow Key to move to
the next Job Wizard screen.
Step 6:
Setup HMI
PICK
HEAD
4-22 TM-403 User’s Guide
Configure HMI Settings D292105.7b.fm
12. Set Rotation Angle
a. Press the Placement Rotation Angle field to toggle through the rotation
options. The options are 0, -90 and +90. Select the correct placement angle.
• If rotation is set at 0,
the part will be placed
in the same orientation
as it was picked.
• If rotation is set at -90,
the part will be rotated
90 degrees clockwise
prior to placement.
• If rotation is set at +90,
the part will be rotated
90 degrees counter-
clockwise prior to
placement.
b. Press the right Arrow Key to move to the next Job Wizard screen.
Step 6:
Setup HMI
PICK
HEAD
-90
0
+90
Rotation Options
