D292105.16c.fm Configure Inspection Chapter 5: Setup 5- 17 Select Register Live image as master . Select Register the image . Once the image has been registered, click OK . The n click Next to STEP3 . Step 2: Vision Setu…
5-16 TM-403 User’s Guide
Configure Inspection D292105.16c.fm
Click on the Lighting tab and select ON and Flash. Then click the Next to STEP2
button which is located in the bottom right corner of the window.
9. The Save Master window will open.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 17

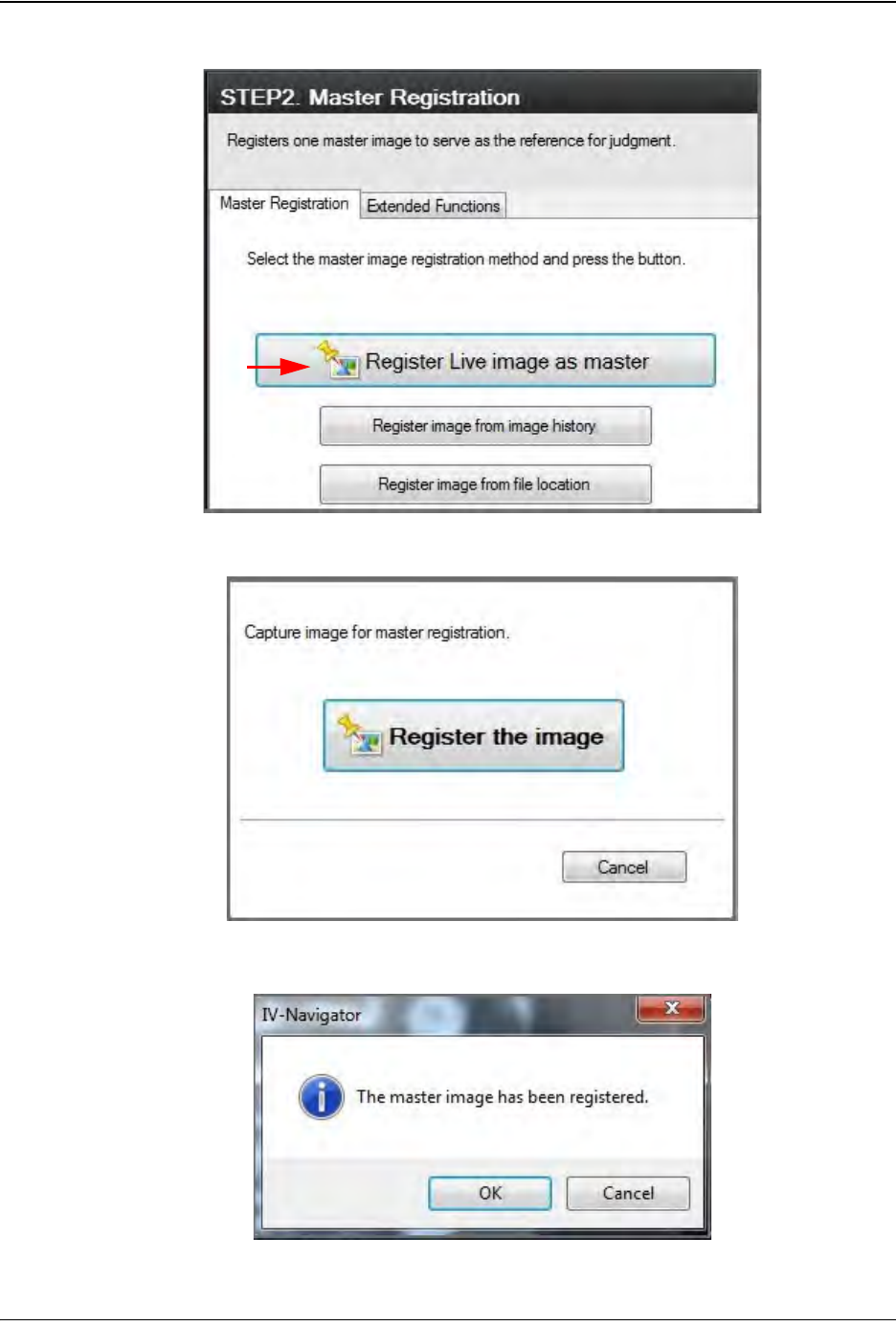

Select Register Live image as master.
Select Register the image.
Once the image has been registered, click OK. Then click Next to STEP3.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
5-18 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

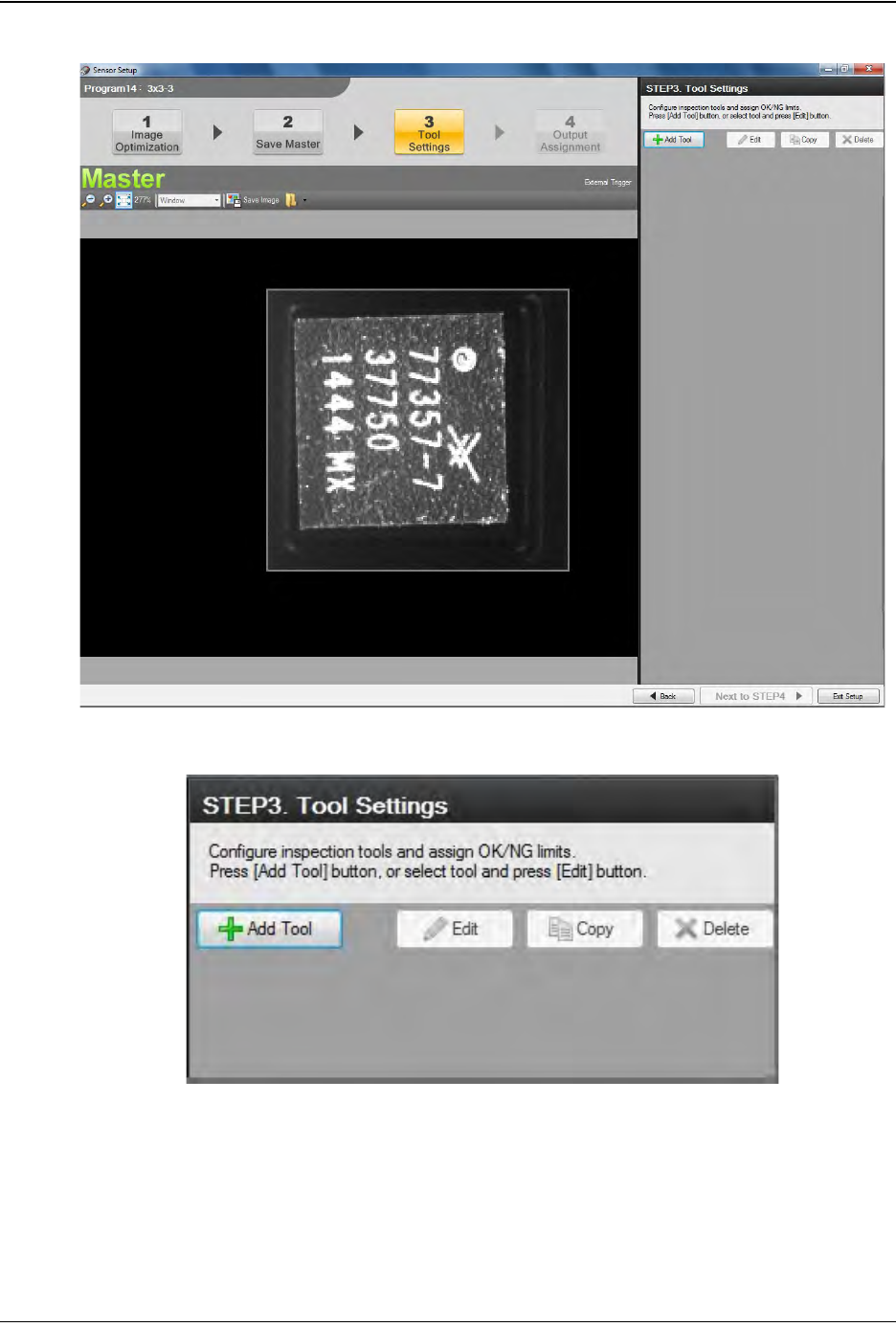

10. The Tool Settings window will open.
Select Add Tool.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
