3-18 TM-403 User’s Guide

Taper Tab D292105.6a.fm

The Continuous Advance button advances the tape through the Taper and onto

the take-up reel. It will continue to advance until Continuous Advance is pressed

a second time.

Note: Continuous Advance is useful for creating a trailer or loading tape at the begin-

ning of a job.

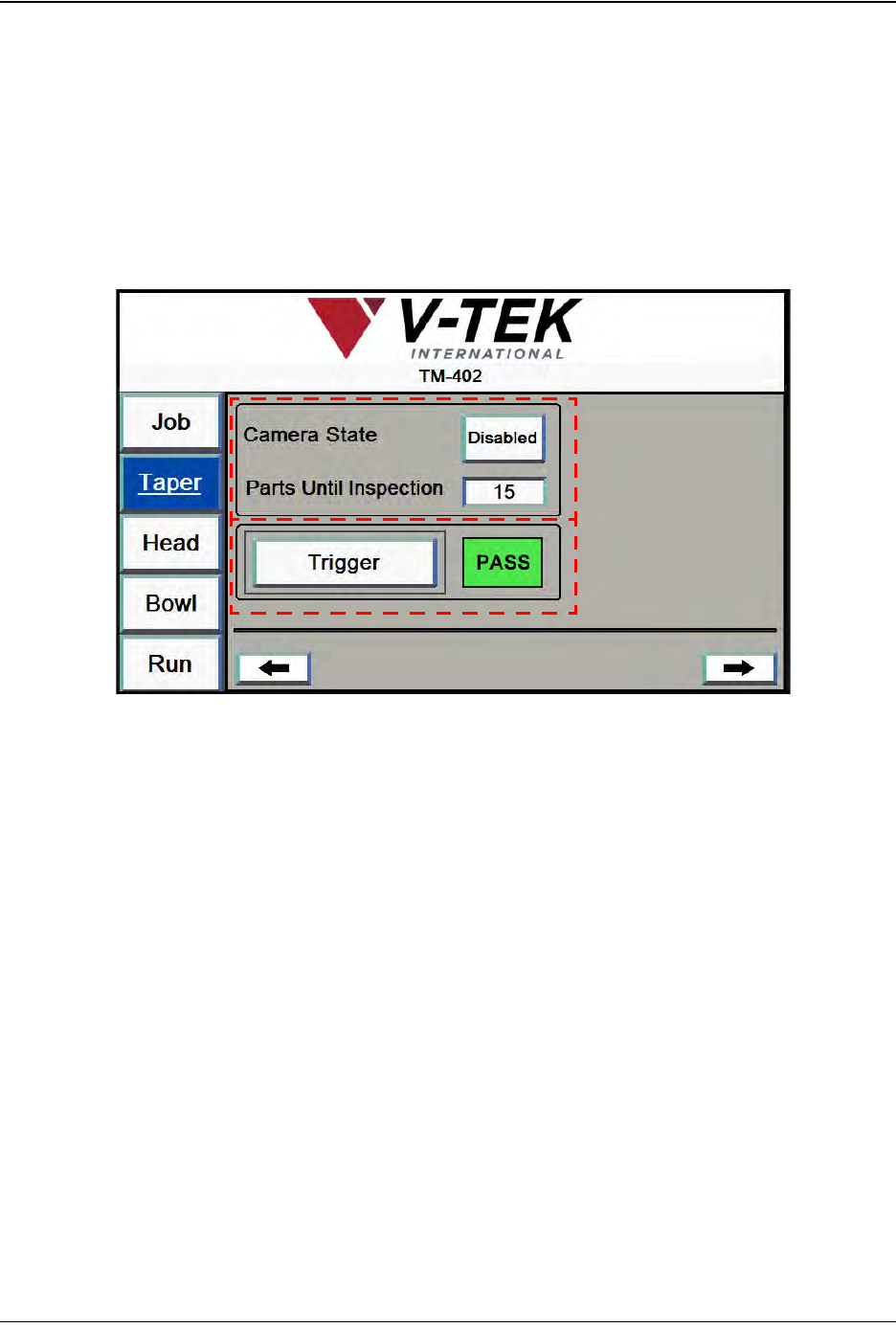

2. Pressing the right Arrow button opens the next Taper Setup screen which focuses on

Vision Setup.

A. The Camera State button toggles between Enabled and Disabled.

The Parts Until Inspection value is the number of pockets between the Place

point and the Inspection point. Begin the count at the Place position at zero, so

the Place position is not included.

B. Pressing the Trigger button triggers the 2D Camera to inspect the part which is

currently at the Inspection point. The box to the right of the Trigger button will dis-

play a green PASS message or a red FAIL message.

Note: For more detailed inspection configuration and procedures, see the Cognex

Checker User’s Guide which was included with the TM-402.

Pressing the right Arrow button opens the next Taper Setup screen.

Taper Screen 2

D292105.6a.fm Taper Tab

Chapter 3: Human Machine Interface 3-19

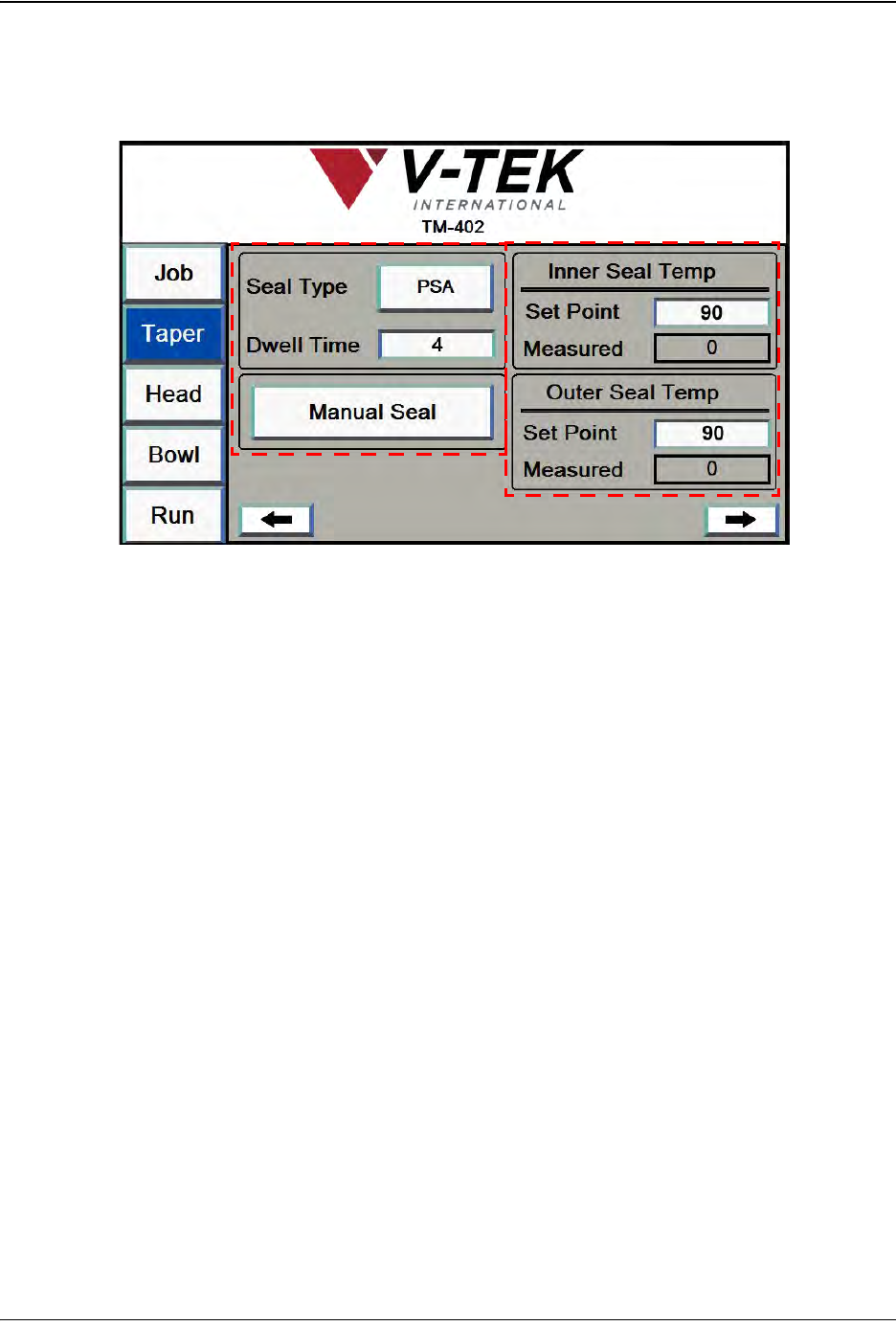

3. The third Taper Setup screen focuses on Sealer Settings. It will vary in appearance

depending on the type of sealer selected. In the example below, the selected Seal Type is

Heat.

A. The Seal Type button toggles between Heat seal and PSA seal.

The Dwell Time field is only active when heat seal is enabled. Dwell time refers to

the amount of time that the Heat Seal Shoes are in contact with the Cover Tape.

Enter the desired dwell time in milliseconds in this field.

The Manual Seal button activates the sealer to perform one seal.

B. The Set Point field allows the user to select the Heat Sealer set point, or target

temperature. Press the field to open the keypad, then enter the desired tempera-

ture in degrees Celsius.

The Measured field shows the current Heat Sealer temperature in degrees Cel-

sius.

Note: The TM-402 accommodates a wide range of carrier tapes and cover tapes. Set-

tings may vary from one tape product to another. The recommended starting point is 90°

C. The maximum recommended operating temperature is 160° C. The temperature for

each seal shoe should be increased or decreased as needed after running a peel force

test.

Taper Screen 3

3-20 TM-403 User’s Guide

Taper Tab D292105.6a.fm

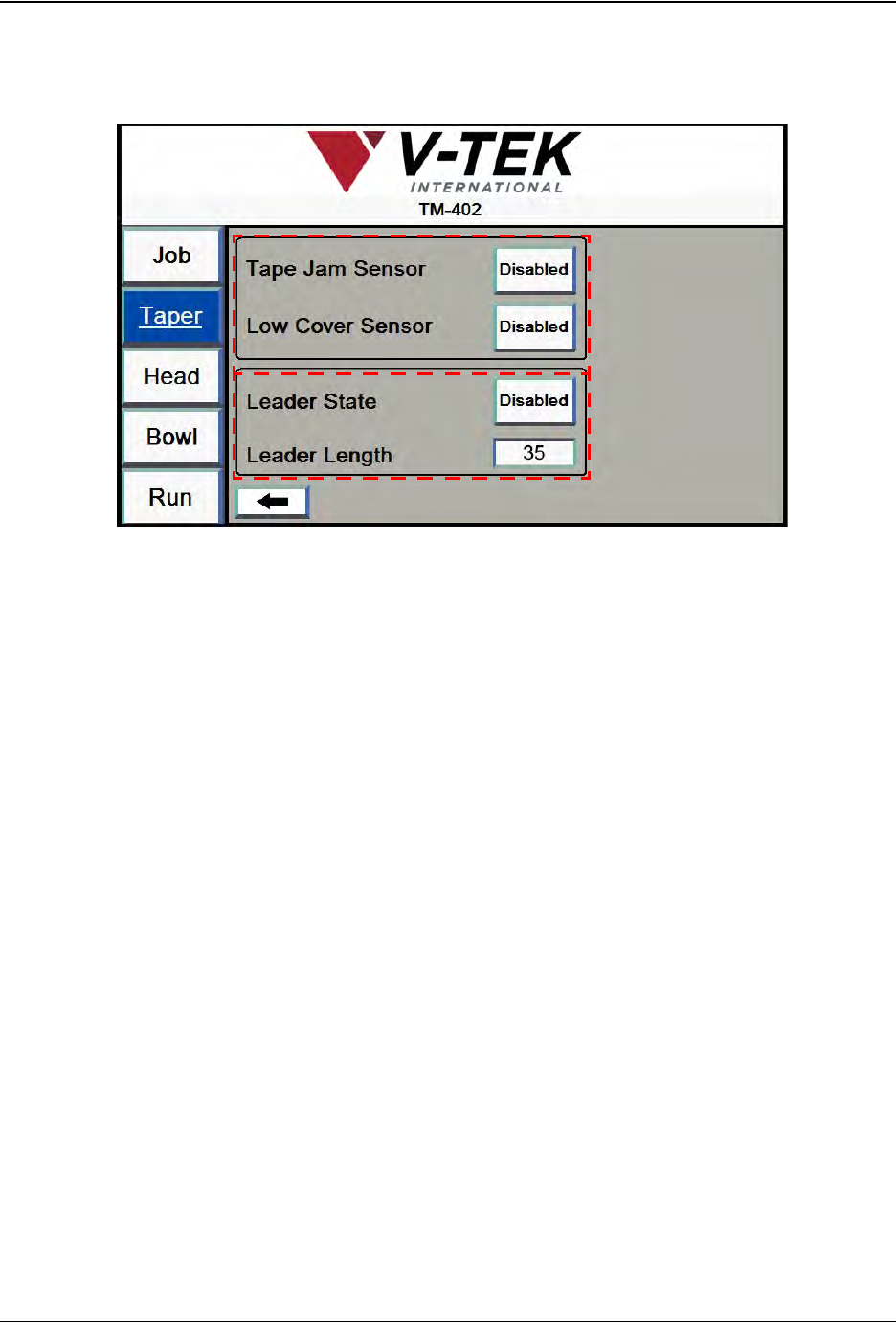

4. Pressing the right Arrow button in the third Taper Setup screens opens the final Taper

Setup screen. The fourth Taper Setup screen focuses on Leader and Sensor settings.

A. The Tape Jam Sensor Enabled/Disabled button turns the Tape Jam Sensor on

and off. The Tape Jam Sensor registers a tape jam whenever something pro-

trudes above the top of the carrier tape pocket. This might be caused by a mis-

placed part, a pocket that has been loaded with two parts or by a buckle in the

tape.

When the Tape Jam Sensor is activated, the job that is being run is paused and

an error message appears on the HMI screen. The recommended setting for the

Tape Jam Sensor is Enabled.

The Low Cover Sensor Enabled/ Disabled button turns the Low Cover Tape Sen-

sor on and off. The Low Cover Tape Sensor detects when the cover tape reel is

running low. When the Low Cover Tape Sensor is activated, an error message

appears on the HMI screen. The recommended setting for the Low Cover Tape

Sensor is Enabled.

Note: The Low Cover error message is only displayed once during a job.

B. When Leader State is enabled, the TM-402 will create a leader of the specified

length at the end of the job.

The Leader Length field is only active when Leader State is enabled. Enter the

desired leader length in millimeters in the field.

Note: The TM-402 will use these settings for the current job. To save Taper Settings for

future jobs, go to the Job Tab, select a job name and Save. If settings are not saved, all

data is lost when the TM-402 is powered off.

Taper Screen 4
