D292105.5b.fm The Taper Chapter 2: TM-403 Overview 2-9 Ta p e r : S e a l e r A. Idler Wheel G. Heat Sealer B. Drive S procket H. PSA Pressure Wheels C. Outer Seal Lock I. PSA Pressure Adjustment Screws D. Outer Seal Adj…
2-8 TM-403 User’s Guide
The Taper D292105.5b.fm
The Taper
A. Take-up Arm H. Sensor Amplifiers
B. Take-up Guide I. Cover Tape Guide
C. Drive Sprocket J. Heat/PSA Sealer
D. Idler Wheel K. Tape Jam Sensor
E. Sealer Controls & Pressure Gauge L. Adjustable Width Track
F. Cover Tape Reel M. Carrier Tape Guide
G. Low Cover Sensor N. Carrier Tape Arm
Taper Controls
A. Pick Head Jog Buttons
B. Take-up Tension Control
C. Sealer Air Pressure Control
D. Sealer Air Pressure Gauge
E. Inside Seal Position Lock/Adjust
A
C
B
E
F
H
I
L
N
G
J
D
M
K
B
A
C
D
E
D292105.5b.fm The Taper
Chapter 2: TM-403 Overview 2-9
Ta p e r : S e a l e r
A. Idler Wheel G. Heat Sealer
B. Drive Sprocket H. PSA Pressure Wheels
C. Outer Seal Lock I. PSA Pressure Adjustment Screws
D. Outer Seal Adjuster J. Cover Tape Guide
E. Inner Seal Lock K. Tape Jam Sensors
F. Inner Seal Adjust L. Cover Tape Width Adjusters
A
B
C
G
F
H
I
K
L
E
D
J
K
2-10 TM-403 User’s Guide
Pick & Place Assembly D292105.5b.fm

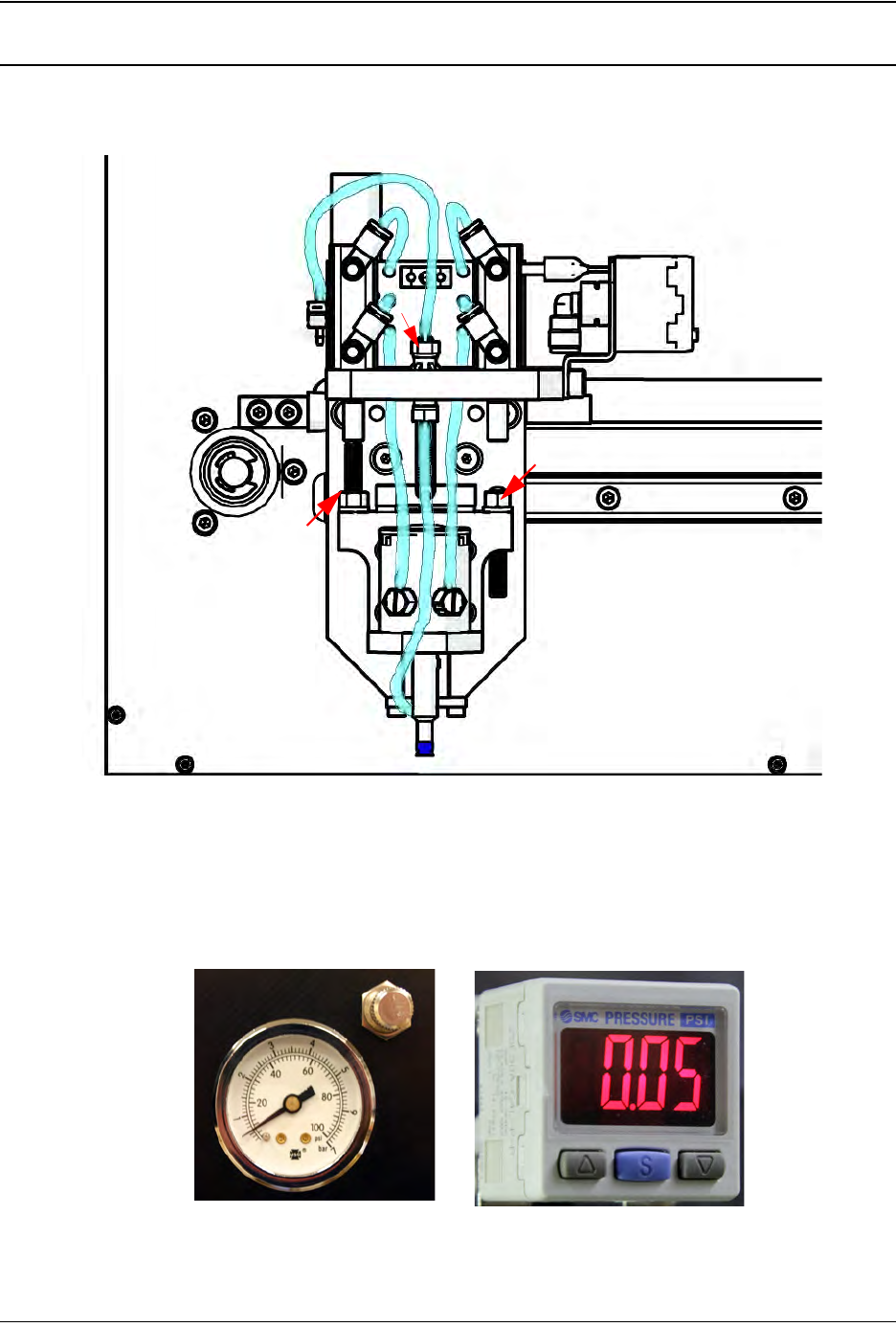

Pick & Place Assembly
Pick & Place Head
A. Nozzle D. Pick Actuator Adjustment Screw
B. Nozzle Vacuum Sensor E. Place Actuator Adjustment Screw
C. Nozzle Vacuum Filter
Pick & Place Controls
A. Blow-off Air Pressure Gauge & Control B. Nozzle Vacuum Sensor
A
B
D
E
C
AB
