1-10 TM-403 User’s Guide

Assembling the TM-402 D292105.4a.fm

5. Connect the Air Supply..

a. Attach the air supply line to the air regula-

tor, then connect it to the air supply.

b. Set the regulator to 85 psi, if necessary. It

can be adjusted by lifting the adjustment knob

and turning it. Once it reads 85 psi, push the

knob back in to lock it into place.

NOTE: It is recommended that the air hose be

routed overhead or underground. If it must be

routed over the floor, cover the hose with rub-

ber ramps.

6. Inspect the TM-402.

a. Inspect the fully assembled TM-402, verifying that all twist ties have been removed

and all cables are secure.

b. Connect the power cord to the power

receptacle on the back of the TM-402, then

connect the other end to a 240 Volt single

phase power supply

Note: It is recommended that the power cord

be routed overhead or underground. If it must

be routed over the floor, cover the cords with

rubber ramps.

Protective earth grounding of the TM-402 is included in the manufacture of the TM-402 at

V-TEK. The TM-402 is fully tested before shipping. No further grounding or testing is

required during re-assembly and installation.

The TM-402 is ready to power up. Follow the instructions in Chapter 3: Machine Setup to setup

the machine for operation.

Air Line

Connect

Here

Chapter 2: Machine Overview

Contents

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Right Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Left Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Controls, Connections & Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

The Taper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Pick & Place Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Bowl Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2D Vision System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

2-2 TM-403 User’s Guide

Front View D292105.5b.fm

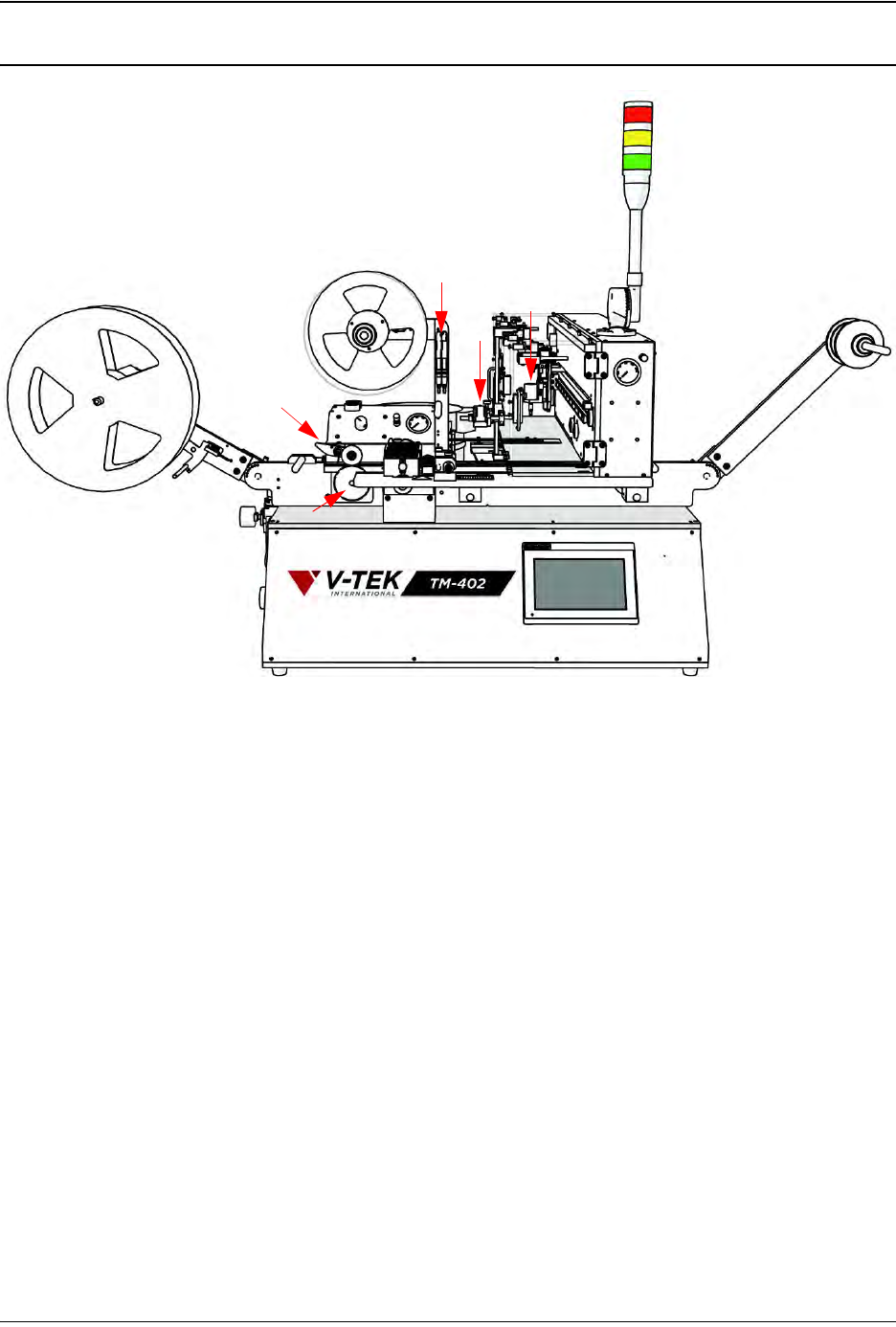

Front View

A. Take-up Arm H. Vision System

B. Air Regulator I. Taper Track

C. Idler Wheel J. Pick & Place Head Assembly & Bridge

D. Drive Sprocket K. Touch Screen HMI

E. Cover Tape Arm L. Tower Light

F. Heat/PSA Sealer M. Air Pressure Gauge & Control

G. Sensor Amplifiers N. Carrier Tape Arm
