Safety Features D292105.2a.fm ix
Reset Button
The TM-402’s blue Reset button is located on the left side of the machine above the Emergency
Stop Switch. When the machine is powered up, it is automatically placed into an emergency stop
state to prevent the motors from moving until the operator is ready to begin operating the
machine. The error state is cleared by pressing the Reset button on the front of the machine.
Open Doors Stop Operation
All automated motion stops and the machine is unable to enter Run Mode when an enclosure
door is opened. An error message will display at the bottom of the HMI Run screen alerting the
user that the TM-402 door(s) are open.
The enclosure doors may be left open during basic set-up procedures such as positioning the
pick head at place or pick locations. If the enclosure doors are left open during setup the TM-402
automatically reduces the speed of the pick head to a fraction of its normal operating speed to
prevent operator injury due to collision, etc.
Buzzer Alarm
The buzzer alarm will sound and halt the Run Mode process of the machine at any time a System
Alarm occurs. A description of the System Alarm and suggestions for resolving it will appear on
the HMI Main Screen.

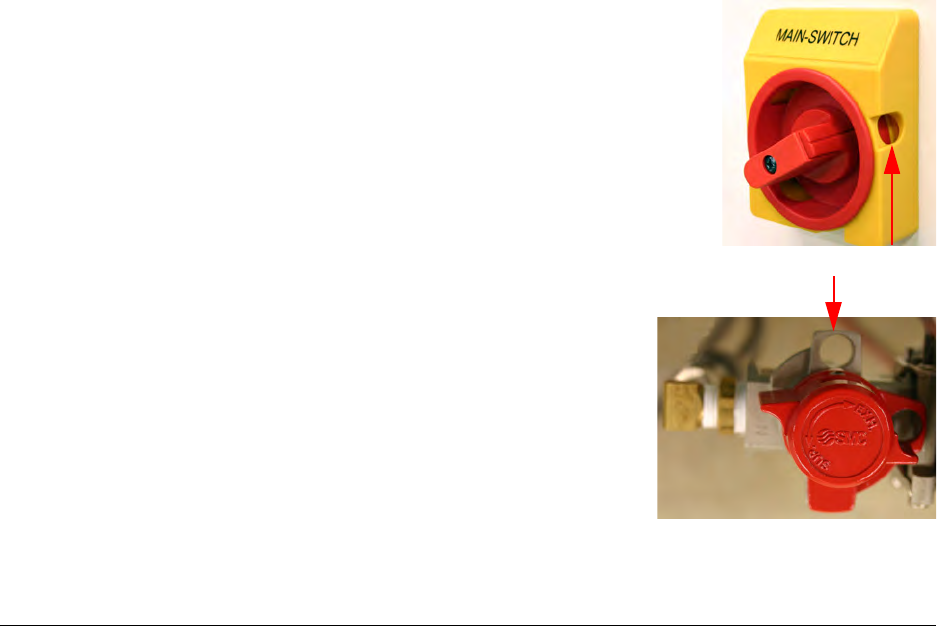

Lockout/Tagout
The Main Switch can be turned ON and OFF by turning the
red knob back and forth. When the red knob is placed in the
OFF position, the lockout/tagout hole is exposed. The Main
Switch can then be locked out by placing a lock through the
hole.
The Air Regulator can be turned ON and OFF by turning
the top red cap back and forth. When the red cap is
placed in the OFF position, the lockout/tagout hole will be
exposed. The Air Regulator can then be locked out by
placing a lock through the hole.
Be sure to follow your company guidelines regarding
lockout/tagout procedures.
lockout/tagout hole
Safety Features D292105.2a.fm x

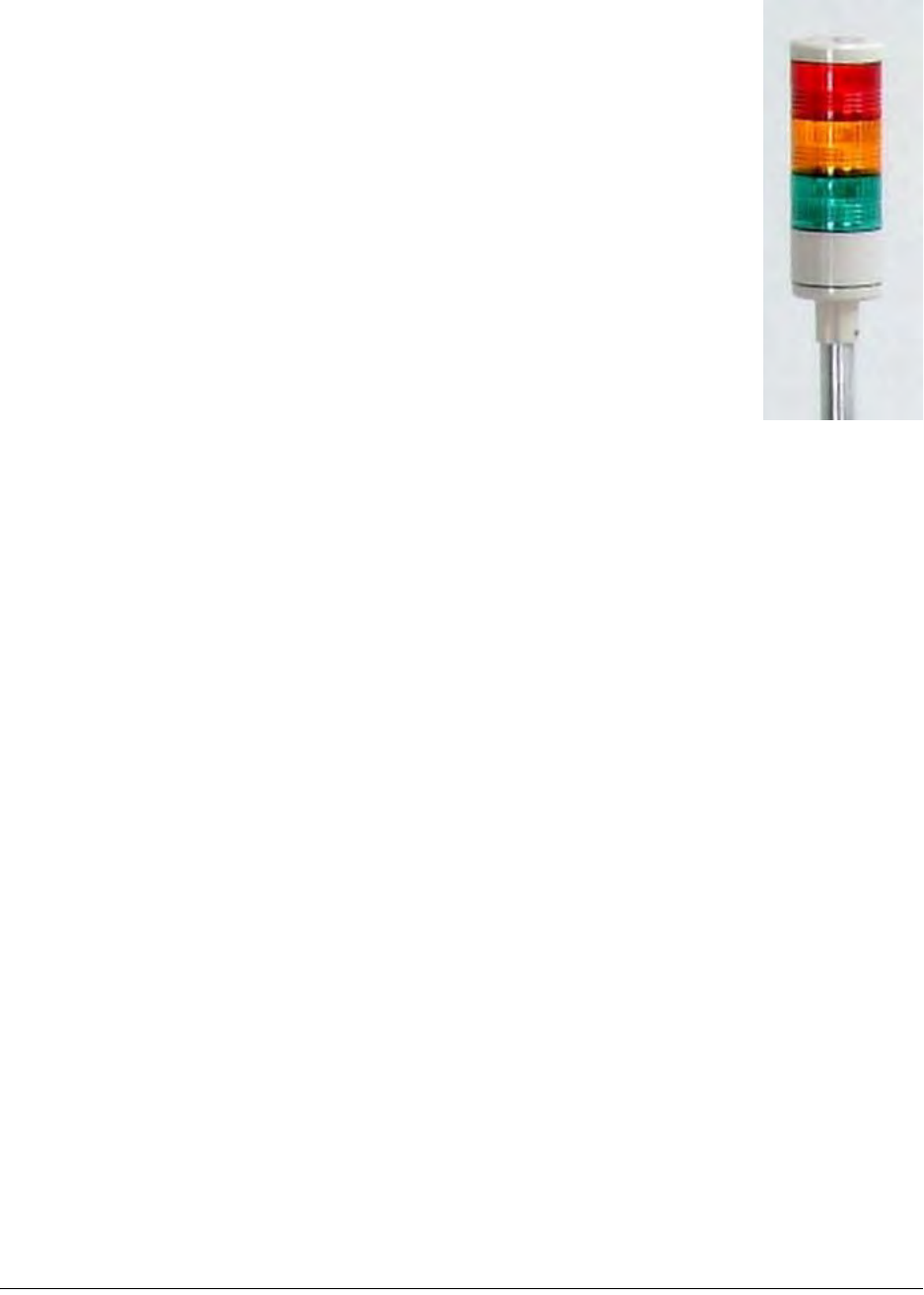

To w e r L i g h t
The tower light feature allows taping machine operators and production
supervisors in determining the operational state of the taping machine at a
glance.
Color Codes
Green
A solid green light indicates the machine is running a job.
Red
A flashing red light indicates that the machine is on but not running.
Green + Amber
The combination of a solid green light and a solid amber light indicate the
machine is at the end of a job and is in the process of creating a leader.
Red + Amber
The combination of a blinking red light and a blinking amber light indicates
the machine is at the end of a job and attempting to create a leader, how-
ever something has interfered with the process, stopping the machine.
A blinking red light and a solid amber light indicates the machine is at the end of a job, the leader
creation sequence is complete and the TM-402 is ready for the next process.
Safety Warning Labels D292105.2a.fm xi
Safety Warning Labels
The following warning labels have been placed in various places on the machine to bring safety
issues to the attention of operators and technicians working with or near the machine.
Attention
Indicates an adjustment or danger zone requiring attention.
Electrical Hazards
Indicates that hazardous voltage levels are present. Always disconnect power to
the machine before removing panels or enclosures with this warning label.
Te m p e r a t u r e H a z a r d s
Indicates a hot surface. Use care when working near these surfaces and allow
them to cool before performing maintenance.
Pinch Hazard
Indicates areas where moving parts or doors can pinch fingers if safety precau-
tions are not observed.
Consult Manual
Consult User’s Guide for proper procedure.
Disconnect power and air supplies and refer to Chapter 7: Maintenance of this
manual before performing maintenance on the TM-402.
Note: Do not remove or obstruct any of the warning or instruction labels on the TM-402.
