7-16 TM-403 User’s Guide
System Alarm Messages D292105.9b.fm
Low Cover Tape System Alarm
The Low Cover Tape sensor is located on the Cover Tape Arm. It
detects when the cover tape supply on the Cover Tape Reel is
below a preset minimum.
If an operator attempts to start a job when the cover tape level is
below the sensor, operation will not begin. Instead a beep will
sound and a Low Cover Warning message will appear on the
HMI.
The operator can either resolve the warning by loading a full reel of cover tape or ignore the
warning and push START again to continue with the current level of cover tape.
Note: The Low Cover Tape warning will only appear once during a job. If the user ignores
the message and continues operation, the TM-402 will continue taping until the job is fin-
ished or the cover tape is empty.
D292105.9b.fm System Alarm Messages
Chapter 7: Troubleshooting 7-17
Job Quantity Inadequate System Alarm
If during the course of a job, the operator changes the job quantity to less than the amount of
parts that have already been processed a Job Quantity Inadequate message will appear on the
HMI.
The operator can resolve the warning by either resetting the job or increasing the job quantity.
Push Continue to clear the alarm message and resume processing.
7-18 TM-403 User’s Guide
System Alarm Messages D292105.9b.fm
End of Job System Alarm
If the operator completes a job and then attempts to run the same job again without resetting the

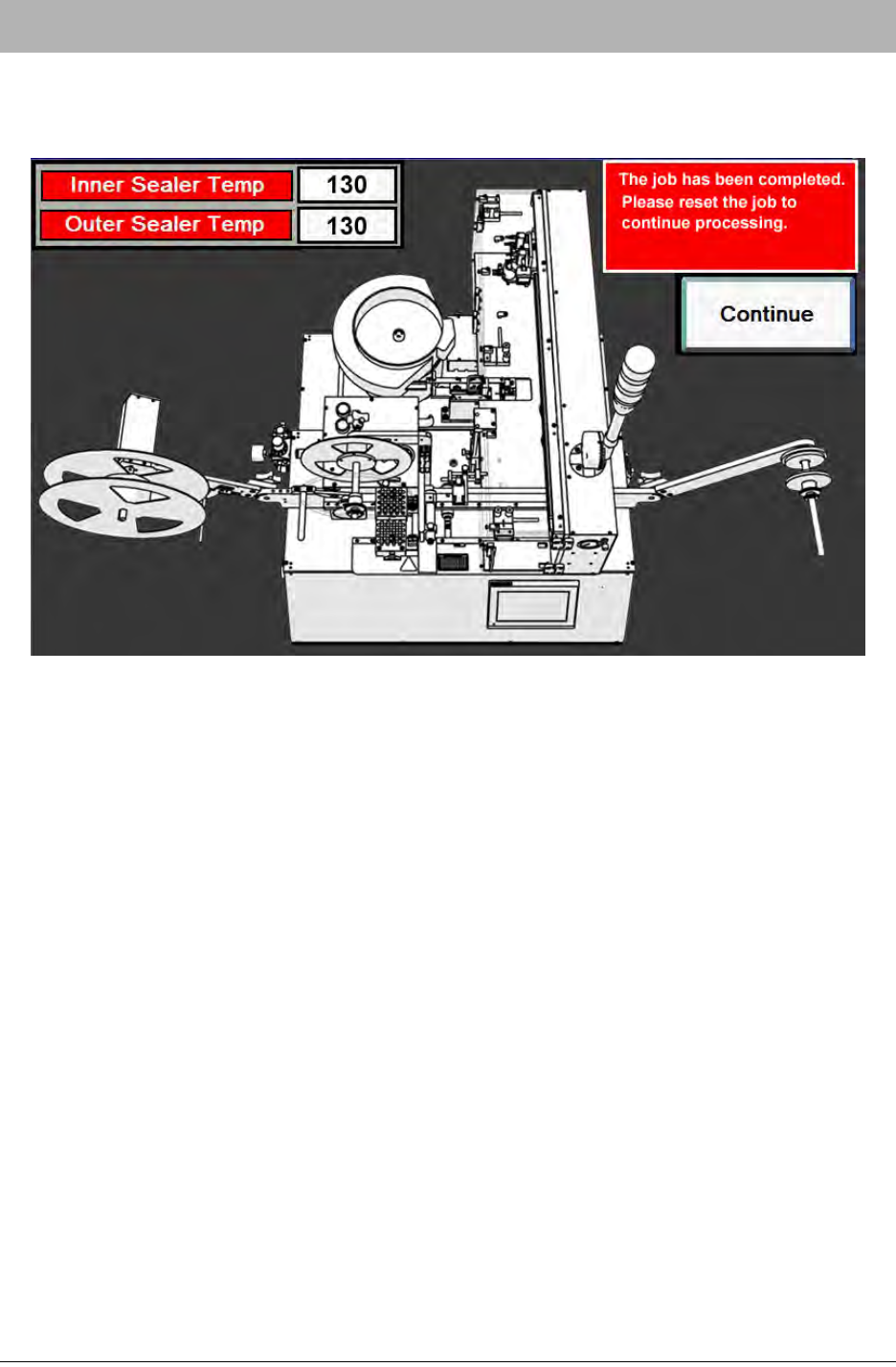

job, an End of Job System Alarm will appear on the HMI.
The operator can resolve the alarm by resetting the job. Push Continue to clear the alarm mes-
sage and resume processing.
