6-10 TM-403 User’s Guide Preparing to Ru n a Pre-programmed Job D292105.8b.fm 3. Press Move T o Pick , then press Pick Part. Observe the vacuum sensor which is located on top of the head to see if it is set correctly for…

D292105.8b.fm Preparing to Run a Pre-programmed Job

Chapter 6: Operation 6- 9

Setup the Pick Head

1. Ensure the correct Nozzle and Nozzle Tip are installed for the job that will be run.:

Note: See the Chapter 4: Setup for nozzle

change procedures.

2. Open the Head Tab on the HMI.

Step 6:

Setup

Pick Head

6-10 TM-403 User’s Guide

Preparing to Run a Pre-programmed Job D292105.8b.fm

3. Press Move To Pick, then press Pick Part. Observe the

vacuum sensor which is located on top of the head to

see if it is set correctly for the current part. The numbers

should be lit in green with components on the nozzle

and red if components are not.

Note: See the Chapter 6: Troubleshooting for vacuum

sensor adjustment procedures.

4. Return to the Head Setup Tab.Press Move To Place, then press Place Part.

Check that the Blow Off Pressure is set correctly for the

current part. The Blow-off Pressure Gauge is located on

the front of the Pick Head Bridge. If components are not

dropping properly, pull the gauge out and rotate to adjust

pressure levels. When the desired pressure level is

reached, push the gauge back in.

Setup Vision

The TM-402 Vision System will automatically revert to the previous inspection. If the

same part is being run, there is no need to retrain the camera. Proceed to Step 8. If a dif-

ferent job/inspection is being run, follow the setup instructions in Chapter 4: Setup.

Step 7:

Setup

Vision

D292105.8b.fm Preparing to Run a Pre-programmed Job

Chapter 6: Operation 6- 11

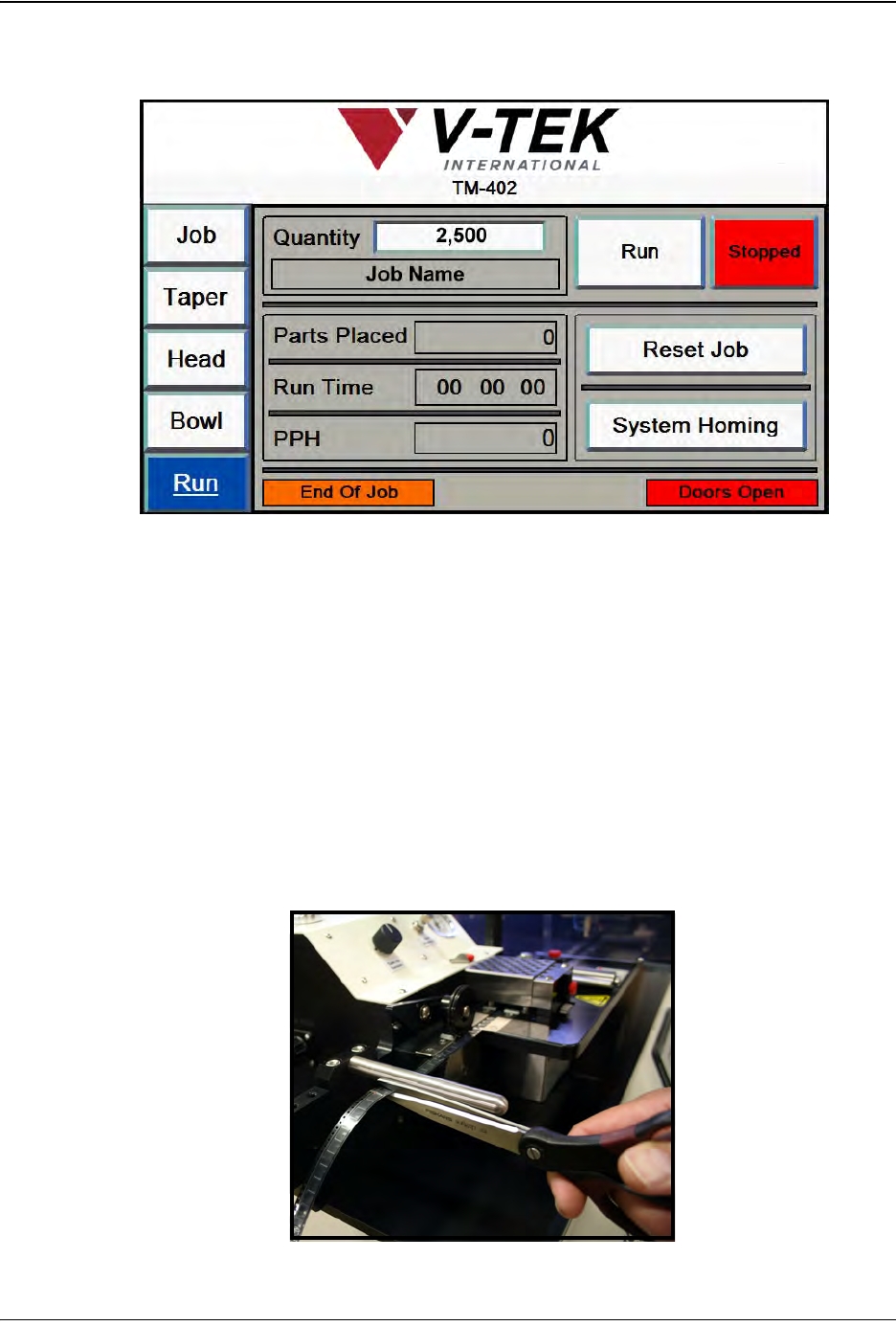

Run the Job

1. Close the enclosure doors, then open the HMI Run Tab and press Run.

During operation, the operator will add additional parts to the Bowl Feeder and

unload packaged parts from the Taper as necessary. The operator may also

replace parts that fail 2D Inspection. Otherwise no other adjustments are required

for a job that has already been defined properly.

2. When the preset number of parts has been run, the TM-402 will automatically stop

operation.

Note: If Leader has been ENABLED, the Taper will continue to seal tape until it

reaches the programmed Leader length. If Leader is DISABLED, the Taper will

continue to seal tape until the last sealed part has reached the cut point.

3. Cut the sealed tape at the cut point and use a piece of blue Permacel tape to

secure the finished reel. Remove processed output.

Step 8:

Run

Job
