5-40 TM-403 User’s Guide Configure Inspection D292105.16c.fm Setup P osition Adjust Detection T ool 1. T ouch the Add T ool button. 2. T ouch the Pos.Adj. button. 3. T ouch the Edit Window b utton. Step 2: Vision Setup C…
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 39
7. Touch the Limit Adjustment button.
8. Set the threshold to judge OK and NG, then touch OK. The display will return to
the main screen for the Color Area/Area tool.
9. Touch OK, then touch Next to proceed to “STEP4”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
5-40 TM-403 User’s Guide
Configure Inspection D292105.16c.fm
Setup Position Adjust Detection Tool
1. Touch the Add Tool button.
2. Touch the Pos.Adj. button.
3. Touch the Edit Window button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 41

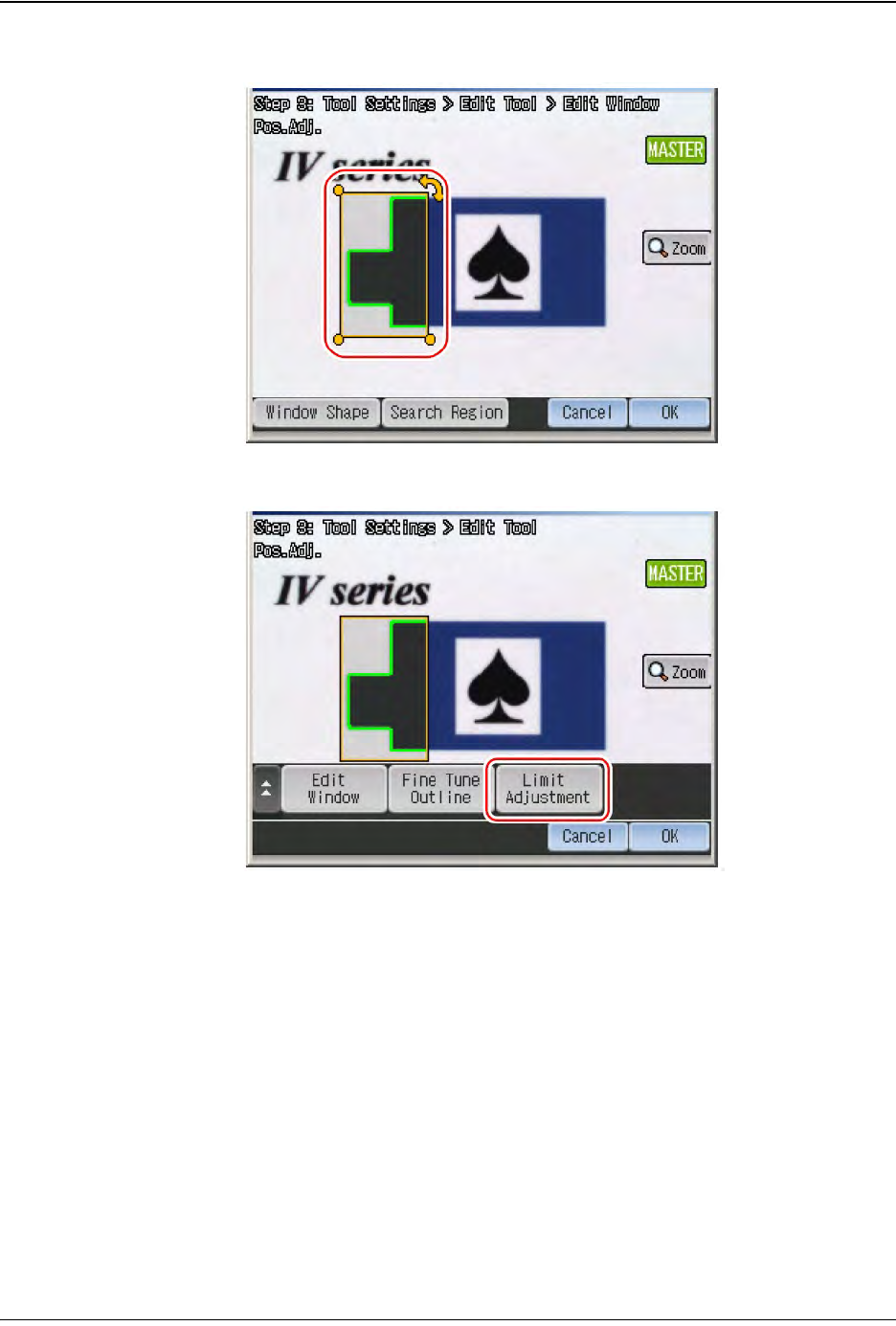

4. Set the position, size, and the angle of the tool window. The detected outline will be
displayed in green. Touch OK.
5. Touch the Limit Adjustment button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
