6-6 TM-403 User’s Guide Preparing to Ru n a Pre-programmed Job D292105.8b.fm Setup the Bo wl F eeder 1. On the HMI, select Bowl from the tab menu on the lef t to open the Bowl Setup Ta b . 2 . Ensure the correct track si…
D292105.8b.fm Preparing to Run a Pre-programmed Job
Chapter 6: Operation 6- 5
2. Press the Home All Motors button.
The motor homing sequence begins with the nozzle moving slowly upwards (Z
Axis movement). After about a three second delay, the pick head will begin to
move slowly to the right towards the taper (X Axis movement).
The pick head homing sequence will continue until the nozzle has risen to its
highest position and then returned to home and the head has moved all the way to
the right and then returned to home.
Homing progress is displayed as a green bar in the Pick Axis Motor field of the
Homing window. Once the nozzle and head have stopped moving, homing is
complete. A Homing Succeeded! message will appear on the bottom of the
screen.
Step 2:
Home
Motors
6-6 TM-403 User’s Guide
Preparing to Run a Pre-programmed Job D292105.8b.fm
Setup the Bowl Feeder
1. On the HMI, select Bowl from the tab menu on the left to open the Bowl Setup
Tab.
2. Ensure the correct track size is installed for the part which will be run.
3. Load parts into the Bowl Feeder.

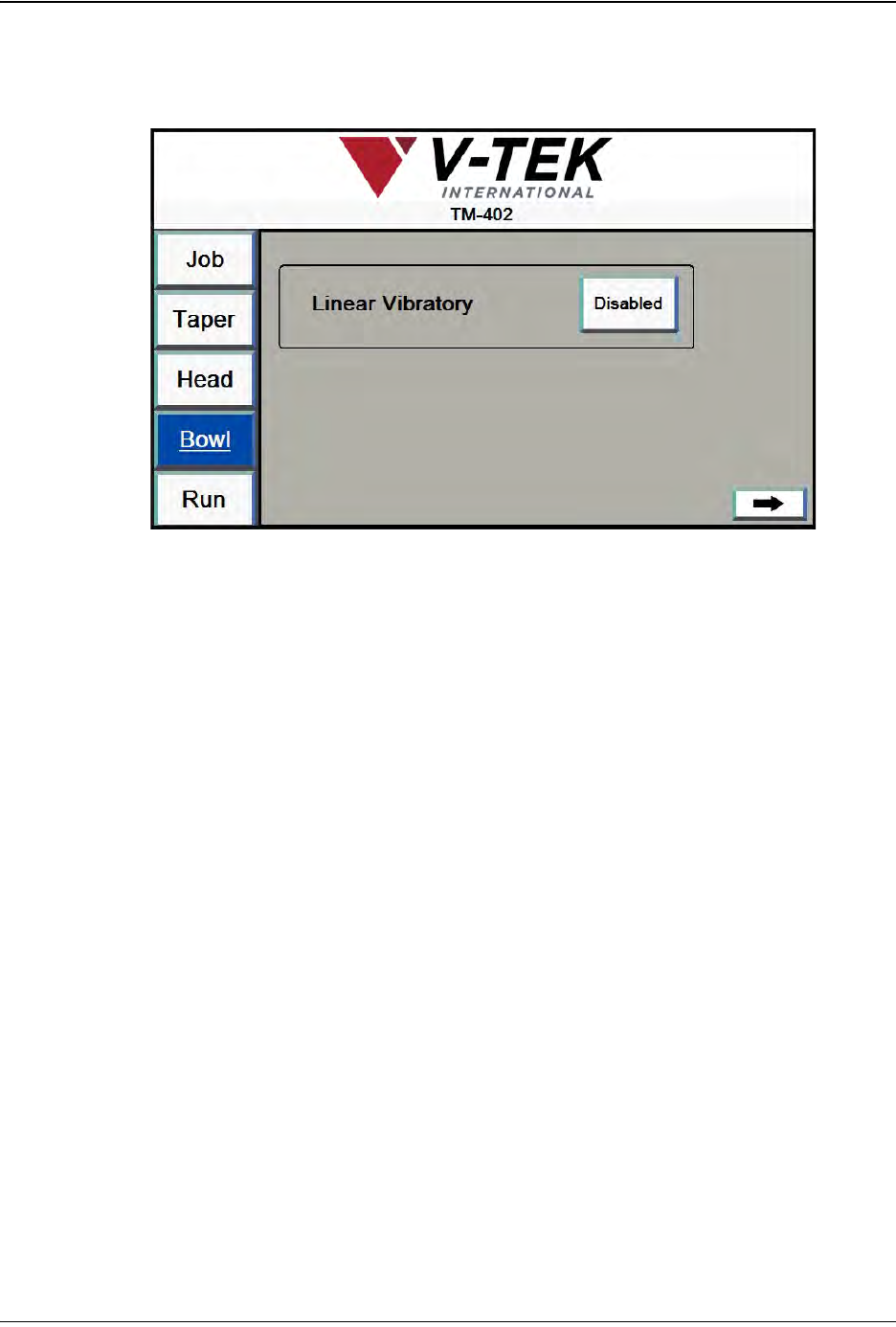

4. In the HMI Bowl Settings Tab, turn the Linear Vibratory to Enabled. The Linear
Track will turn on and activate the Bowl and Hopper, feeding parts into the Bowl.
5. Manually adjust the Vibratory Controls on the Bowl Assembly for Linear Track
and Bowl as needed to suit the type of component that is being processed.
Step 3:
Setup
Bowl Feeder
D292105.8b.fm Preparing to Run a Pre-programmed Job
Chapter 6: Operation 6- 7
Setup the Taper
1. Load the correct carrier tape and cover
tape, adjusting the track width as
necessary.
2. Select PSA or Heat seal.
3. Align cover tape with carrier tape.
4. Run a pull test and adjust seal strength
as needed.
5. Place an empty reel onto the take-up
reel spindle.

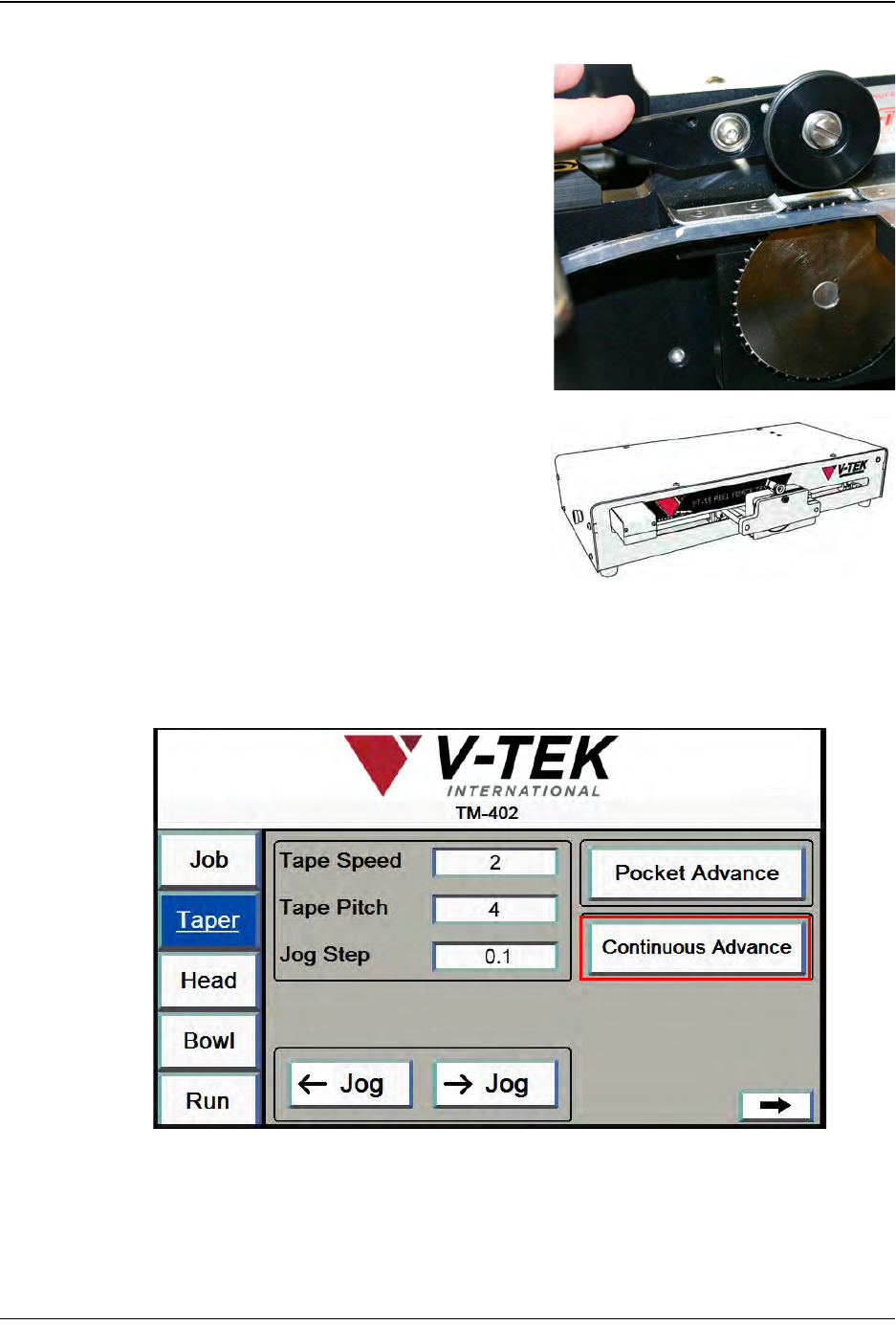

6. Use the Continuous Advance button on the Taper Tab to run out the tape until it
can be attached to the reel.
The tape normally can be attached by inserting it into the reel hub or with blue
Permacel tape.
Step 4:
Setup
Ta p e r
