D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 41
4. Set the position, size, and the angle of the tool window. The detected outline will be
displayed in green. Touch OK.
5. Touch the Limit Adjustment button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
5-42 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

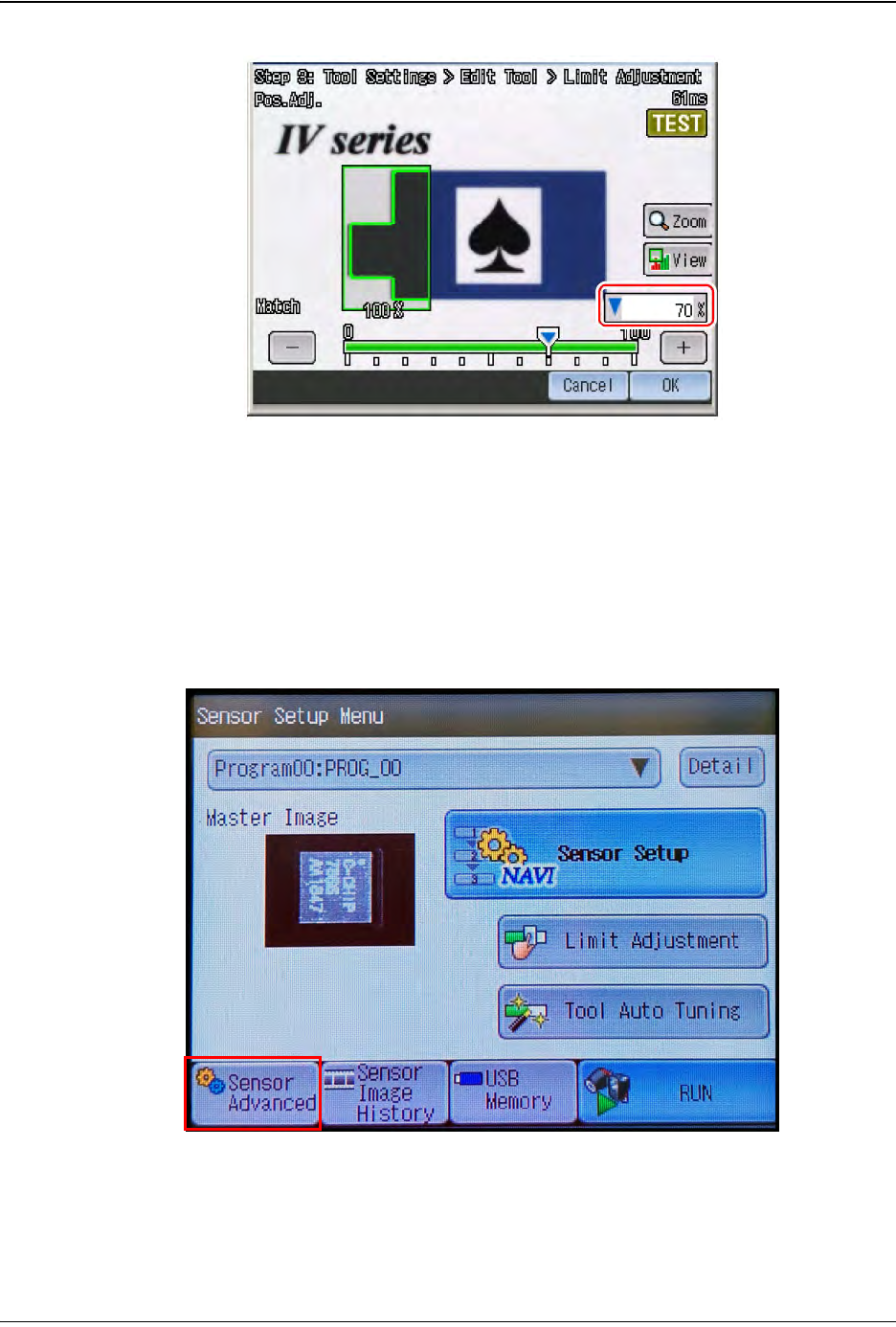

6. Set the threshold to judge OK and NG.
7. After the setting is completed, touch OK. The display will return to the main screen
for Position Adjustment tool.
8. Touch OK again, then touch Next to proceed to “STEP4”.
Confirm I/O Settings
1. In the Sensor Setup Menu, touch Sensor Advanced.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 43

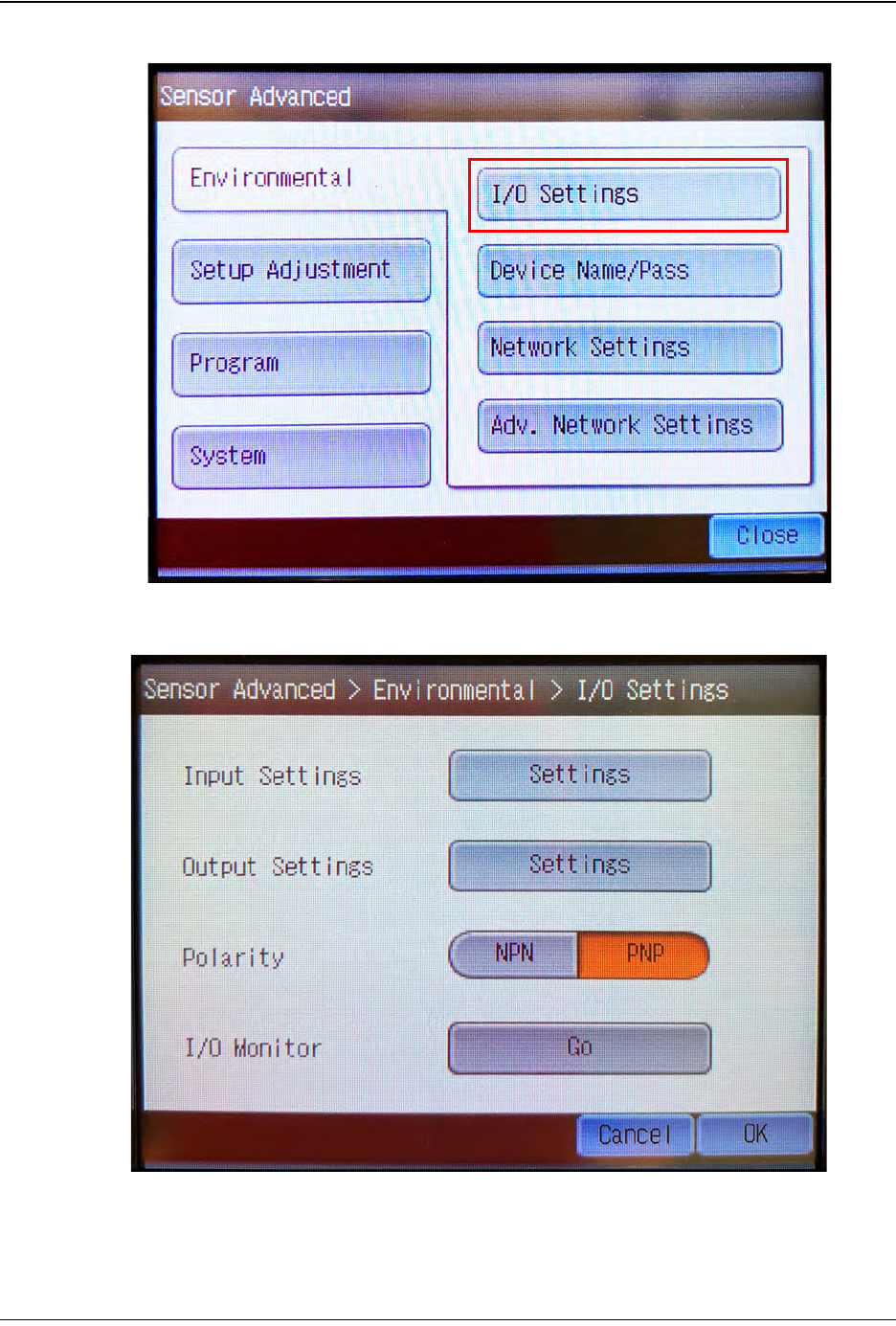

2. In the Sensor Advanced screen, touch I/O Settings.
3. In the I/O Settings screen, ensure Polarity is set to PNP.
(A)
Next, touch the Output Settings button. (B)
Step 2:
Vision
Setup
CONFIGURE
MONITOR
A
B
