D292105.9b.fm System Alarm Messages
Chapter 7: Troubleshooting 7-17
Job Quantity Inadequate System Alarm
If during the course of a job, the operator changes the job quantity to less than the amount of
parts that have already been processed a Job Quantity Inadequate message will appear on the
HMI.
The operator can resolve the warning by either resetting the job or increasing the job quantity.
Push Continue to clear the alarm message and resume processing.
7-18 TM-403 User’s Guide
System Alarm Messages D292105.9b.fm
End of Job System Alarm
If the operator completes a job and then attempts to run the same job again without resetting the
job, an End of Job System Alarm will appear on the HMI.
The operator can resolve the alarm by resetting the job. Push Continue to clear the alarm mes-
sage and resume processing.
D292105.9b.fm System Alarm Messages
Chapter 7: Troubleshooting 7-19

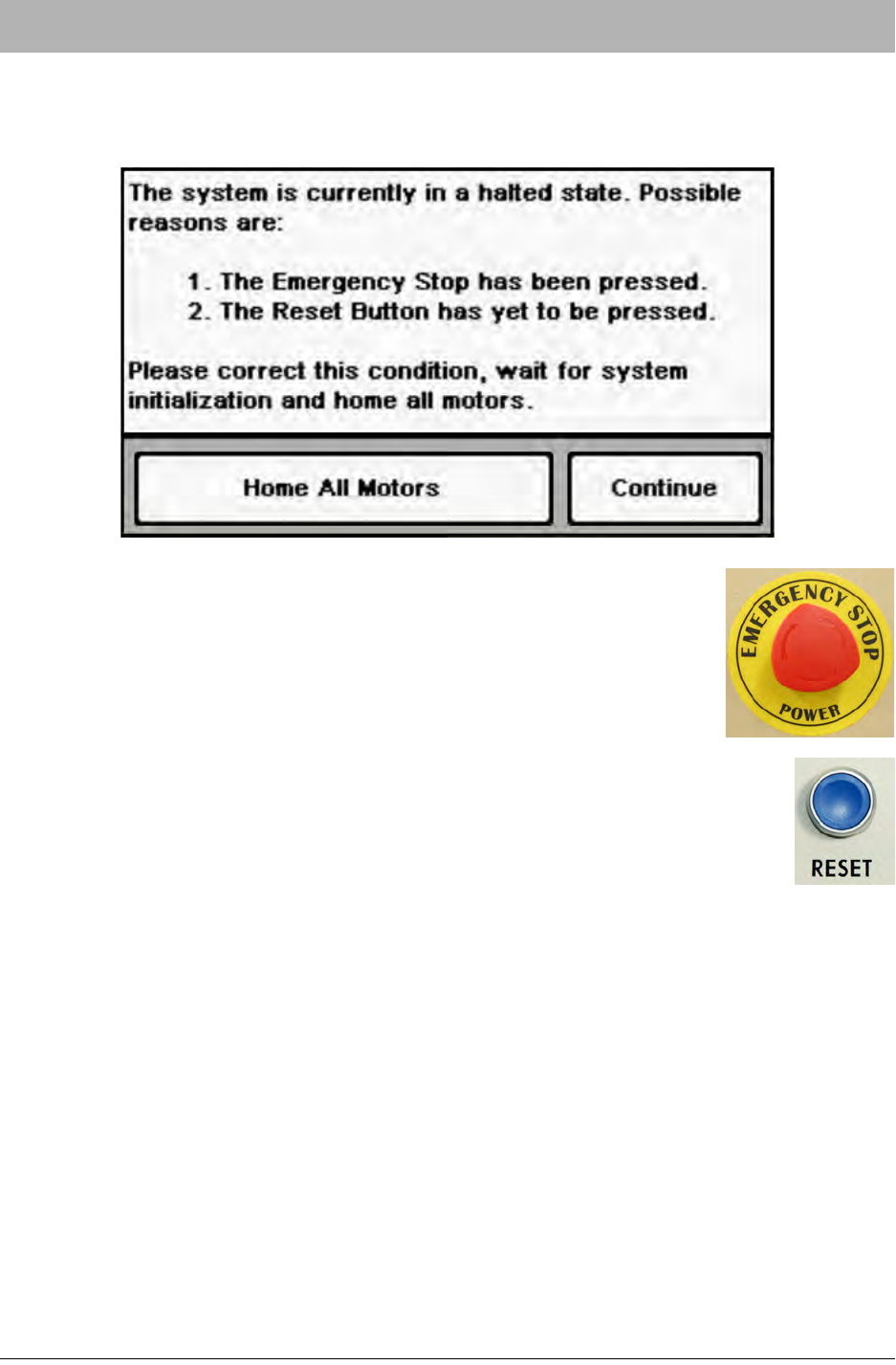

Halted State Error Condition
If the E-Stop button is pressed or the system is started up and the Reset button is not pressed,
the following message will appear on the HMI.
To resolve the error message, clear the emergency stop condition, then
twist and release the E-Stop button.
Press the Reset button. Once the system has finished booting, open the
HMI Job Tab and press Home Required to begin the motor homing sequence.
