D292105.4a.fm Preparing the Work Area

Chapter 1: Assembly & Installation 1- 3

Table Requirements

The TM-402 should be placed on a user-supplied table or bench that is capable of supporting a

minimum of 290 lb. (132 kg). An optional 80/20 frame (pictured above) is also available for

mounting the TM-402.

Choose a table that is at least 52” wide by 36” deep to provide sufficient space for the assembled

machine when it is fully loaded with a variety of tape reel sizes.

Ideally the table height should be adjustable so the machine height can be easily adjusted to suit

operators of varying heights. The objective is to position the TM-402 controls so they are easily

accessible for operation and maintenance. The suggested level is 36” (900 mm) above the floor,

but this may vary from one operator to another.

The table’s working surface should have a slope of no more than 5 degrees. Ensure that the TM-

402 feet is positioned on a table or the optional 80/20 frame so the machine is fully supported,

immobilized and level during operation.

Clearance

Allow at least three feet of clearance on all sides of the machine for easy access and operation.

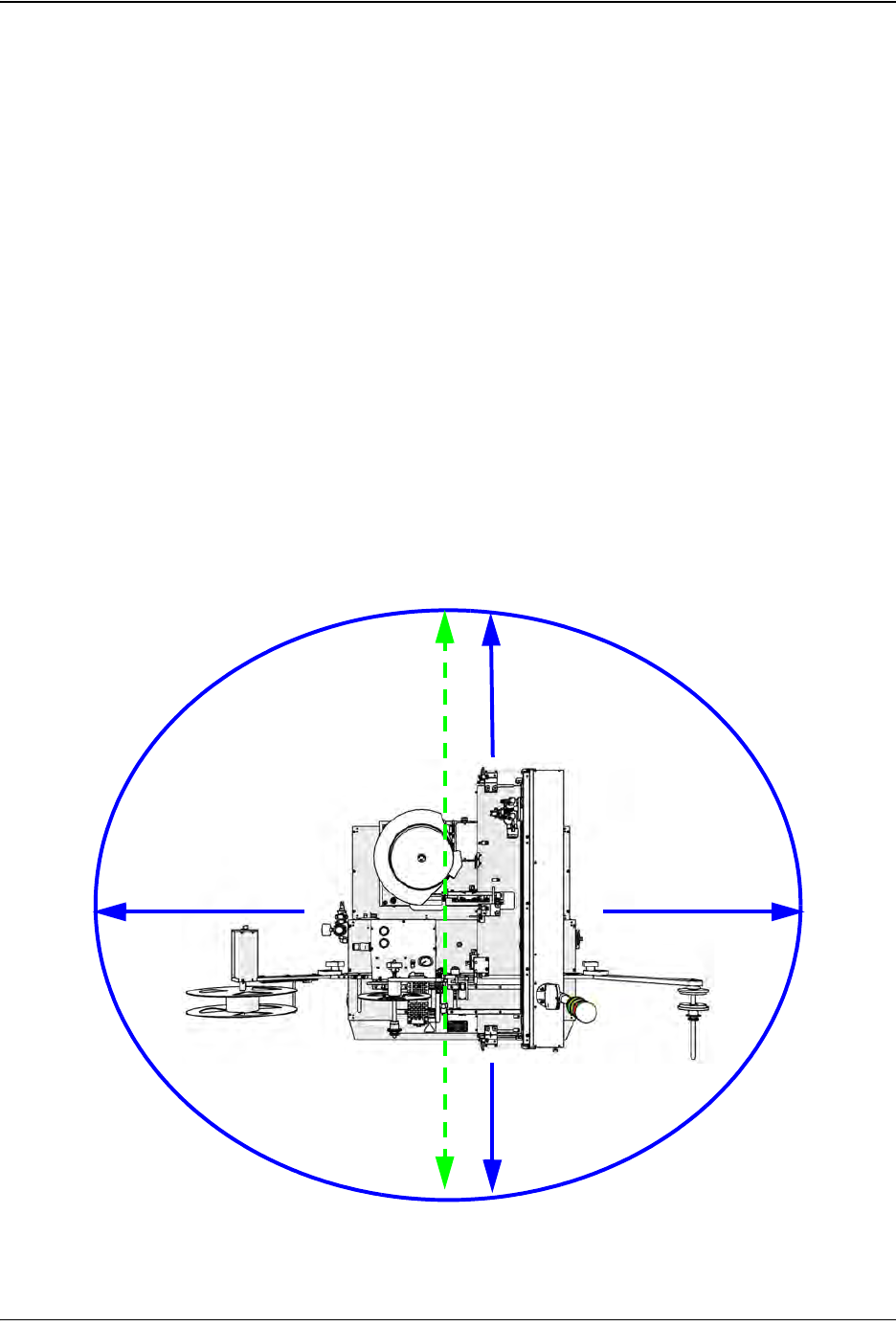

A birds-eye view of the TM-402 with minimum clearance on all sides is shown below.

Minimum clearance

3’ on all sides

Minimum Work

Space Depth

9 feet x 11 feet

1-4 TM-403 User’s Guide

Preparing the Work Area D292105.4a.fm

When positioning the TM-402, choose an area that is not located below overhead gantries, walk-

ways or power lines to ensure objects or liquids cannot be dropped on the machine from over-

head.

Power Requirements

The TM-402 will also require access to a 85-110 PSI air pressure system and a 240 VAC, 50/60

Hz power supply. Locate the machine so electrical power cables can be routed away from areas

where personnel are expected to move.

Note: It is recommended that cables be routed overhead or underground. If cables must

be routed over the floor, cover them with rubber ramps.

D292105.4a.fm Unpacking the TM-402

Chapter 1: Assembly & Installation 1- 5

Unpacking the TM-402

Prior to shipment, the TM-402 is partially disassembled, then shrink wrapped, placed in a crate,

and strapped to the crate floor. The disassembled TM-402 parts, which include the Carrier Tape

Arm, the Take-up Assembly, the Bowl Feeder and the Spare Parts Kit, are individually bubble-

wrapped and packed around the base machine. The TM-402 crate should contain the base

machine along with the following items:

A. 240 Volt Bowl Feeder

B. Carrier Tape Arm

C. Take-up Arm

D. 80/20 Frame (optional, shipped disassembled)

E. Laptop Computer (optional, not pictured)

A User’s Guide, Standard and Metric Hex Wrench Sets, and a Spare Parts Kit are also

included but not pictured above.

Note: Bowl appearance will vary depending on part size to be processed and the bowl

which was selected at the time of purchase.
