2-6 TM-403 User’s Guide Controls, Connections & La beling D292105.5b.fm Contr ols, Connections & Labeling Reset Button The TM-402’ s blue Reset Button is located on the lef t side of the machine below the Ta k e …
D292105.5b.fm Back View
Chapter 2: TM-403 Overview 2-5
Back View
A. Carrier Tape Arm K. Pick Head Jog Buttons
B. Carrier Arm Adjustment Knob L. Heat/PSA Sealer
C. Main Power Switch M. Bowl Feeder
D. Fuse Holders (Bowl application only) N. Amplitude Adjustment Knobs
E. Pick Head Enclosure O. Ethernet Connection
F. Tower Light P. Keyence Monitor Connection
G. Pick & Place Head Assembly Q. Bowl Feeder Power Connection
H. 2D Vision System R. Air Pressure Regulator
I. Taper Assembly S. Take-up Arm
J. Cover Tape Arm T. Power Receptacle
A
C
E
D
F
G
J
L
B
Q
H
I
K
K
O
P
M
R
S
T
N
2-6 TM-403 User’s Guide
Controls, Connections & Labeling D292105.5b.fm
Controls, Connections & Labeling

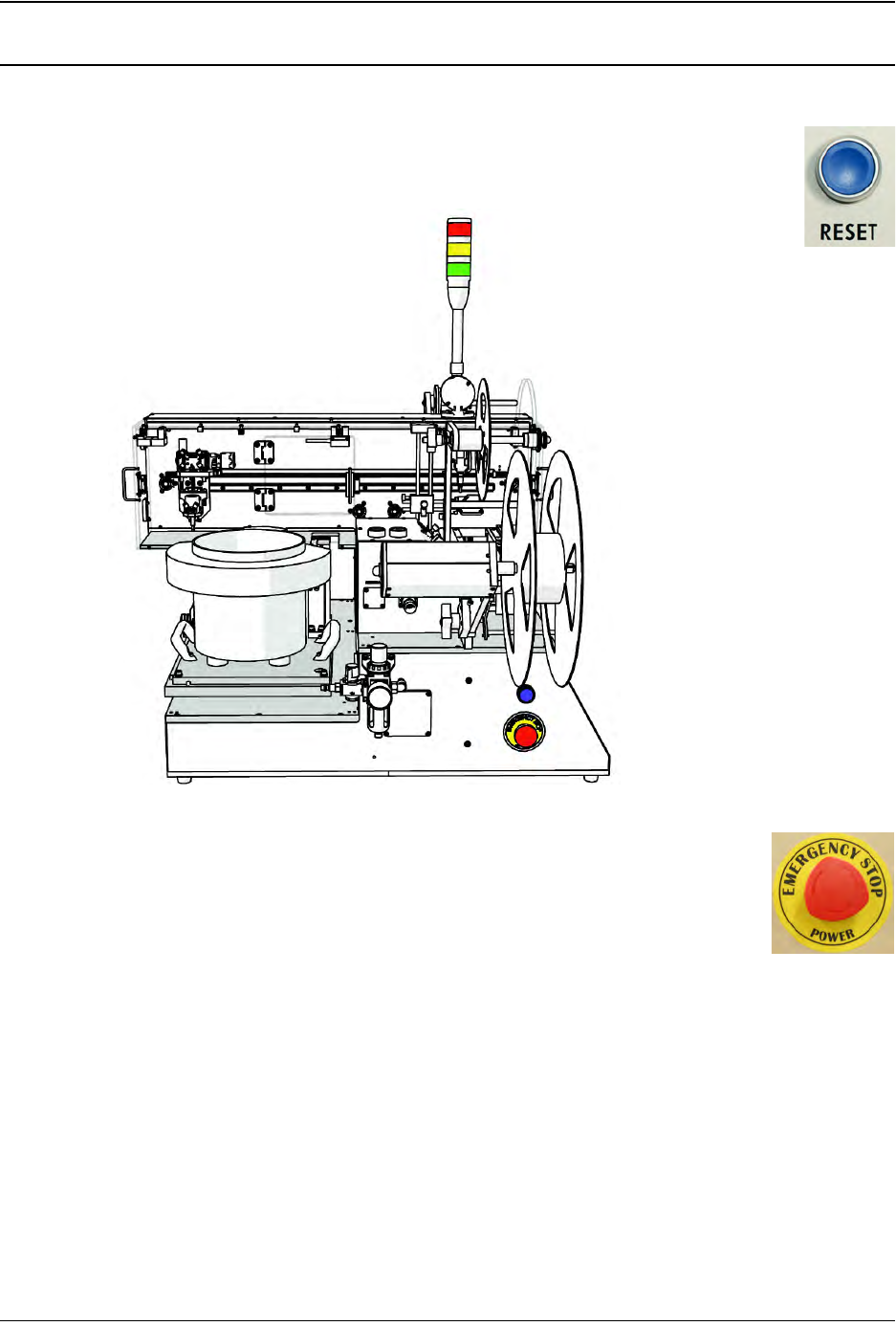

Reset Button
The TM-402’s blue Reset Button is located on the left side of the machine
below the Take-up Arm. (pictured below)
Emergency Stop Switch
The Emergency Stop Switch is located on the left side of the machine below
the blue Reset Button. (pictured above)
D292105.5b.fm Controls, Connections & Labeling
Chapter 2: TM-403 Overview 2-7

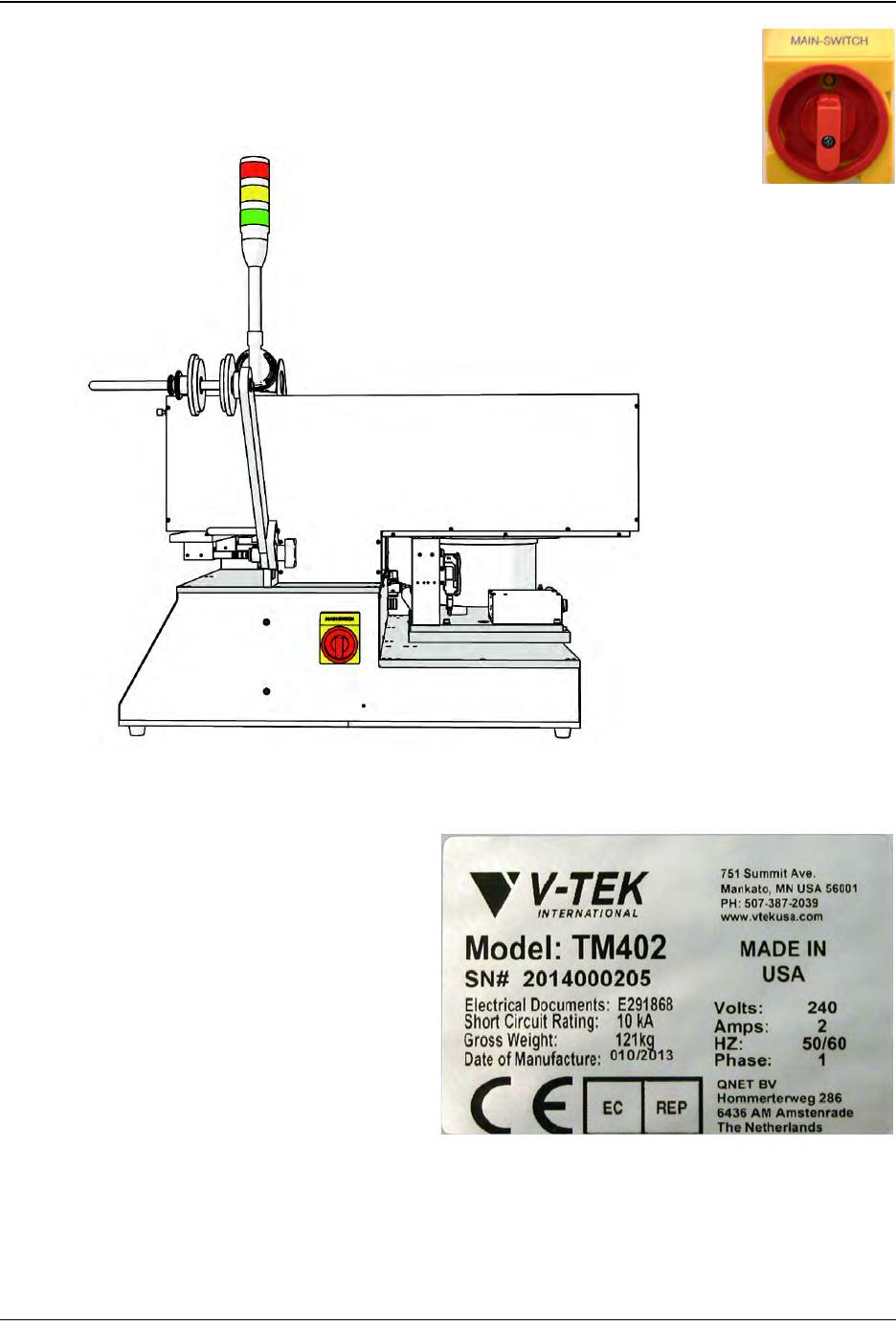

Main Power Switch
The Main Power Switch is located on the right side of the machine behind the
Carrier Tape Arm on the lower sheet metal enclosure.
Serial Plate
This is an example of the Serial Plate which is
permanently affixed to the back of the TM-
402. It includes basic machine information
such as machine weight, power usage and
short circuit rating. The Serial Plate also docu-
ments machine specific information such as
the machine’s model name, date of manufac-
ture and unique serial number
