4-22 TM-403 User’s Guide
Configure HMI Settings D292105.7b.fm
12. Set Rotation Angle
a. Press the Placement Rotation Angle field to toggle through the rotation
options. The options are 0, -90 and +90. Select the correct placement angle.
• If rotation is set at 0,
the part will be placed
in the same orientation
as it was picked.
• If rotation is set at -90,
the part will be rotated
90 degrees clockwise
prior to placement.
• If rotation is set at +90,
the part will be rotated
90 degrees counter-
clockwise prior to
placement.
b. Press the right Arrow Key to move to the next Job Wizard screen.
Step 6:
Setup HMI
PICK
HEAD
-90
0
+90
Rotation Options
D292105.7b.fm Configure HMI Settings
Chapter 4: Setup 4- 23
13. Verify Job Settings
Test the job settings, using the Pick Part and Place Part buttons to pick and
place parts. If adjustment are required, use the left Arrow key to return to the
desired step and adjust settings. Press the right Arrow Key to move to the next
Job Wizard screen.
Note: Manually placed parts will be counted in the current job.
14. Vision Settings
a. Set Camera State to Enabled or Disabled.
b. If camera is enabled, enter number of Parts Until Inspection (do not include
part at Pick point.). Press the right Arrow Key to move to the final Job Wizard
screen.
Step 6:
Setup HMI
VERIFY
Step 6:
Setup HMI
VISION
4-24 TM-403 User’s Guide
Configure HMI Settings D292105.7b.fm

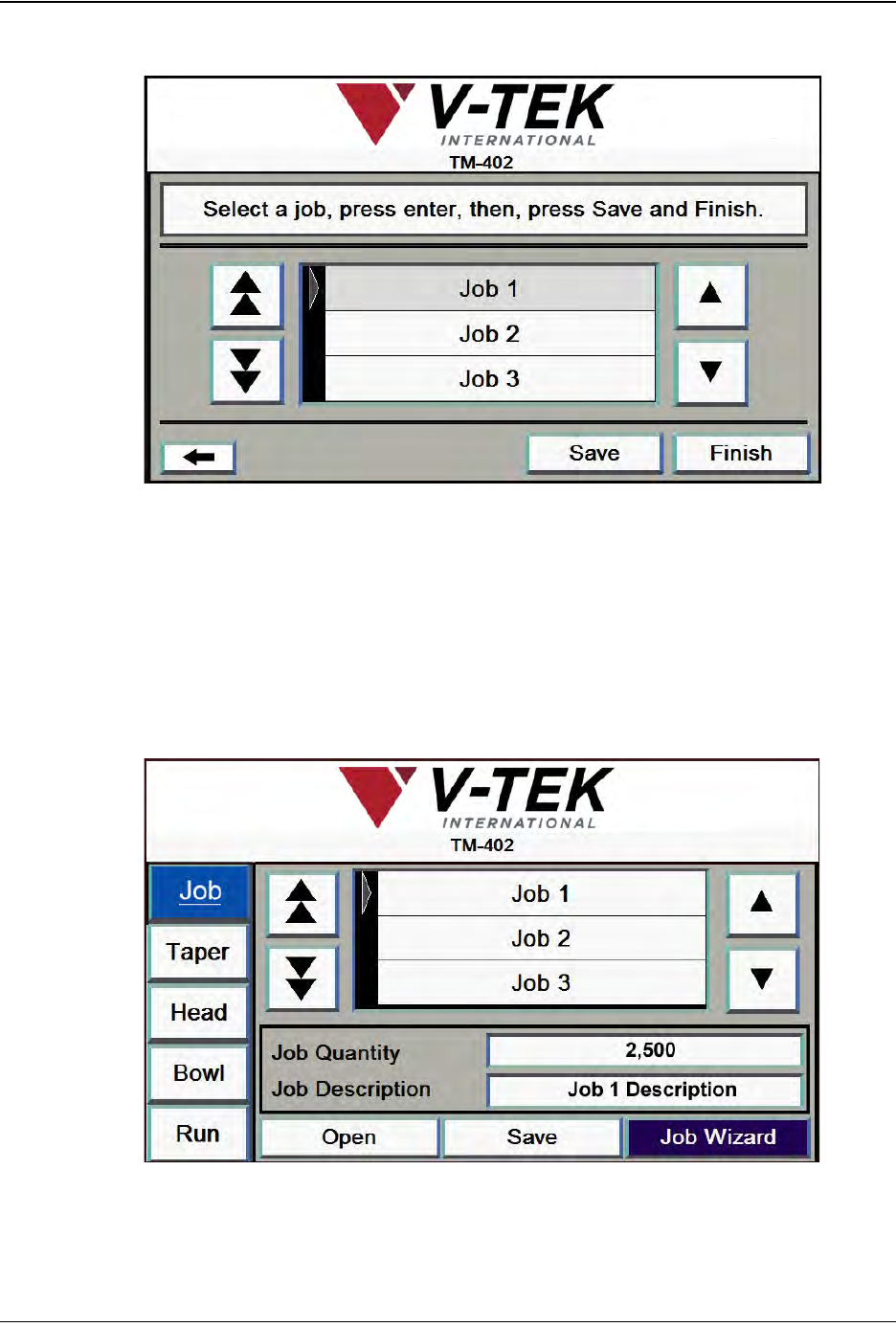

15. Save Job Settings
a. Browse through the Job Library using the Up/Down Arrow keys to move up or
down through the list. To select a Job Name from the list, press the Enter key.
Note: The Save function will overwrite the information stored for the currently
selected job. Therefore, it is important to select the desired job prior to pressing
the Save button.
b. Press the Save button to save job settings to the selected job name, then
press Finish to close the Job Wizard and return to the main Job Tab.
Step 6:
Setup HMI
SAVE
SETTINGS
