4-6 TM-403 User’s Guide Load the Bo wl Feeder D292105.7b.fm 7. Click the right Arrow to move to the second Bowl Setup Screen .. 8. Set the desired times in milliseconds for Bowl On Delay , Bowl Off Delay , Empty Nest Tim…

D292105.7b.fm Load the Bowl Feeder

Chapter 4: Setup 4- 5

Load the Bowl Feeder

1. To prepare the Bowl Feeder for operation, ensure the correct Bowl and Linear

Track are installed for the part which will be run.

2. Load the Bowl with parts. Do not overfill.

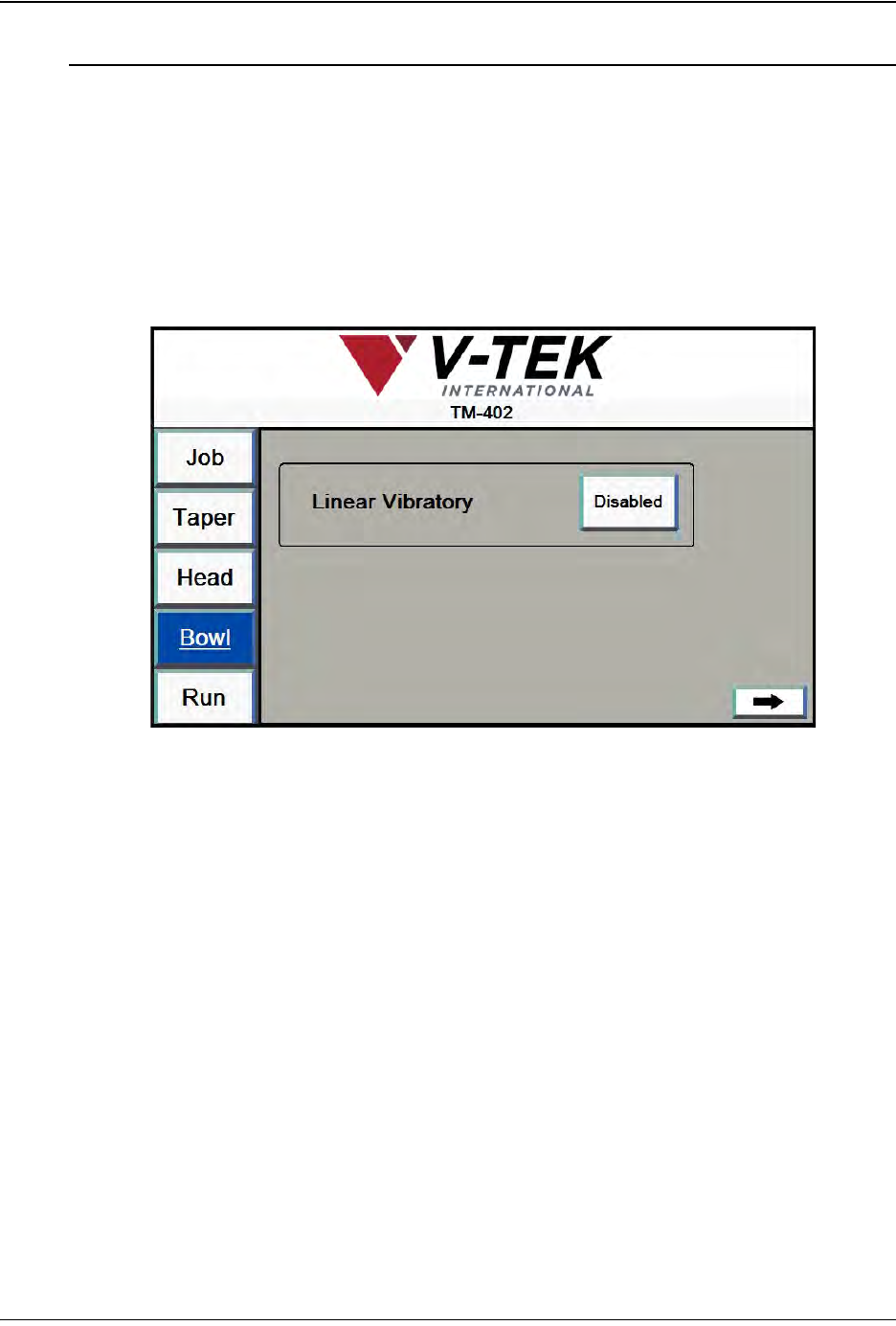

3. On the HMI, select Bowl from the tab menu on the left to open the Bowl Setup

Tab..

4. Enable the Linear Vibratory. The Linear Track will turn on and activate the Bowl

5. Manually adjust the Vibratory Controls for Linear Track and Bowl as needed to

suit the type of component that is being processed. Parts should move fluidly into

the track and on to the nest.

Step 3:

Load the

Bowl Feeder

4-6 TM-403 User’s Guide

Load the Bowl Feeder D292105.7b.fm

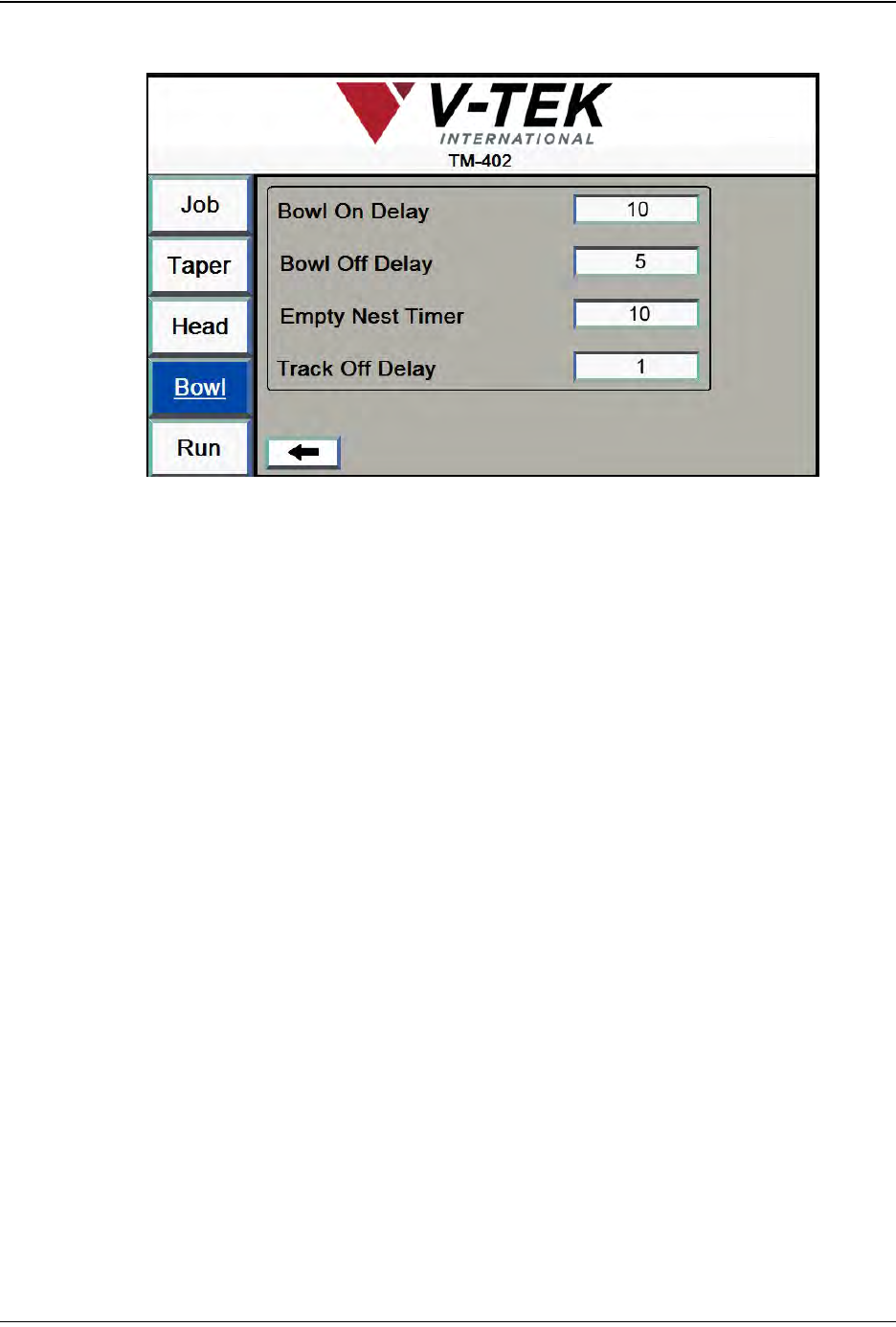

7. Click the right Arrow to move to the second Bowl Setup Screen..

8. Set the desired times in milliseconds for Bowl On Delay, Bowl Off Delay, Empty

Nest Timer and Track Off Delay.

The Bowl Feeder is now ready to operate. Feeder settings will be configured later

in this chapter in the Job Wizard section.

D292105.7b.fm Nozzle Installation

Chapter 4: Setup 4- 7

Nozzle Installation

The TM-402’s is shipped with the following nozzles and nozzle tips:

• (1) Quad Nozzle Shank (Part # 267090)

• (1) Small Precision Tool (SPT) Nozzle Shank (Part # 267091)

• (1) Convum Nozzle Shank (Part # 267008)

• (1) Large Quad Vacuum Cup (Part # 201297)

• (1) Medium Quad Vacuum Cup (Part # 201298)

• (1) Small Quad Vacuum Cup (Part # 201299)

• (1) SPT Vacuum Cup (Part # 201271)

• (1) Convum Vacuum Cup (Part # 201207)

• (2) Nozzle O-Rings (Part # 212025)

Note: Nozzle Tips are available in a wide range of sizes and style. See the Sug-

gested Spare Parts List in the back of this User’s Guide for more details. Contact

V-TEK Service for information on ordering additional Nozzle Tips.

Selecting the Correct Nozzle & Nozzle Tip

To achieve the best picking results, select the largest cup size the part can accommo-

date. Maximizing the cup size gives the vacuum access to more surface area which

increases its pick-up capability. The goal is to use a nozzle cup that is just slightly smaller

than the part being picked.

The Convum bellows-style cups have a flexible flange that are useful for picking irregular

or heavy parts.

Step 4:

Nozzle

Installation

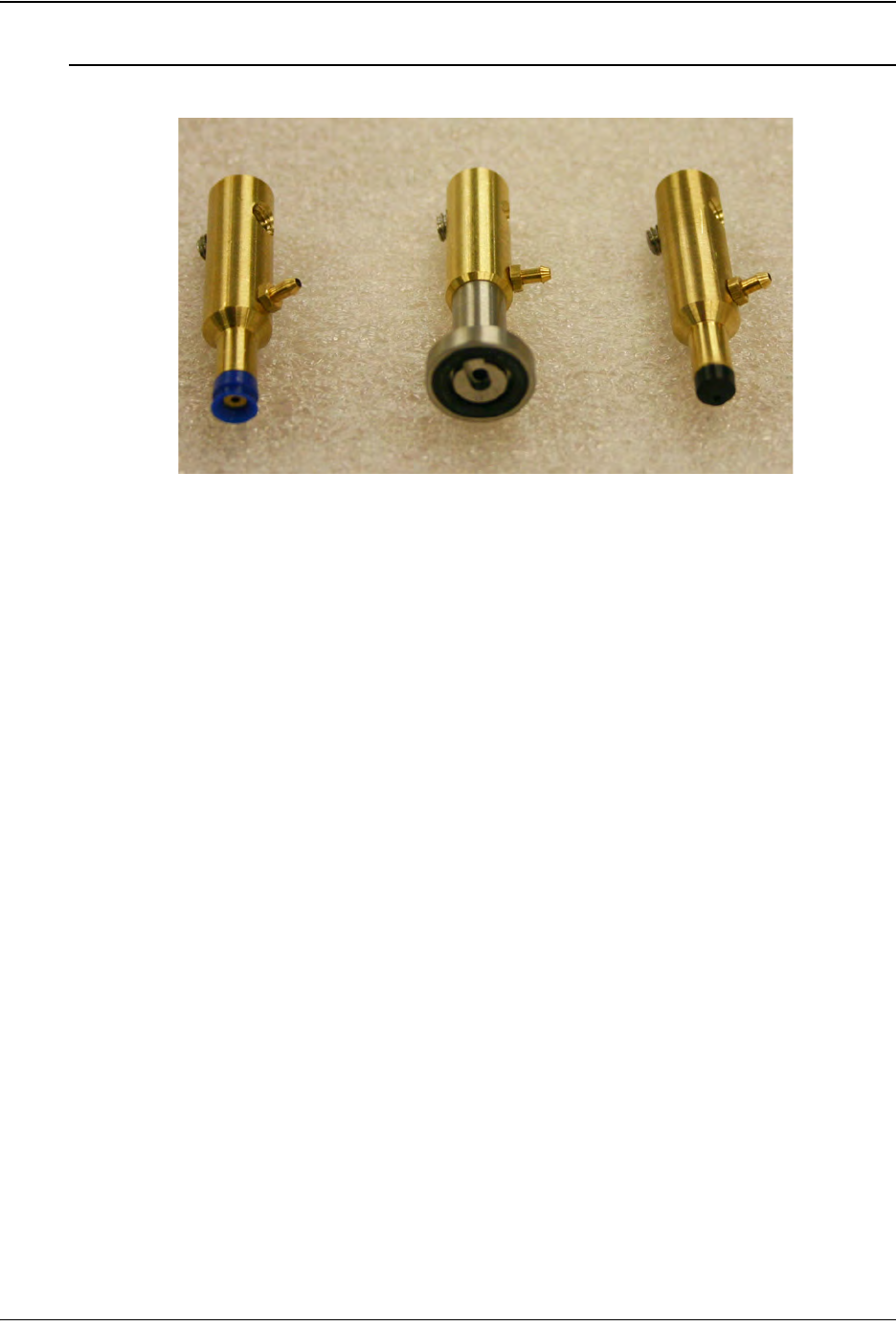

SELECT

NOZZLE

Convum Quad SPT
