3-16 TM-403 User’s Guide Job Tab D292105.6a.fm B. If the camera is enabled, en ter the number of pockets between the Place point and the Inspection point in th e Parts Until Inspection field. Begin the count with the Pla…
D292105.6a.fm Job Tab
Chapter 3: Human Machine Interface 3-15

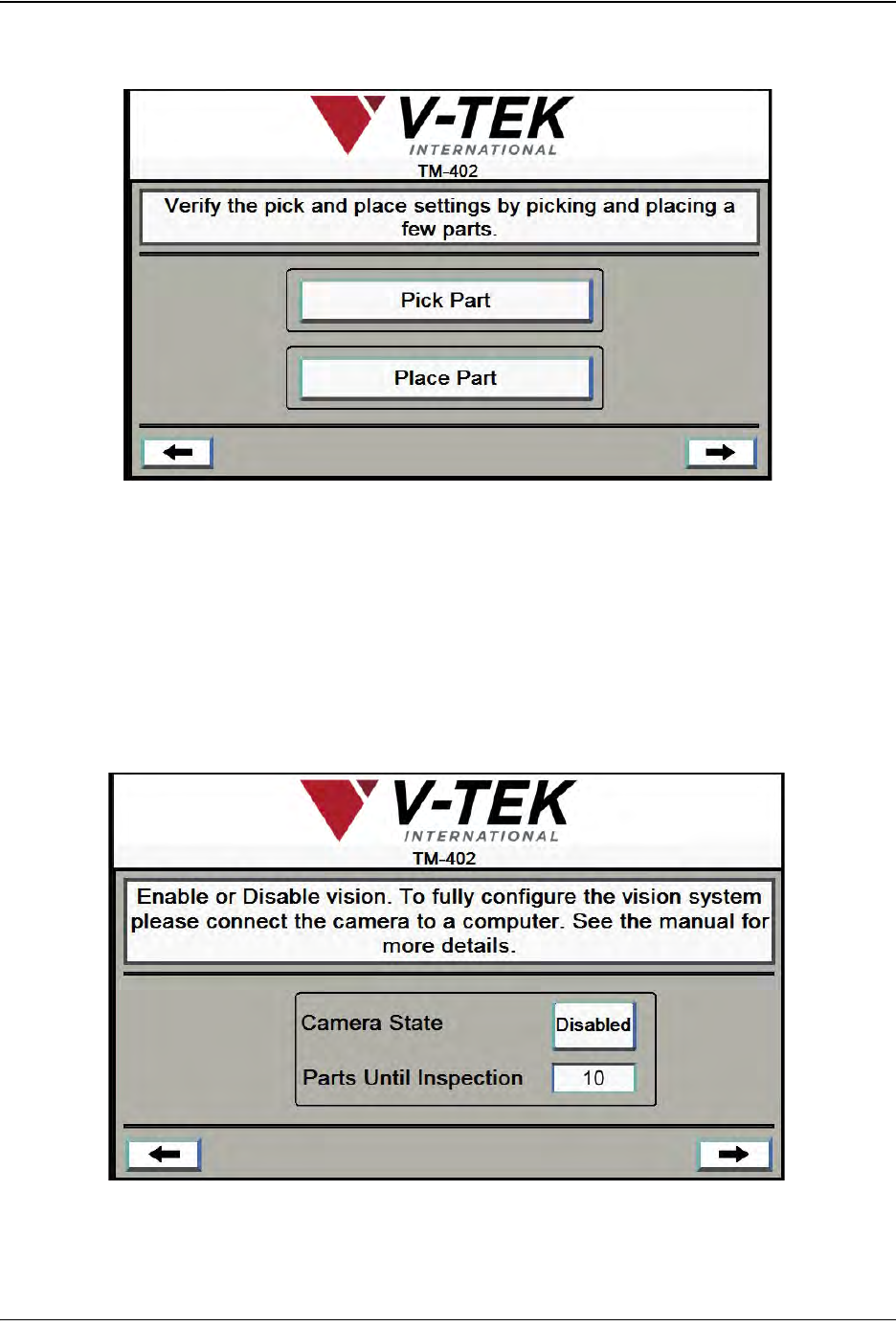

14. Press the right Arrow Key to move to the next Job Wizard screen.
A. Test the job settings, using the Pick Part and Place Part buttons to pick and place
parts.
B. If adjustment are required, use the left Arrow key to return to the desired step and
adjust settings until the TM-402 picks and places parts as desired.
15. Press the right Arrow Key to move to the next Job Wizard screen.
A. Select the Camera State to Enabled and Disabled as desired.
Job Wizard Step 11
A
B
Job Wizard Step 12
3-16 TM-403 User’s Guide
Job Tab D292105.6a.fm
B. If the camera is enabled, enter the number of pockets between the Place point
and the Inspection point in the Parts Until Inspection field. Begin the count with
the Place position as zero so the Place pocket is not included in the count.

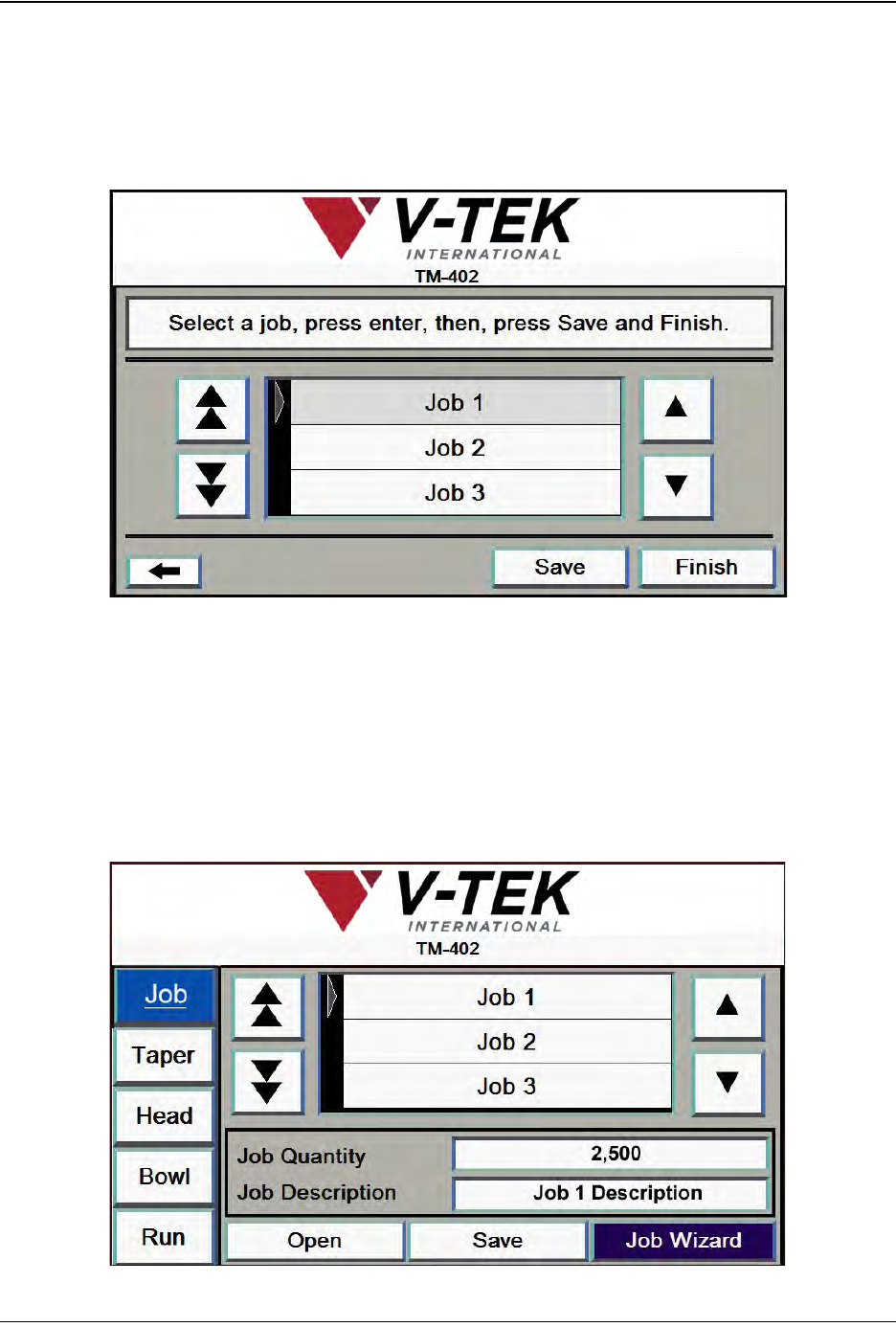

16. Press the right Arrow Key to move to the final Job Wizard screen.
A. Browse through the Job Library using the Up/Down Arrow keys to move up or
down through the list. To select a Job Name from the list, press the Enter key.
Note: The Save function will overwrite the information stored for the currently selected
job. Therefore, it is important to select the desired job prior to pressing the Save button.
B. Press the Save button to save job settings to the selected job name.
C. Press Finish to close the Job Wizard and return to the Job Tab.
A
B C
Job Wizard Step 13
D292105.6a.fm Taper Tab
Chapter 3: Human Machine Interface 3-17
Ta p e r Ta b
The Taper Tab allows the user to adjust taper settings by leading them through four Taper Setup
screens.

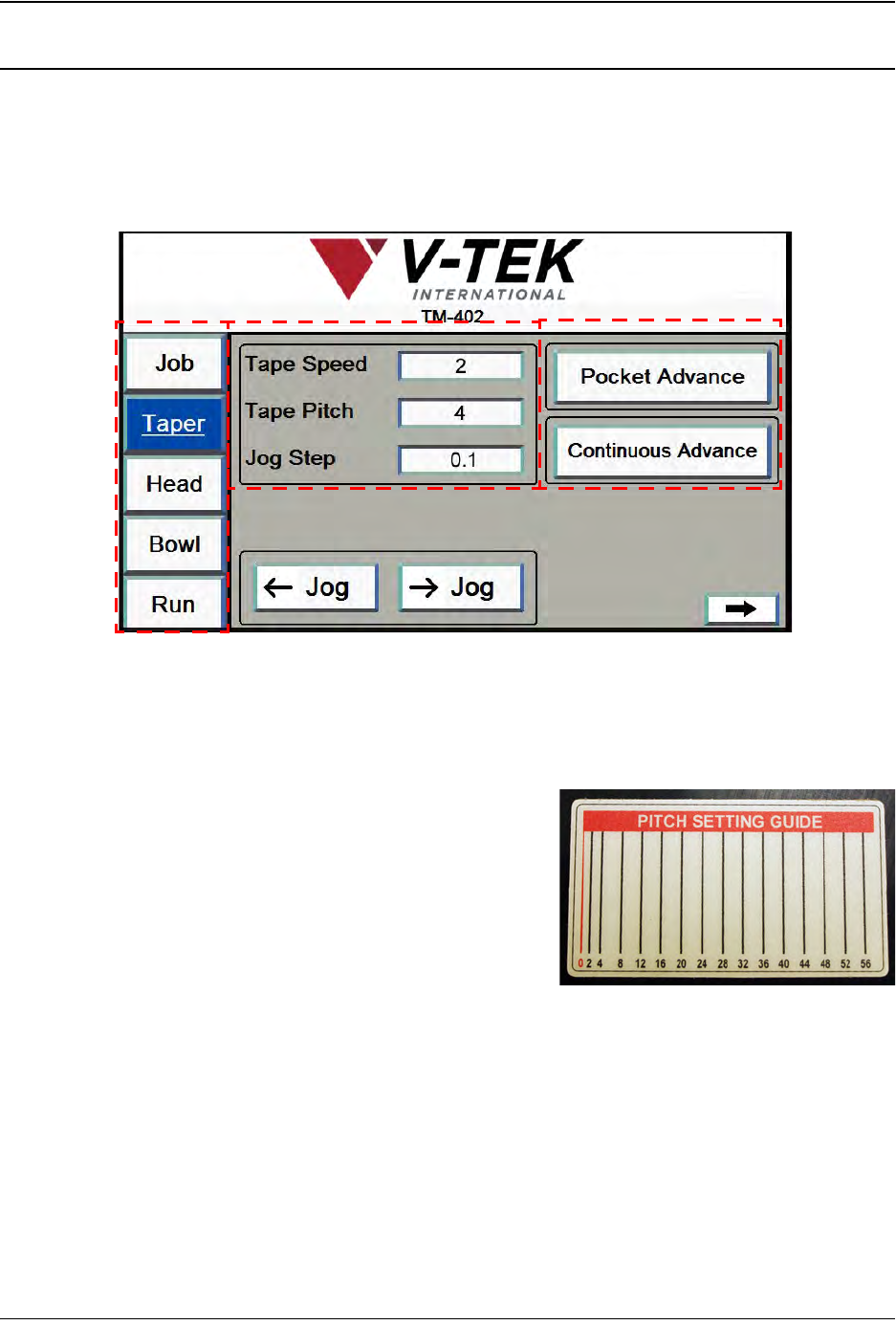

1. The first screen of the Taper Tab is shown below.
A. Press any tab in the Tab Menu to open that tab window.
B. Tape Speed is a percentage of the maximum velocity the carrier tape can be
advanced at. It can be set between 1-10.
Tape Pitch is determined by the carrier
tape selected. Use the Pitch Setting Guide
on the taper to determine the correct pitch.
Jog Step sets the distance in millimeters
the carrier tape will move forward or back-
ward each time a Jog button is pressed.
Note: The Jog Step field requires the value to be
entered in the following format: XX.XX. (i.e. 60.00).
C. The Jog buttons in the Index Settings section jog the tape forward or backward
along the Taper Track.
The Pocket Advance button advances the tape one pocket at a time. The speed
at which the tape advances is set in the Tape Speed field.
A
B
C
Taper Screen 1
